Overview

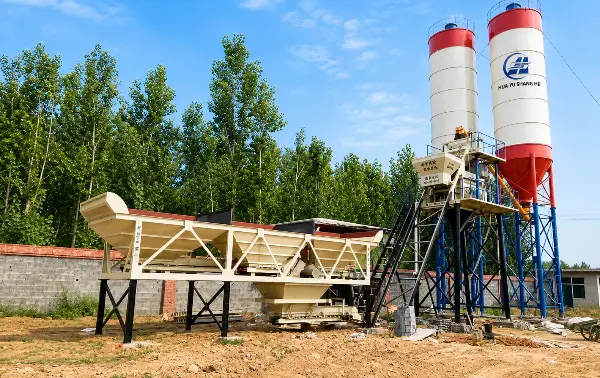

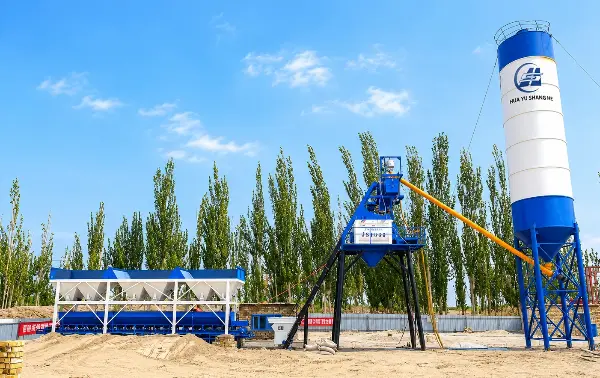

The HZS50 concrete batching plant is a medium-sized stationary concrete mixing plant designed for commercial concrete production and medium to large construction projects.
Equipped with a JS1000 twin shaft concrete mixer and automatic batching system, the HZS50 batching plant delivers stable performance, high mixing efficiency, and accurate concrete production.
With reliable operation, modular structure, and convenient maintenance, this batching plant is widely used for ready mix concrete production, road construction, bridge engineering, and infrastructure projects.
Why Choose Us
Equipped with JS1000 twin shaft mixer for fast and uniform concrete mixing.
Equipped with an intelligent PLC control system for automatic batching, mixing, monitoring, and data management. Easy operation reduces labor costs and improves productivity.
Intelligent control system with automatic/manual operation modes.
Strong steel structure designed for long-term continuous operation.
Modular design reduces installation time and simplifies maintenance.
Stable operation suitable for commercial concrete production.
Parameter
| Item | HZS50 |
| Theoretical Productivity | 50 m³/h |
| Mixer Model | JS1000 Twin Shaft Mixer |
| Mixer Capacity | 1000 L |
| Batching Machine | PLD1600 |
| No. of Storage Bins | 2/3/4 |
| Cement Silo | Optional |
| Aggregate Weighing Accuracy | ±2% |
| Cement Weighing Accuracy | ±1% |
| Water Weighing Accuracy | ±1% |
| Additive Weighing Accuracy | ±1% |
| Installation Type | Stationary |
Main Components
JS1000 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD1600 Aggregate Batching Machine
Accurate aggregate weighing system ensures stable concrete ratio.
PLC Intelligent Control System
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo & Screw Conveyor
Optional storage capacities available based on project demand.
Applications
The HZS50 concrete batching plant is widely used for:
- Commercial concrete production
- Ready mix concrete plants
- Road and highway construction
- Bridge engineering projects
- Building construction
- Infrastructure projects
- Precast concrete production
Optional Configuration
- Bolted Cement Silo
- Screw Conveyor
- Dust Collector
- Ice Cooling System
- Additive Dosing System
- Wheel Loader
- Containerized Design
- Environmental Protection System
Project Cases
HZS50 Concrete Batching Plant in Romania
“The HZS50 batching plant runs very smoothly and the mixing quality is excellent. Installation was fast, and the control system is very user-friendly. It helped us improve production efficiency significantly.” — Customer from Romania
HZS50 Concrete Batching Plant in South Africa
“The batching plant performs reliably every day with very low downtime. The automatic control system is easy to use, and the concrete quality fully meets our project requirements. We are satisfied with both the machine quality and after-sales service.” — Customer from South Africa
FAQ
The standard HZS50 plant uses a Skip Hoist (Hoisting Bucket) system to feed aggregates into the mixer.
Advantages: It features a highly compact footprint, lower initial investment, and a simpler overall structure, making it ideal for small-to-medium project sites with limited space.
Note: If your client specifically requires continuous high-volume production or a belt conveyor layout, it is usually categorized as an HZS60 plant.
Yes, industrial B2B configurations are highly adaptable:
Silos: Bolt-type cement silos 50T, 100T, or 200T are available for optimized container shipping.
Control System: Dual-language interfaces (e.g., English/Russian, English/Spanish, English/French) come standard with smart PLC batching records.
Voltage/Frequency: Motors can be customized to match local grids 380V/415V/440V at 50Hz or 60Hz.
Normally, installation and commissioning take about 7–15 days depending on local site conditions and equipment configuration.
Yes. Overseas engineer support, installation guidance, operator training, and after-sales technical support are available.uration and layout can be customized according to project requirements.
