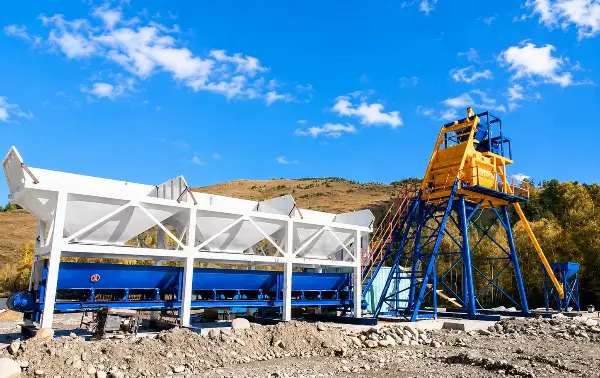

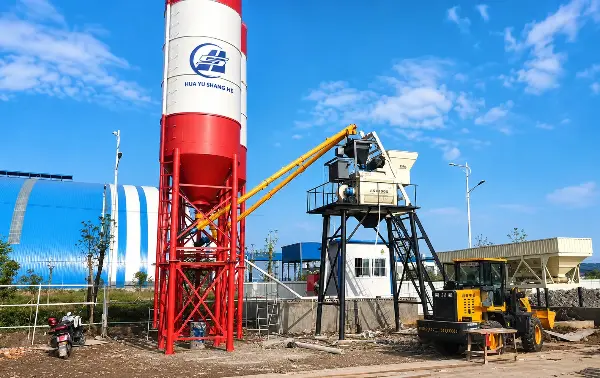

HZS75 Concrete Batching Plant for Efficient Commercial Concrete Production
The HZS75 Concrete Batching Plant is a high-efficiency stationary concrete mixing plant designed for medium to large construction projects, commercial concrete production, road construction, bridge engineering, and infrastructure development. With an output capacity of 75m³/h, this model combines stable performance, precise weighing, automatic control, and durable structure to meet continuous concrete production demands.
Our HZS75 batching plant is widely exported to Asia, Africa, South America, the Middle East, and Eastern Europe, helping customers improve production efficiency while reducing operating costs.
Why Choose Us
The HZS75 batching plant adopts a JS1500 twin shaft concrete mixer with strong mixing power and fast discharge speed, ensuring uniform concrete quality and stable output.
Electronic weighing system ensures precise batching and stable concrete quality.
The whole plant uses heavy-duty steel structure with strong stability and long service life, suitable for continuous commercial concrete production.
Advanced electronic weighing system guarantees precise batching of aggregates, cement, water, and additives, reducing material waste and improving concrete consistency.
The HZS75 concrete batching plant can be customized according to project requirements including: Cement silo capacity, Screw conveyor, Aggregate feeding method, Environmental protection system, Ice/water cooling system, Dust collection system.
Modular structure design allows faster installation, transportation, and maintenance, reducing project downtime.
Parameter
| Item | HZS75 |
| Theoretical Productivity | 75 m³/h |
| Mixer Model | JS1500 Twin Shaft Mixer |
| Mixer Capacity | 1500 L |
| Batching Machine | PLD2400 |
| Aggregate Feeding Type | Skip Hoist |
| Aggregate Bin Capacity | 3/4 Bins |
| Cement Silo | Optional 50T / 100T / 200T |
| Aggregate Weighing Accuracy | ±2% |
| Cement Weighing Accuracy | ±1% |
| Water Weighing Accuracy | ±1% |
| Additive Weighing Accuracy | ±1% |
| Installation Type | Stationary |
Main Components
JS1500 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD2400 Aggregate Batching Machine
Accurate aggregate weighing system ensures stable concrete ratio.
PLC Intelligent Control System
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo & Screw Conveyor
Optional storage capacities available based on project demand.
Applications
The HZS75 stationary concrete batching plant is widely used in:
- Commercial concrete production
- Road construction projects
- Bridge construction
- Building construction
- Railway projects
- Airport infrastructure
- Water conservancy engineering
Why Buy From Us
- Factory Direct Supply
- Competitive Price
- Strict Quality Inspection
- Fast Delivery
- Overseas Installation Support
- Professional Technical Team
- Spare Parts Support
- 24/7 After-Sales Service
Project Cases
HZS75 Concrete Batching Plant in Malaysia
“The HZS75 batching plant works very efficiently and produces high-quality concrete consistently. The automatic control system is easy to use, and the installation support from the engineering team was very professional.” — Customer from Malaysia
HZS75 Concrete Batching Plant in Saudi Arabia
“The batching plant has been running smoothly since installation. The equipment quality is excellent, and the production capacity fully meets our project demands. We are satisfied with both the machine performance and after-sales service.” — Customer from Saudi Arabia
FAQ
The defining feature of the HZS75 is its lifting hopper. Instead of a long, inclined conveyor belt stretching across the yard, the aggregated materials drop directly from the batching machine into a heavy-duty bucket, which is pulled vertically up an inclined track to discharge into the mixer.
Footprint Advantage: It requires significantly less land area compared to a belt-fed HZS60 or HZS90 plant.
Investment Profile: Lower structural material costs make the initial capital expenditure more economical than belt-fed alternatives of a similar capacity.
Speed Consideration: While highly compact, a skip hoist operates on a start-stop mechanical cycle. It cannot pre-load materials simultaneously in a continuous stream quite like a belt conveyor.
The standard configuration of an HZS75 (including the main structural tower, JS1500 mixer, PLD2400 batcher, control cabin, and screw conveyors) can be efficiently dismantled and packed into four to five 40ft High Cube (40HQ) containers.
Yes. The HZS75 is specifically designed for permanent and semi-permanent commercial ready-mix concrete production. It is widely operated by ready-mix producers, large contractors, and precast concrete manufacturers as a primary production asset. The structural frame and major components are engineered for a minimum service life of 15–20 years with proper maintenance.
Standard production and delivery lead time is 35–50 working days from order confirmation and deposit receipt. Lead time varies with current production schedules, configuration complexity, and third-party component availability. Contact us early in your project planning to confirm availability and secure your production slot.
