HZS90 Concrete Batching Plant for Commercial & Construction Projects
The HZS90 Concrete Batching Plant is designed for commercial concrete production, road construction, bridge projects, precast factories, and large-scale infrastructure developments. Equipped with a high-performance twin-shaft mixer and an intelligent PLC control system, it ensures accurate batching, efficient mixing, and continuous operation.
With over 40 years of manufacturing experience, we provide customized batching plant solutions, professional installation guidance, and global after-sales support.
Why Choose Us
The HZS90 batching plant can produce up to 90 cubic meters of concrete per hour, making it ideal for medium and large construction projects that require continuous concrete supply.
The plant is equipped with a JS1500 Twin Shaft Concrete Mixer, ensuring: Uniform concrete mixing, Short mixing cycle, High mixing efficiency, Suitable for various concrete grades.
Advanced electronic weighing systems provide precise measurement of: Aggregates, Cement, Water, Additives. Batching accuracy helps improve concrete quality while reducing material waste.
The intelligent control system offers: Automatic production management, Real-time monitoring, Production data storage, Error diagnosis and alarm system. Operators can easily control the entire production process from a centralized control room.
Manufactured using high-quality steel and premium components, the HZS90 batching plant offers: Long service life, Stable operation, Low maintenance cost, Excellent reliability in harsh environments.
Professional engineers are available for: Installation guidance, Commissioning, Operator training, Maintenance support.
Parameter
| Item | HZS90 |
| Theoretical Productivity | 90 m³/h |
| Mixer Model | JS1500 Twin Shaft Mixer |
| Mixer Capacity | 1500 L |
| Batching Machine | PLD2400 |
| Aggregate Feeding Type | Belt Conveyor |
| Aggregate Bin Capacity | 3-5 Bins Optional |
| Cement Silo | 100T / 150T / 200T Optional |
| Aggregate Weighing Accuracy | ±2% |
| Cement Weighing Accuracy | ±1% |
| Water Weighing Accuracy | ±1% |
| Additive Weighing Accuracy | ±1% |
| Application | Commercial Concrete & Engineering Projects |
Main Components

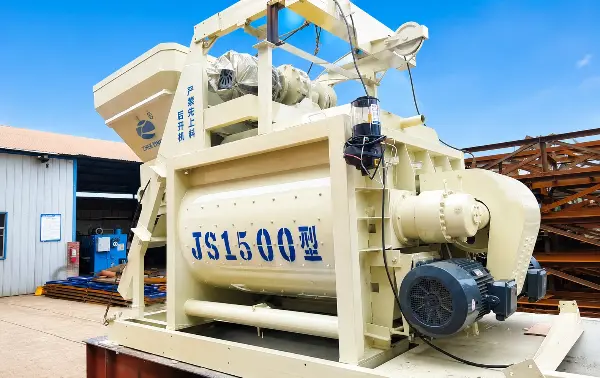

JS1500 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.

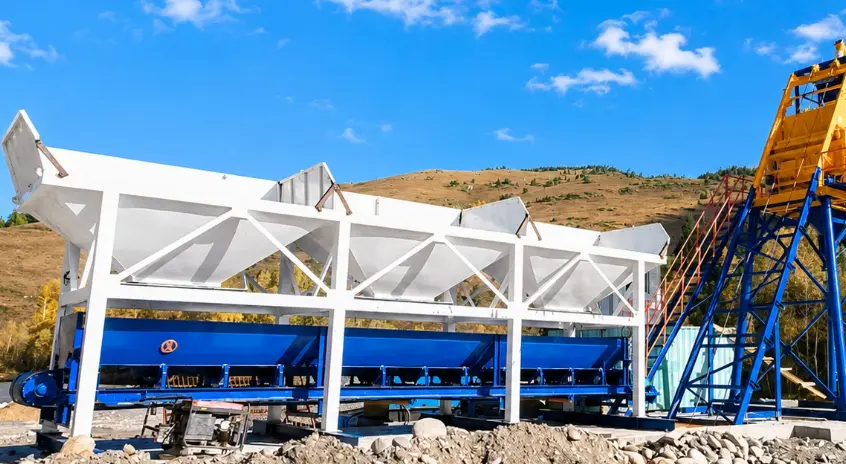

PLD2400 Aggregate Batching Machine
Accurate aggregate weighing system ensures stable concrete ratio.
PLC Intelligent Control System
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo & Screw Conveyor
Optional storage capacities available based on project demand.
Applications
The HZS90 Concrete Batching Plant is widely used in:
Commercial Concrete Production
Suitable for ready-mix concrete suppliers requiring stable daily output.
Road Construction
Provides continuous concrete supply for highways, municipal roads, and pavement projects.
Bridge Construction
Ensures high-strength concrete production for bridge foundations and structures.
Building Projects
Ideal for residential, commercial, and industrial construction.
Infrastructure Projects
Widely used in:
- Airports
- Railways
- Water conservancy projects
- Government construction projects
Why Buy From Us
1. Factory Direct Price
No middleman costs, ensuring competitive pricing and higher return on investment.
2. Customized Configuration
We provide customized solutions based on:
- Project requirements
- Production capacity
- Site conditions
- Budget
3. Fast Delivery
Standard models available for quick production and shipment.
4. Spare Parts Supply
Long-term spare parts support ensures stable plant operation.

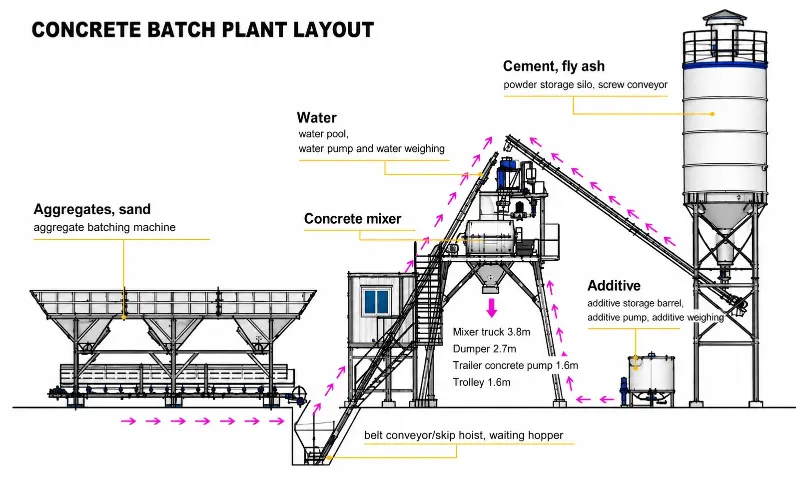

Working Process
- Aggregates are transported by the batching machine.
- Materials are conveyed through the belt conveyor.
- Cement, water, and additives are accurately weighed.
- All materials enter the JS1500 mixer.
- Concrete is mixed evenly and discharged.
- Finished concrete is loaded directly into mixer trucks.
The entire process is automatically controlled to improve productivity and reduce labor costs.
Project Cases

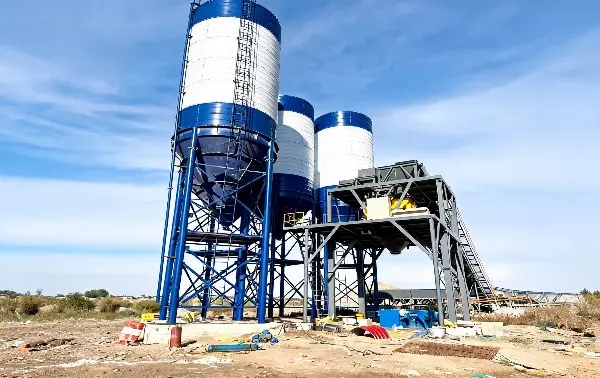

HZS90 Concrete Batching Plant in Kazakhstan
“The HZS90 batching plant has performed very well since installation. The automatic control system is easy to operate, and the mixing quality is excellent. Even in harsh weather conditions, the plant runs reliably and helps us meet our project schedule.” — Customer from Kazakhstan

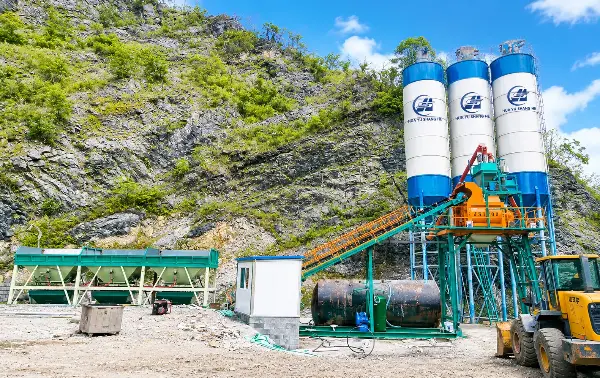

HZS90 Concrete Batching Plant in Ecuador
“We are very satisfied with the performance of the HZS90 concrete batching plant. The equipment is durable, easy to maintain, and delivers consistent concrete quality. The supplier provided professional technical support throughout installation and commissioning.” — Customer from Ecuador
FAQ
Both plants use a JS1500 twin-shaft mixer (1.5 m³ output per batch), but their feeding logic creates a major difference in hourly capacity:
HZS75 (Skip Hoist): The mixer has to wait for the lifting bucket to travel down, collect aggregates, and travel back up. The mixing cycle takes roughly 72 seconds.
HZS90 (Belt + Waiting Hopper): While the mixer is busy processing the current batch, the conveyor belt is already filling the waiting hopper directly above it. The moment the mixer discharges, the waiting hopper drops the next batch instantly. This reduces the cycle time to 60 seconds or less.
Given the high continuous volume, component wear scales up rapidly. Daily maintenance must prioritize:
Mixer Shaft End Seals: The JS1500 relies heavily on continuous grease pressure to prevent abrasive cement slurry from cutting into the main bearings. The automated lubrication pump must remain clean and full.
Conveyor Belt Tensioning: Misalignment of the long inclined belt causes side-wear and material spillage. Check tracking daily.
Pneumatic Discharge Gates: The batching doors and mixer discharge gate operate hundreds of times a day via pneumatic cylinders. The air compressor, moisture separators, and line lubricators need daily drainage and inspection.
Dismantling a standard HZS90 plant for international shipping requires extensive logistics planning.
The basic plant (main frame tower, JS1500 mixer, conveyor framework, PLD2400 batcher, and basic hardware) fits into five to six 40ft High Cube (40HQ) containers.
Additional Cargo: Bulk cement silos (typically 100T or 150T capacity) and their corresponding screw conveyors add to the container count. Choosing bolted-type silos allows them to pack flat inside standard containers, preventing the high costs of breakbulk shipping.
Price is determined by full plant configuration — aggregate bin count and hopper capacity, cement silo diameter, height, and quantity, SCM weighing systems, control system level, admixture dosing configuration, climate adaptation packages, voltage and frequency specification, and destination port all affect the final cost. We manufacture and sell factory-direct with no distributor or agent markup. Request a detailed quote and receive full itemized pricing within 2 hours on business days.
