Overview
Easy Transportation, Fast Installation & Long Service Life – Store More Cement. Save Shipping Costs. Build Faster.
Our Bolted Cement Silos are designed for convenient transportation, quick assembly, and reliable cement storage. Compared with welded silos, bolted silos can be packed into containers, greatly reducing shipping costs while making them ideal for overseas construction projects and concrete batching plants.
Whether you need a 50-ton, 100-ton, 200-ton, 300-ton, or customized cement silo, we provide durable, corrosion-resistant solutions with factory-direct pricing and worldwide delivery.
✔ Factory Direct Price
✔ Modular Bolted Structure
✔ Fast On-site Installation
✔ Low Shipping Cost
✔ Custom Capacity Available
Why Choose Us
The modular panel design allows the silo to be packed into standard shipping containers, reducing freight costs significantly compared with welded silos.
All components are prefabricated and connected with high-strength bolts, allowing quick assembly with minimal labor.
Manufactured from high-quality steel plates with precision laser cutting and automatic welding technology for excellent structural strength.
Professional sealing strips prevent moisture from entering, keeping cement dry and maintaining material quality.
Sandblasted surface treatment with premium epoxy primer and polyurethane paint provides long-lasting protection in harsh environments.
Available from 50T to 1000T, suitable for various construction and industrial applications.

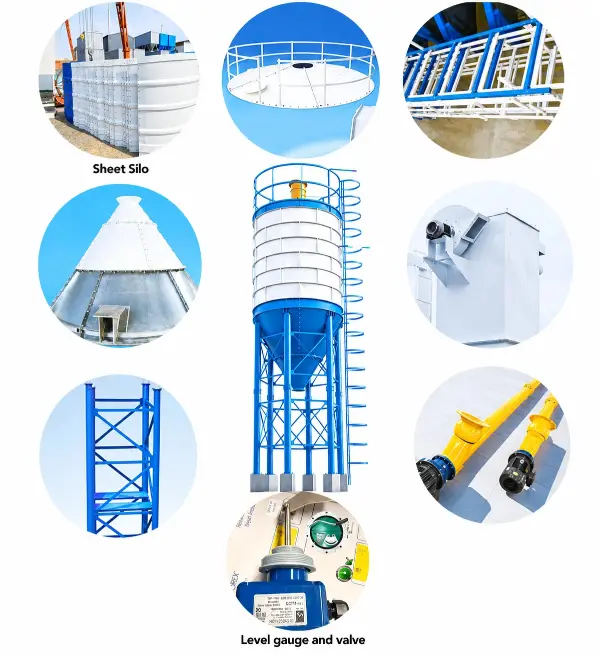

Main Components
- Electrical Control System (Optional)
- Silo Body
- Supporting Legs
- Roof Structure
- Dust Collector
- Pressure Relief Valve
- Level Indicator
- Cement Screw Conveyor
- Butterfly Valve
- Fluidization System
Applications
Our bolted cement silos are widely used in:
- Concrete Batching Plants
- Ready Mix Concrete Plants
- Road Construction
- Bridge Construction
- Mining Projects
- Dry Mortar Plants
- Precast Concrete Factories
- Infrastructure Projects
- Large Commercial Construction
- Industrial Material Storage
Advantages
1. Lower Shipping Cost
The knock-down design allows multiple silo sets to fit inside containers, reducing international freight expenses.
2. Flexible Capacity Expansion
Additional silo sections can be added according to project requirements.
3. Easy Maintenance
Individual panels can be replaced without dismantling the entire silo.
4. Reliable Material Storage
Designed with waterproof sealing and efficient dust collection to minimize material loss.
5. Long Service Life
Heavy-duty steel construction ensures stable performance even under demanding working conditions.
Technical Specifications
| Capacity | Diameter (m) | Pieces Each Layer | Weight (Ton) | Silo Body Height (m) | Layers of Silo Body |
|---|---|---|---|---|---|
| 50T | 3.16 | 4 | 4.5T | 4.26 | 3 |
| 100T | 3.16 | 4 | 6T | 8.7 | 6 |
| 150T | 3.16 | 4 | 9T | 13 | 9 |
| 200T | 4 | 5 | 12T | 11.3 | 8 |
| 200T (Alt) | 4.5 | 6 | 12T | 8.7 | 6 |
| 300T | 5.3 | 8 | 17T | 8.7 | 6 |
| 500T | 6.8 | 8 | 21T | 7.3 | 8 |
| 600T | 6.8 | 8 | 28T | 8.7 | 6 |
| 800T | 8 | 10 | 43T | 10.1 | 7 |
| 1000T | 8 | 10 | 56T | 13.2 | 9 |
Optional Configurations
- Cement Screw Conveyor
- Dust Collection System
- High/Low Level Indicator
- Pressure Relief Valve
- Air Fluidization System
- Safety Ladder & Guardrail
- Weighing System
- PLC Intelligent Control
Our Service
- Lifetime Technical Support
- Professional Pre-sales Consultation
- Free Plant Layout Design
- Fast Manufacturing
- Strict Quality Inspection Before Shipment
- Container Loading Optimization
- Installation Guidance
- Spare Parts Supply
Project Cases
Kenya – 100T Bolted Cement Silo for Ready Mix Plant
A Kenyan concrete producer installed a 100-ton bolted cement silo for a commercial batching plant. The modular design reduced shipping costs and enabled installation within just a few days, improving cement storage efficiency and production capacity.
Philippines – 200T Cement Storage Solution
A construction contractor in the Philippines selected two 200T bolted silos for an infrastructure project. The silos operated reliably in humid conditions, providing stable cement supply throughout the project.
FAQ
Standard capacities include 50T, 100T, 150T, 200T, 300T, 500T, and 1000T. Custom sizes are also available.
Yes. The modular bolted design is specifically developed for container transportation, significantly reducing shipping costs.
Absolutely. We can customize capacity, color, logo, discharge height, electrical system, and accessories according to your project.
Generally 15–30 working days, depending on capacity and order quantity.
Yes. We offer installation manuals, videos, online technical support, and overseas engineer service when needed.
