Overview
Factory Direct Horizontal Cement Silo Manufacturer
Reliable Horizontal Cement Silos for Mobile Concrete Batching Plants
Our Horizontal Cement Silos are designed for easy transportation, quick installation, and efficient cement storage. Unlike traditional vertical silos, horizontal silos require no concrete foundation, making them the ideal solution for mobile concrete batching plants, temporary construction sites, road projects, mining operations, and remote job sites.
With capacities ranging from 20T to 100T, our silos provide stable material storage, fast discharge, low maintenance, and long service life.
Wide Capacity Options
Available in:
- 20 Ton
- 30 Ton
- 40 Ton
- 50 Ton
- 60 Ton
- 80 Ton
- 100 Ton
Custom sizes are available.
Why Choose Us
Simply place the silo on a flat surface, reducing installation time and civil construction costs.
Designed for container shipping or trailer transport, minimizing logistics expenses.
Complete installation in just a few hours with minimal labor.
Fully enclosed structure prevents moisture, dust, and material loss.
Compatible with screw conveyors, bulk cement trucks, and pneumatic conveying systems.
Simple mechanical structure with durable components for long-term operation.

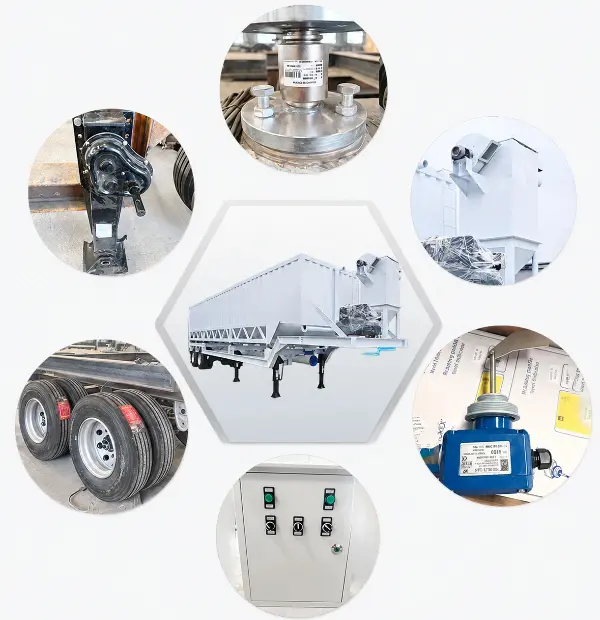

Main Components
- Silo Body: Heavy-duty steel structure (Q235B/Q355), anti-corrosion treated for long service life.
- Discharge System: Smooth and stable cement outlet, compatible with screw conveyor.
- Screw Conveyor (Optional): Efficient cement transfer to batching plant.
- Dust Collector: Pulse jet filter system to reduce dust pollution.
- Level Indicators: High/low sensors for material monitoring.
- Safety System: Pressure relief valve and safety access design.
- Feeding System: Fast, dust-free loading from bulk cement trucks.
- Support Frame: Stable horizontal structure, no foundation required.
Applications
Our horizontal cement silos are widely used in:
- Mobile Concrete Batching Plants
- Ready Mix Concrete Production
- Road Construction
- Bridge Projects
- Railway Construction
- Mining Sites
- Tunnel Engineering
- Precast Concrete Plants
- Remote Construction Sites
Suitable for storing:
- Cement
- Fly Ash
- Lime Powder
- Mineral Powder
- Dry Bulk Materials
Advantages
1. Strong Steel Structure
Manufactured using high-quality Q235B or Q355 steel with precision welding for maximum durability.
2. Large Storage Capacity
Optimized internal design ensures smooth material flow with minimal residue.
3. Efficient Dust Collection
Equipped with a pulse jet dust collector to reduce dust emissions and maintain a clean working environment.
4. Reliable Safety System
Includes:
- Pressure Relief Valve
- High & Low Level Sensors
- Maintenance Platform
- Safety Ladder
5. Smooth Material Discharge
Works perfectly with screw conveyors for continuous and stable cement feeding.
6. Corrosion Protection
Sandblasted surface with premium anti-corrosion paint extends service life in harsh environments.
Technical Specifications
| Item | Specification |
|---|---|
| Capacity | 20–100 Tons |
| Type | Horizontal Cement Silo |
| Material | Q235B / Q355 Steel |
| Installation | No Concrete Foundation Required |
| Feeding Method | Bulk Cement Truck |
| Discharge | Screw Conveyor |
| Dust Filter | Pulse Jet Dust Collector |
| Level Indicator | Optional |
| Safety Valve | Included |
| Finish | Anti-corrosion Paint |
Optional Configurations
- Screw Conveyor
- Cement Weighing System
- Pulse Jet Dust Collector
- Air Compressor
- Butterfly Valve
- Level Indicator
- Pressure Relief Valve
- PLC Control System
- Cement Feeding Pipe
Horizontal Silo VS Vertical Silo
| Horizontal Silo | Vertical Silo |
|---|---|
| No foundation required | Requires concrete foundation |
| Fast installation | Longer installation time |
| Easy transportation | More transport restrictions |
| Lower installation cost | Higher civil engineering cost |
| Suitable for mobile projects | Better for permanent plants |
| Easy relocation | Difficult to move |
Quality Manufacturing
Every horizontal cement silo is manufactured under strict quality control.
Our production process includes:
- CNC Cutting
- Automatic Welding
- Sandblasting
- Precision Assembly
- Pressure Testing
- Factory Inspection
Every unit is tested before delivery.

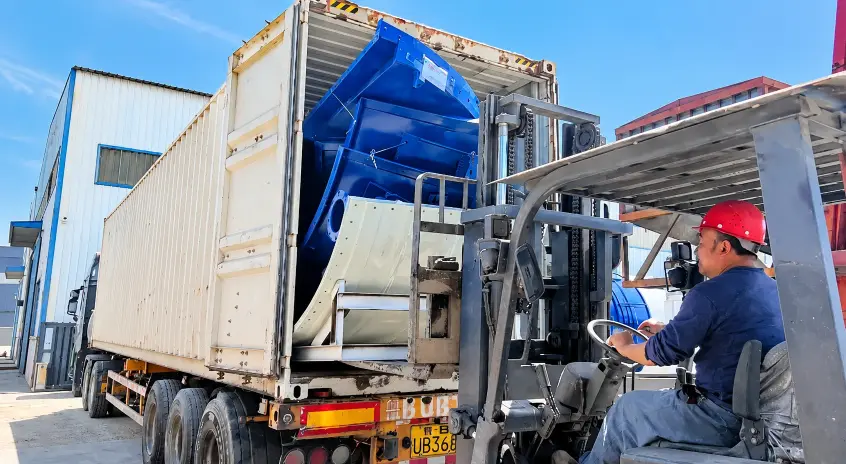

Packaging & Shipping
We provide:
- Container Shipping
- Flat Rack Shipping
- Secure Steel Frame Packaging
- Export Standard Protection
Professional loading reduces freight costs and ensures safe transportation worldwide.
Our Service
- Lifetime Technical Support
- Professional Pre-sales Consultation
- Free Plant Layout Design
- Fast Manufacturing
- Strict Quality Inspection Before Shipment
- Container Loading Optimization
- Installation Guidance
- Spare Parts Supply
Project Cases
Ecuador – Mobile Concrete Plant
A 50-ton horizontal cement silo was supplied for a road construction project in Ecuador. The customer completed installation within one day, reducing setup time and improving concrete production efficiency.
Ghana – Ready-Mix Concrete Plant Project
A 60-ton Horizontal Cement Silo was supplied to a ready-mix concrete plant in Ghana. Its foundation-free design enabled rapid installation and reliable cement storage, helping the customer reduce setup time and improve overall production efficiency.
FAQ
Suitable for cement, fly ash, lime powder, and other dry powders.
Absolutely. We can customize capacity, color, logo, discharge height, electrical system, and accessories according to your project.
Generally 15–30 working days, depending on capacity and order quantity.
Yes. We offer installation manuals, videos, online technical support, and overseas engineer service when needed.
