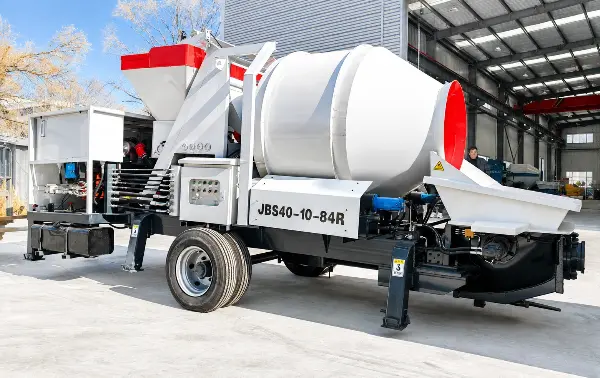

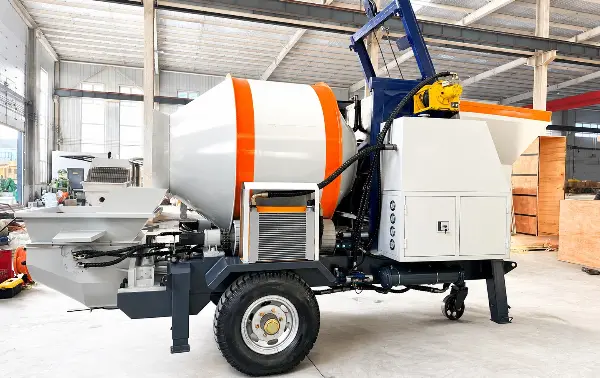

High Efficiency Concrete Mixing & Pumping Machine – One Machine for Mixing & Pumping
Looking for a reliable and cost-effective solution for concrete construction? Our concrete mixer pump combines mixing and pumping in one machine, enabling fast, continuous, and efficient concrete placement on-site.
Designed for small to medium construction projects, this machine significantly reduces labor cost and improves working efficiency, especially in rural buildings, road projects, bridge foundations, and housing construction.
Why Choose Us
No need for separate mixer and pump. The machine automatically mixes concrete and pumps it directly to the pouring site.
One machine replaces 5–8 workers, reducing construction time by up to 50%.
Stable pumping system ensures smooth delivery even in long-distance or high-rise conditions.
Hydraulic system + simple control panel makes it easy to operate even for beginners.
Widely used in residential housing, rural construction, road and bridge projects, as well as tunnel and foundation works.
Key parts such as the mixing drum, S-valve, and pumping system are made of high-quality wear-resistant materials, ensuring long service life, stable performance, and lower maintenance costs even under continuous heavy-duty working conditions.
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Technical Advantages
- High mixing efficiency forced mixer drum
- Hydraulic piston pumping system
- Diesel or electric engine options available
- Wear-resistant S-valve system for stable flow
- Continuous working capability for long-hour operation
- Compact design for easy transportation
Available Models
We provide different capacity options to match various construction requirements, from small housing projects to large infrastructure works:
- Small Capacity Models (35 m³/h) for rural housing projects and small-scale construction
- Medium Capacity Models (35–40 m³/h) for commercial buildings and medium construction projects
- High Output Models (45 m³/h) for infrastructure projects such as roads, bridges, and tunnels
Applications
Our concrete mixer pump is widely used in:
✔ House construction in rural and urban areas
✔ Road and pavement projects
✔ Bridge foundation pouring
✔ Small commercial building projects
✔ Remote construction sites without ready-mix supply
Technical Specifications
Diesel Concrete Mixer Pump
| Parameter | DJBT30.08.76 (Diesel Mixer Pump) | DJBT40.10.82 (Diesel Mixer Pump) | DJBT50.10.88 (Diesel Mixer Pump) | DJBT50.11.88 (Diesel Mixer Pump) |
|---|---|---|---|---|
| Main Hydraulic Pump (mlr) | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 |
| Delivery Cylinder (mm) | Wuxi 180×800 | Wuxi 180×800 | Wuxi 180×1000 | Wuxi 200×1000 |
| Hydraulic Oil Cylinder (mm) | Changsha 90×800 | Changsha 100×800 | Changsha 100×1000 | Changsha 110×1000 |
| Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine |
| Hydraulic Valve Group | Jining Taifeng | Jining Taifeng | Jining Taifeng | Jining Taifeng |
| PLC System | Omron / Siemens | Omron / Siemens | Omron / Siemens | Omron / Siemens |
| Electrical Components | Schneider / LS | Schneider / LS | Schneider / LS | Schneider / LS |
| Hydraulic Hoses | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture |
| Concrete Output (m³/h) | 35 | 38 | 43 | 45 |
| Pumping Height / Distance (m) | 50 / 200 | 60 / 250 | 60 / 250 | 80 / 300 |
| Outlet Pressure (MPa) | 8 | 10 | 10 | 11 |
| Rated Speed (rpm) | 1800 | 1800 | 1800 | 2200 |
| Max Aggregate Size (mm) | 35 | 35 | 35 | 35 |
| Hopper Capacity & Loading Height (m³/mm) | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 |
| Pipe Diameter (mm) | Ø125 | Ø125 | Ø125 | Ø125 |
| Concrete Slump (mm) | 160–220 | |||
| Container Size (Integral) (mm) | 4500 × 2100 × 2300 | |||
| Container Size (Split) (mm) | 5600 × 2100 × 2300 | |||
| Total Weight (kg) | 5200 | 5300 | 5400 | 5500 |
| Mixer Model (L) | 450 | 450 | 450 | 450 |
| Shipping | 20ft Container | 20ft Container | 20ft Container | 20ft Container |
Electric Concrete Mixer Pump
| Item | Unit | Parameters (JBS40-10-45) |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 40 |
| Feeding Capacity (Mixer) | L | 500 |
| Discharging Capacity (Mixer) | L | 450 |
| Max. Concrete Pumping Pressure | MPa | 10 |
| Distribution Valve Type | – | S Tube Valve |
| Concrete Cylinder (Diameter × Stroke) | mm | Ø180 × 1000 |
| Hopper Capacity | L | 550 |
| Outlet Diameter | mm | Ø150 |
| Power System | ||
| Winding Motor Power | kW | 5.5 |
| Mixing Motor Power | kW | 4.5 |
| Water Pump Motor Power | kW | 0.55 |
| Total Rated Power | kW | 45 |
| Rated Speed | r/min | 1480 |
| Hydraulic System | ||
| Circuit Type | – | Open Loop System |
| Pumping System Pressure | MPa | 28 |
| Mixing System Pressure | MPa | 6–8 |
| Hydraulic Oil Tank Capacity | L | 370 |
| Max. Delivery Distance (Vertical / Horizontal) | m | 120 / 500 |
| Other Parameters | ||
| Max. Aggregate Size | mm | Stone: 40–50 |
| Concrete Delivery Pipe Diameter | mm | Ø125 |
| Overall Dimensions (L × W × H) | mm | 4200 × 2300 × 3150 |
| Total Weight | kg | 4500 |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Malaysia – Housing Project
A local contractor used our concrete mixer pump for residential building construction. The machine significantly improved concrete pouring efficiency and reduced labor costs while ensuring stable and continuous operation on-site.
UAE – Infrastructure Project
The equipment was used in a large-scale construction project, providing reliable concrete delivery for foundations and structural works. It ensured smooth pumping performance even under high-temperature working conditions.
FAQ
Our concrete mixer pump has a horizontal pumping distance of up to 300 meters and a vertical pumping height of up to 80 meters, depending on the model and concrete mix conditions. Customized solutions are also available for larger construction requirements.
Yes, the mixing and pumping functions can be operated separately. The machine is designed with an independent control system, allowing the operator to use the mixing function only, the pumping function only, or both functions together depending on the construction requirements.
The concrete mixer pump typically requires only 2–3 operators for full operation, including feeding, controlling, and placing the discharge hose. This significantly reduces labor demand compared to traditional separate mixing and pumping systems.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
