Overview
One Machine for Mixing + Pumping Concrete – Save Labor, Time & Cost

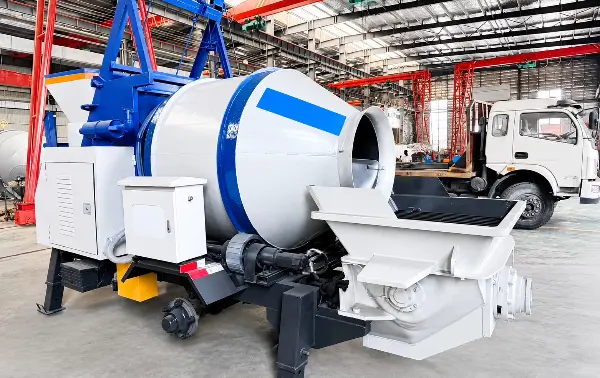

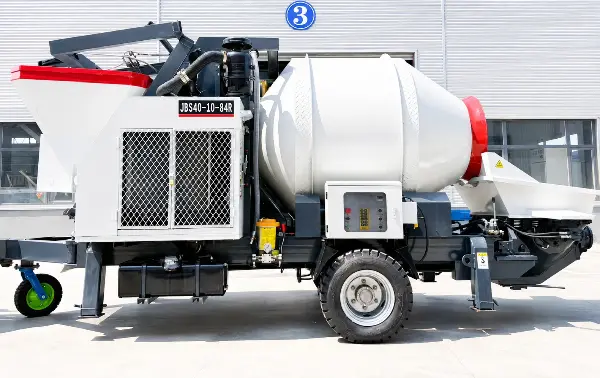

The Diesel Concrete Mixer Pump is an integrated machine that combines concrete mixing and pumping in one unit, specially designed for remote construction sites without stable electricity.
Powered by a reliable diesel engine, it ensures continuous operation in harsh working environments such as rural areas, mountains, tunnels, roads, bridges, and housing projects.
Key Advantages
No need for separate mixer and pump. The machine automatically mixes concrete and pumps it directly to the pouring site.
Suitable for remote or off-grid construction sites with stable performance under harsh conditions and reduced dependency on power supply.
Continuous concrete delivery with stable pressure output, effectively reducing construction waiting time and improving overall working efficiency.
Only 3–5 operators are required, significantly reducing manual handling and transportation costs.
Compatible with C15–C40 concrete, suitable for gravel, sand, and cement mixing, and capable of handling complex site conditions.
User-friendly control system with simple operation and easy daily maintenance, reducing downtime and training cost.
Components

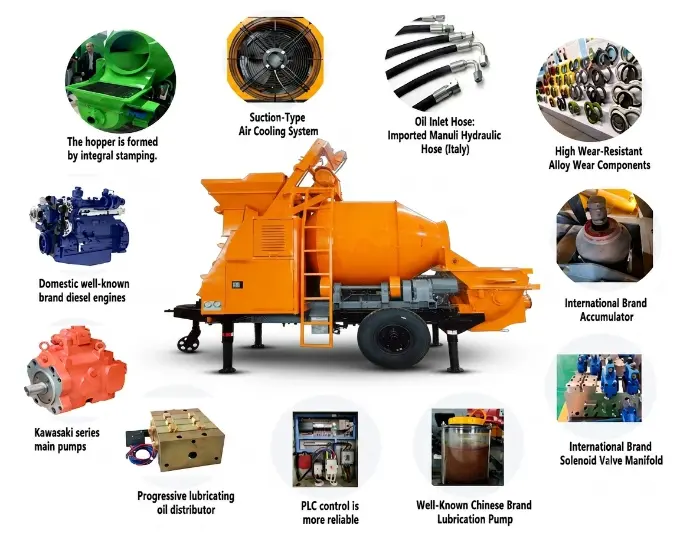

A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Available Models
We provide different capacity options to match various construction requirements, from small housing projects to large infrastructure works:
- Small Capacity Models (35 m³/h) for rural housing projects and small-scale construction
- Medium Capacity Models (35–40 m³/h) for commercial buildings and medium construction projects
- High Output Models (45 m³/h) for infrastructure projects such as roads, bridges, and tunnels
Applications
Our concrete mixer pump is widely used in:
- Small to medium commercial construction
- Residential building construction
- Rural housing projects
- Road and bridge construction
- Tunnel and slope projects
- Water conservancy projects
Technical Specifications
| Parameter | DJBT30.08.76 (Diesel Mixer Pump) | DJBT40.10.82 (Diesel Mixer Pump) | DJBT50.10.88 (Diesel Mixer Pump) | DJBT50.11.88 (Diesel Mixer Pump) |
|---|---|---|---|---|
| Main Hydraulic Pump (mlr) | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 |
| Delivery Cylinder (mm) | Wuxi 180×800 | Wuxi 180×800 | Wuxi 180×1000 | Wuxi 200×1000 |
| Hydraulic Oil Cylinder (mm) | Changsha 90×800 | Changsha 100×800 | Changsha 100×1000 | Changsha 110×1000 |
| Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine |
| Hydraulic Valve Group | Jining Taifeng | Jining Taifeng | Jining Taifeng | Jining Taifeng |
| PLC System | Omron / Siemens | Omron / Siemens | Omron / Siemens | Omron / Siemens |
| Electrical Components | Schneider / LS | Schneider / LS | Schneider / LS | Schneider / LS |
| Hydraulic Hoses | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture |
| Concrete Output (m³/h) | 35 | 38 | 43 | 45 |
| Pumping Height / Distance (m) | 50 / 200 | 60 / 250 | 60 / 250 | 80 / 300 |
| Outlet Pressure (MPa) | 8 | 10 | 10 | 11 |
| Rated Speed (rpm) | 1800 | 1800 | 1800 | 2200 |
| Max Aggregate Size (mm) | 35 | 35 | 35 | 35 |
| Hopper Capacity & Loading Height (m³/mm) | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 |
| Pipe Diameter (mm) | Ø125 | Ø125 | Ø125 | Ø125 |
| Concrete Slump (mm) | 160–220 | |||
| Container Size (Integral) (mm) | 4500 × 2100 × 2300 | |||
| Container Size (Split) (mm) | 5600 × 2100 × 2300 | |||
| Total Weight (kg) | 5200 | 5300 | 5400 | 5500 |
| Mixer Model (L) | 450 | 450 | 450 | 450 |
| Shipping | 20ft Container | 20ft Container | 20ft Container | 20ft Container |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Jamaica – Housing Project
A local contractor used our diesel concrete mixer pump for residential housing construction. The machine significantly improved pouring speed and reduced labor cost by more than 40%.
Nigeria – Rural Road Project
Used in remote road construction without stable electricity. The diesel system ensured continuous pumping and reliable performance in harsh working conditions.
FAQ
Our concrete mixer pump has a horizontal pumping distance of up to 300 meters and a vertical pumping height of up to 80 meters, depending on the model and concrete mix conditions. Customized solutions are also available for larger construction requirements.
Yes, the mixing and pumping functions can be operated separately. The machine is designed with an independent control system, allowing the operator to use the mixing function only, the pumping function only, or both functions together depending on the construction requirements.
The concrete mixer pump typically requires only 2–3 operators for full operation, including feeding, controlling, and placing the discharge hose. This significantly reduces labor demand compared to traditional separate mixing and pumping systems.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
