Overview
Efficient, Clean & Cost-Saving Concrete Solution

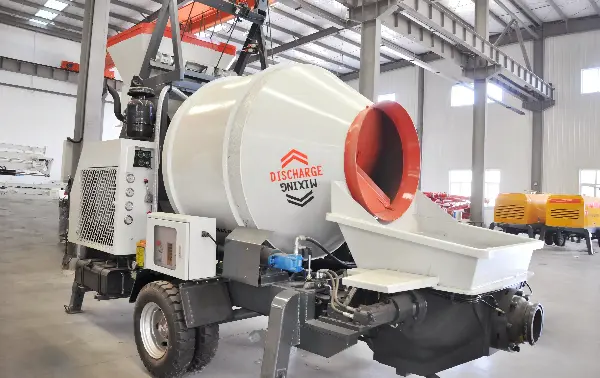

The Electric Concrete Mixer Pump combines concrete mixing and pumping in one compact machine, designed for modern construction sites that require stable performance, lower noise, and reduced fuel costs. It is widely used in residential buildings, small to medium construction projects, rural infrastructure, and urban development.
Key Advantages
Powered by electricity instead of diesel, this mixer pump significantly reduces fuel consumption and maintenance costs, making it ideal for long-term continuous work.
No need for separate mixer and pump systems. The machine completes feeding, mixing, and pumping automatically, saving labor and improving efficiency.
Advanced hydraulic system ensures smooth pumping with less blockage risk, suitable for long-distance and vertical concrete delivery.
Compared with diesel models, electric operation produces less noise and zero exhaust emissions—perfect for urban construction sites.
Key wearing parts are made of high-strength alloy materials, with a simple structure for easy maintenance and longer service life, reducing downtime on construction sites.
Only 2–3 operators are needed to run the whole system, reducing manpower costs significantly.

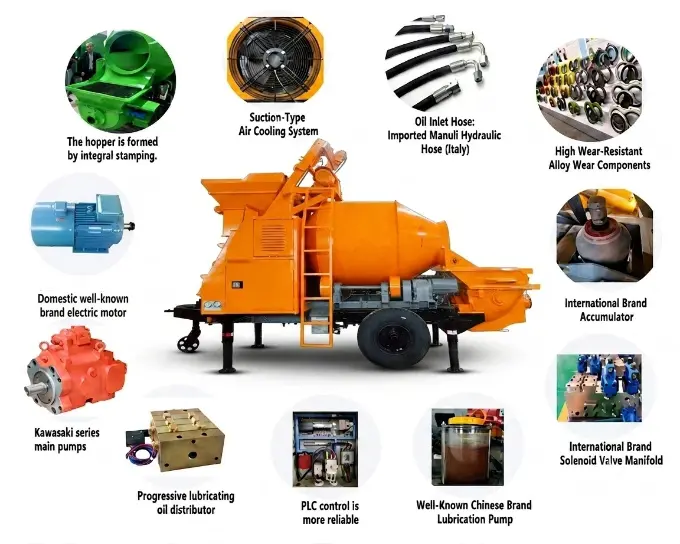

Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
Our concrete mixer pump is widely used in:
- Residential housing construction
- Small and medium building projects
- Rural road and bridge projects
- Urban renovation and infrastructure
- Factory and warehouse construction
Technical Specification
| Item | Unit | Parameters (JBS40-10-45) |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 40 |
| Feeding Capacity (Mixer) | L | 500 |
| Discharging Capacity (Mixer) | L | 450 |
| Max. Concrete Pumping Pressure | MPa | 10 |
| Distribution Valve Type | – | S Tube Valve |
| Concrete Cylinder (Diameter × Stroke) | mm | Ø180 × 1000 |
| Hopper Capacity | L | 550 |
| Outlet Diameter | mm | Ø150 |
| Power System | ||
| Winding Motor Power | kW | 5.5 |
| Mixing Motor Power | kW | 4.5 |
| Water Pump Motor Power | kW | 0.55 |
| Total Rated Power | kW | 45 |
| Rated Speed | r/min | 1480 |
| Hydraulic System | ||
| Circuit Type | – | Open Loop System |
| Pumping System Pressure | MPa | 28 |
| Mixing System Pressure | MPa | 6–8 |
| Hydraulic Oil Tank Capacity | L | 370 |
| Max. Delivery Distance (Vertical / Horizontal) | m | 120 / 500 |
| Other Parameters | ||
| Max. Aggregate Size | mm | Stone: 40–50 |
| Concrete Delivery Pipe Diameter | mm | Ø125 |
| Overall Dimensions (L × W × H) | mm | 4200 × 2300 × 3150 |
| Total Weight | kg | 4500 |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Philippines – Residential Housing Project
A local contractor used our electric mixer pump for multi-unit housing construction. The machine improved concrete pouring efficiency and reduced labor costs by over 35%.
Oman – Urban Infrastructure Project
Used in city road and drainage construction, the electric system provided stable performance with low maintenance requirements and reduced energy costs.
FAQ
Yes, the electric system supports stable long-time operation with proper cooling and maintenance.
It is quieter, cleaner, and easier to maintain when stable power is available.
The concrete mixer pump typically requires only 2–3 operators for full operation, including feeding, controlling, and placing the discharge hose. This significantly reduces labor demand compared to traditional separate mixing and pumping systems.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
