Overview
High-Performance Mobile Concrete Production for Large-Scale Projects

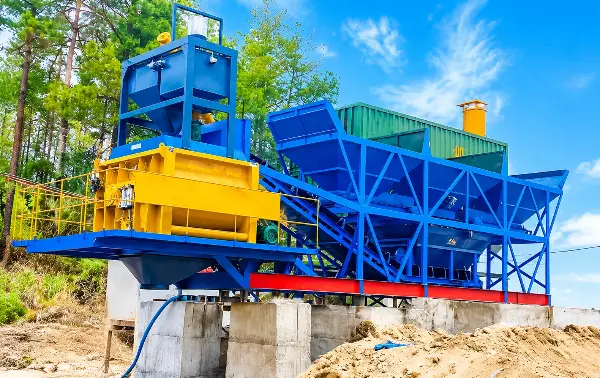

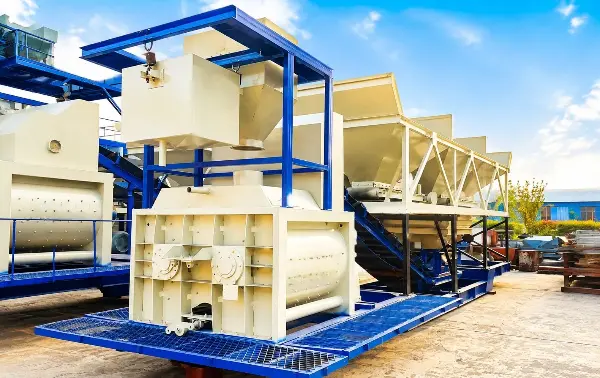

The YHZS120F Mobile Concrete Batching Plant is a high-capacity mobile concrete mixing solution designed for contractors, infrastructure developers, and ready-mix concrete suppliers. With a theoretical output of 120 m³/h, this plant combines the productivity of a stationary batching plant with the flexibility of a mobile unit, making it ideal for highways, bridges, railways, airports, mining sites, and large construction projects. The YHZS120F typically utilizes a JS2000 twin-shaft mixer and PLD3200 batching system to achieve efficient and consistent concrete production.
Why Choose Us
The modular mobile structure allows the entire plant to be transported easily. No complex foundation is required, significantly reducing installation costs and time.
Equipped with advanced sensors and control systems to ensure accurate measurement of aggregates, cement, water, and additives.
User-friendly PLC control with real-time monitoring, fault diagnostics, and data tracking. Operate efficiently with minimal labor.
Heavy-duty steel structure built to withstand harsh environments and continuous operation.
High-performance mixer ensures uniform mixing, improving concrete strength and quality.
We provide complete overseas project support, including installation guidance, operator training, spare parts supply, and technical assistance.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS120F |
| Theoretical Capacity | 120 m³/h |
| Mixer Model | JS2000 Twin Shaft Mixer (2.0m³ discharging volume) |
| Mixer Discharge Capacity | 2000 L |
| Mixer Charging Capacity | 3000 L |
| Aggregate Batching Machine | PLD3200 |
| Aggregate Bin Quantity | 2-4 Bins Optional |
| Feeding Method | Belt Conveyor |
| Discharging Height | 3.8 m / 4.2 m (Customizable) |
| Cement Silo | Optional 50T-300T+ |
| Control System | Fully Automatic PLC / Manual Overrides |
| Power Supply | Customizable based on region |
Customized configurations are available according to project requirements.
Main Components
Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
Aggregate Batching System
High-precision aggregate weighing, automatic batching operation, fast and efficient material feeding, accurate mix proportion control, easy integration with PLC control systems
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Fully enclosed structure for dust-free operation, stable and continuous material feeding, durable wear-resistant screw blades, easy installation and maintenance, suitable for cement, fly ash, and other powder materials
PLC Control Cabinet
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo
Optional storage capacities available based on project demand.
Mobile Plant VS Stationary Plant
| Feature | YHZS120F Mobile Plant | Stationary Plant |
|---|---|---|
| Mobility | Excellent | Fixed |
| Installation Time | Fast | Longer |
| Foundation Requirement | Minimal | Extensive |
| Relocation Cost | Low | High |
| Transportation Efficiency | High | Low |
| Temporary Projects | Ideal | Less Suitable |
| ROI Speed | Faster | Moderate |
Optional Configurations
Customize your batching plant according to project requirements:
Cement Silos
- 50T Cement Silo
- 100T Cement Silo
- 150T Cement Silo
- 200T Cement Silo
- Horizontal Cement Silo
Screw Conveyors
- LSY219
- LSY273
- LSY325
Additional Options
- Ice plant system
- Aggregate heating system
- Dust collection system
- Moisture monitoring system
- Remote monitoring system
Applications
The YHZS120F Mobile Concrete Batching Plant is designed for high-volume concrete production and rapid relocation, making it suitable for a wide range of construction and infrastructure projects.
1. Highway Construction
Supply large quantities of concrete for expressways, road widening projects, interchanges, and pavement construction.
2. Railway Projects
Ideal for high-speed railways, railway stations, track foundations, and railway infrastructure development.
3. Bridge Construction
Provides consistent, high-strength concrete for bridge foundations, piers, beams, and deck construction.
4. Airport Projects
Supports runway construction, taxiways, aprons, terminals, and airport expansion projects requiring continuous concrete supply.
5. Hydropower & Dam Construction
Suitable for large-scale water conservancy projects, dams, reservoirs, and hydropower stations located in remote areas.
6. Mining Operations
Delivers on-site concrete production for mining infrastructure, processing facilities, roads, and worker accommodations.
7. Commercial Concrete Production
An excellent solution for ready-mix concrete suppliers serving multiple construction sites within a region.
8. Industrial & Factory Construction
Supports the construction of manufacturing plants, warehouses, logistics centers, and industrial parks.
9. Residential & Commercial Buildings
Ideal for high-rise buildings, housing developments, shopping centers, and office complexes.
10. Remote Construction Sites
The mobile design allows easy transportation and quick setup in remote locations where permanent batching plants are impractical.
Project Cases
YHZS120F Mobile Concrete Batching Plant in Uzbekistan
“The YHZS120F mobile batching plant performed beyond our expectations. The production capacity was stable, the control system was easy to operate, and the relocation process was much faster than our previous stationary plant. This significantly improved our project efficiency.” — Project Manager, Uzbekistan
YHZS120F Mobile Concrete Batching Plant in Chile
“The YHZS120F has been operating reliably in challenging environmental conditions. Its mobility allowed us to move the plant closer to new work areas, saving both time and transportation costs. We are very satisfied with the equipment performance and after-sales support.” — Construction Director, Chile
Our Service
Before Sales
✔ Project consultation
✔ Site layout design
✔ Equipment selection
✔ Budget planning
During Production
✔ Manufacturing progress updates
✔ Quality inspection reports
✔ Factory testing
✔ Shipping arrangement
After Sales
✔ Installation guidance
✔ Operator training
✔ Spare parts support
✔ Online troubleshooting
✔ Lifetime technical assistance
FAQ
Yes. The YHZS120F Mobile Concrete Batching Plant can be fully customized to meet the technical standards, environmental conditions, and operational requirements of different countries and regions.
Yes, that is the biggest advantage. Unlike stationary plants that require weeks of deep foundation digging and concrete pouring, the YHZS120F is built on a heavy-duty integrated trailer chassis. You only need a flat, well-compacted, and hardened ground to support the weight. This alone saves you thousands in civil engineering costs and weeks of delay.
Yes, you are welcome to visit our factory and selected project sites. We can also arrange live video inspections, factory tours, and equipment demonstrations if traveling is not convenient.
Send your project location, required capacity, raw material type, and preferred silo configuration, and request a customized quotation and layout proposal.
