Overview
75m³/h Mobile Concrete Mixing Plant for Road, Building & Infrastructure Projects
Increase Concrete Production Anywhere with Fast Installation and Reliable Performance

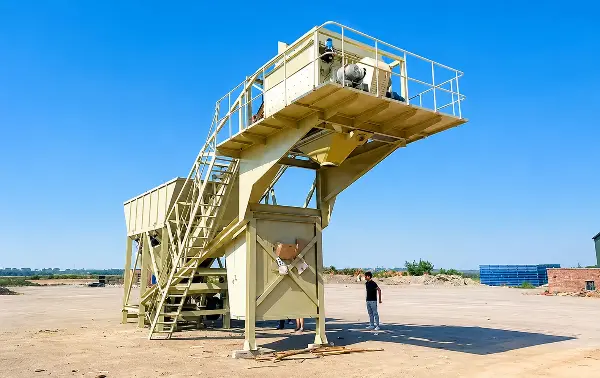

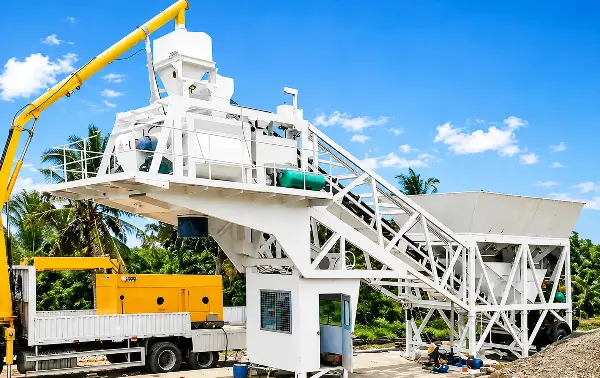

The YHZS75 Mobile Concrete Batching Plant is a high-efficiency portable concrete production solution designed for contractors, ready-mix suppliers, road construction companies, and infrastructure projects. With an output capacity of 75m³/h, it combines excellent mobility, quick setup, and precise batching accuracy to help you reduce project costs and maximize productivity.
Whether you are building highways, bridges, commercial buildings, or remote construction sites, the YHZS75 delivers consistent, high-quality concrete wherever your project moves.
Why Choose Us
The integrated mobile chassis allows quick setup and dismantling. You can move the entire plant within days, minimizing downtime and maximizing productivity.
With a theoretical capacity of 75 cubic meters per hour, the YHZS75 ensures consistent concrete supply for continuous project progress.
All main components are mounted on a single or dual trailer system, reducing transportation complexity and saving logistics costs.
Equipped with advanced load cells for aggregates, cement, water, and additives, ensuring accurate batching and consistent concrete quality.
PLC automatic control with a clear interface allows easy operation, real-time monitoring, and quick troubleshooting.
Heavy-duty steel structure and wear-resistant components ensure long service life, even under demanding site conditions.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS75 |
| Theoretical Capacity | 75 m³/h |
| Concrete Mixer | JS1500 Twin Shaft Mixer (1m³ output per batch) |
| Mixer Discharge Capacity | 1500 L |
| Aggregate Batching Machine | PLD2400 |
| Discharge Height | 3.8 m (Standard) / Customizable |
| Aggregate Bin Quantity | 2-4 Bins Optional (customizable) |
| Cement Silo Capacity | Optional 50T/100T/150T |
| Mixing Cycle | 60s |
| Concrete Types | Dry-mix, wet-mix, all commercial grades |
| Control System | Fully automatic / Manual |
| Transportation Type | Mobile Trailer Mounted |
| Warranty | 12 months |
Customized configurations are available according to project requirements.
Main Components
JS1500 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD2400 Aggregate Batching Machine
Accurate aggregate weighing，Multiple aggregate storage bins available，Stable feeding performance
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Ensures continuous and efficient cement feeding with minimal material loss.
Fully Automatic Control Cabin
Integrated control room with user-friendly software enables one-person operation and efficient plant management.
Cement Silo Options
Flexible silo configurations are available: 50 Ton Cement Silo, 80 Ton Cement Silo, 100 Ton Cement Silo, Horizontal Cement Silo.
Optional Configurations
To meet different project requirements, the YHZS75 can be customized with:
- 50T–300T Cement Silos
- Screw Conveyors
- Cement Bulk Feeders
- Ice Water Systems
- Concrete Recycling Systems
- Dust Collection Systems
- Remote Monitoring Systems
- Generator Power Solutions
YHZS75 vs. Stationary Plant
| Factor | YHZS75 Mobile Plant | Stationary Plant |
|---|---|---|
| Foundation Required | No | Yes (concrete pad, weeks of civil work) |
| Setup Time | 24–48 hours | 2–6 weeks |
| Relocation | Full relocation in hours | Not practical |
| Import & Logistics | Ships in containers, road-legal trailer | Requires heavy lifting equipment |
| Output | 75 m³/h | 75–120 m³/h (similar models) |
| Ideal For | Multi-site, remote, short-term projects | Permanent ready-mix facilities |
| Initial Cost | Lower total project cost | Higher capital investment + civil works |
Applications
1. Road Construction
Produce large volumes of concrete directly at the construction site, reducing transportation costs and ensuring fresh concrete delivery.
2. Commercial Concrete Production
Provide stable ready-mix concrete supply for local contractors and developers.
3. Bridge & Infrastructure Projects
Support continuous concrete pouring requirements with reliable production performance.
4. Industrial Construction
Meet high-strength concrete demands for factories, warehouses, and industrial parks.
Project Cases
YHZS75 Mobile Concrete Batching Plant in Oman
“The YHZS75 mobile plant has performed exceptionally well in Oman’s harsh climate. The mobility and quick setup saved us both time and money. Concrete quality remained consistent throughout the project, and the after-sales support was very professional.”
YHZS75 Mobile Concrete Batching Plant in Jamaica
“The YHZS75 Mobile Concrete Batching Plant has exceeded our expectations. Its mobility allows us to serve multiple project locations efficiently, while the concrete quality remains consistent throughout production. The installation process was fast, and the equipment has operated reliably under local working conditions.”
FAQ
The typical production and delivery time is 20–35 days after receiving the deposit, depending on the configuration and order schedule.
A mobile batching plant is a better choice when project sites change often, installation speed matters, or you want to avoid building a permanent foundation.
All units carry a 12-month warranty on mechanical and structural components. We supply spare parts by express courier worldwide. Our technical team responds within 2 hours during business hours via WhatsApp, email, or video call.
Yes. The modular structure is designed for economical transportation and can be shipped in standard containers, reducing international freight costs.
