Overview
90 m³/h High-Efficiency Mobile Concrete Mixing Solution

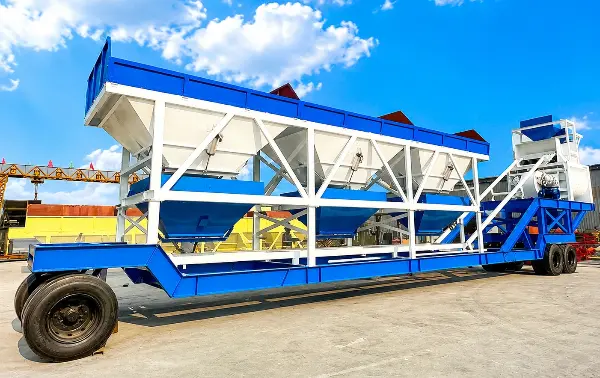

The YHZS90F Mobile Concrete Batching Plant is designed for contractors and concrete producers who need high output, rapid relocation, and reliable concrete quality on demanding projects.
With a production capacity of up to 90 m³/h, the YHZS90F integrates aggregate batching, weighing, mixing, conveying, and intelligent control into a compact mobile structure. It can be transported quickly between job sites, reducing installation costs and project downtime.
Whether you are building highways, bridges, railways, airports, mining facilities, hydropower stations, or large commercial projects, the YHZS90F helps you produce fresh concrete directly at the project site while maintaining maximum efficiency and profitability.
Why Choose Us
The YHZS90F is designed for rapid deployment. Its modular structure allows for quick installation and dismantling, reducing setup time and labor costs. Ideal for remote construction sites, road projects, bridges, and infrastructure development.
With a production capacity of up to 90 m³/h, this plant ensures steady concrete supply for medium to large-scale projects. The advanced mixing system guarantees uniform mixing and high-quality concrete every time.
Equipped with a modern PLC control system, the YHZS90F offers automated operation, real-time monitoring, and easy troubleshooting.
Built with high-strength steel and premium components, this mobile batching plant is made to withstand harsh environments and continuous operation.
Reduce transportation costs and improve project timelines by producing concrete on-site. The YHZS90F helps maximize ROI while maintaining quality.
The YHZS90F can be customized for: 220V / 380V / 415V / 440V power supply，50Hz or 60Hz frequency，Different cement silo capacities，Local environmental requirements，Various control language options
Parameter
| Item | Specification |
|---|---|
| Model | YHZS90F |
| Theoretical Capacity | 90 m³/h |
| Mixer Model | JS1500 Twin Shaft Mixer (1.5m³ discharging volume) |
| Mixer Discharge Capacity | 1500 L |
| Charging Volume | 2400L |
| Aggregate Batching Machine | PLD2400 |
| Aggregate Bin Quantity | 3-4 Bins Optional |
| Feeding Method | Belt Conveyor |
| Control System | Fully Automatic PLC / Manual Overrides |
| Power Supply | Customizable based on region |
| Mobility Type | Mobile Trailer Structure |
Customized configurations are available according to project requirements.
Main Components
Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
Aggregate Batching System
High-precision aggregate weighing, automatic batching operation, fast and efficient material feeding, accurate mix proportion control, easy integration with PLC control systems
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Fully enclosed structure for dust-free operation, stable and continuous material feeding, durable wear-resistant screw blades, easy installation and maintenance, suitable for cement, fly ash, and other powder materials
PLC Control Cabinet
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo
Optional storage capacities available based on project demand.
Mobile Plant VS Stationary Plant
| Feature | YHZS90F Mobile Plant | Stationary Plant |
|---|---|---|
| Mobility | Excellent | Fixed |
| Installation Time | Fast | Longer |
| Foundation Requirement | Minimal | Extensive |
| Relocation Cost | Low | High |
| Transportation Efficiency | High | Low |
| Temporary Projects | Ideal | Less Suitable |
| ROI Speed | Faster | Moderate |
Optional Configurations
To meet different project requirements, we offer:
- Cement silo (50T–200T)
- Horizontal cement silo
- Ice water cooling system
- Moisture measurement system
- Dust collection system
- Admixture storage tanks
- Remote monitoring system
- Generator integration
- Containerized transportation solution
Applications
The YHZS90F Mobile Concrete Batching Plant is widely used in:
Highway Construction
Produce concrete directly along project routes and eliminate long transportation distances.
Bridge Projects
Maintain continuous concrete supply for large bridge structures.
Railway Projects
Ideal for high-speed railway and infrastructure construction.
Airport Construction
Reliable production capacity for large concrete paving operations.
Mining Sites
Perfect for remote areas where ready-mix supply is unavailable.
Hydropower Projects
Flexible deployment in mountainous and challenging terrains.
Commercial Concrete Production
Serve temporary or expanding ready-mix markets efficiently.
Project Cases
YHZS90F Mobile Concrete Batching Plant in Thailand
“The YHZS90F performed exactly as promised. The plant was installed quickly, operated smoothly, and produced consistent concrete quality throughout the project. Its mobility helped us save significant transportation and setup costs. We are very satisfied with the equipment and technical support.” — Project Manager, Thailand
YHZS90F Mobile Concrete Batching Plant in Kazakhstan
“The YHZS90F has proven to be a reliable solution for our infrastructure projects. The equipment is easy to transport, quick to install, and performs consistently even under harsh weather conditions. The automation system is user-friendly, and the after-sales service has been excellent.” — Operations Director, Kazakhstan
After-Sales Service
Before Delivery
- Factory testing
- Trial operation
- Quality inspection
- Packing inspection
Installation Support
- Foundation drawings
- Installation manuals
- Video guidance
- Online technical support
Spare Parts Service
- Long-term spare parts supply
- Fast international shipping
- Technical troubleshooting support
Warranty
- Lifetime technical assistance
- 12-month warranty after commissioning
FAQ
Yes. Mobile plants are designed for quick setup and relocation, which is one of the biggest reasons buyers choose this type of equipment over stationary plants.
Choose a mobile plant like YHZS90F if your site changes often, space is limited, or you need faster installation. Stationary plants are better for large permanent production sites.
Yes, you are welcome to visit our factory and selected project sites. We can also arrange live video inspections, factory tours, and equipment demonstrations if traveling is not convenient.
Send your project location, required capacity, raw material type, and preferred silo configuration, and request a customized quotation and layout proposal.
