Overview
Compact Design. Fast Installation. Reliable Concrete Production.
The YHZS35 Mobile Concrete Batching Plant is designed for construction professionals who demand flexibility, speed, and consistent output. With its compact structure and quick installation capability, this plant is ideal for projects that require frequent relocation or have limited space.
With a theoretical output of 35m³/h, it is widely used in road construction, bridge projects, rural infrastructure, building construction, mining sites, and temporary engineering works.
Compared with traditional stationary batching plants, the YHZS35 mobile batching plant can be transported and installed quickly, significantly reducing foundation costs and project preparation time.
Why Choose Us
Fully mobile design allows setup within hours. Easily transport between job sites, saving time and labor costs.
Delivers consistent and high-quality concrete for medium-scale construction projects such as roads, bridges, and buildings.
Advanced sensors ensure accurate batching of aggregates, cement, water, and additives for superior concrete quality.
Combines batching, mixing, weighing, and control systems into one compact unit, reducing footprint and simplifying operation.
Automated PLC control with an intuitive interface enables easy operation, real-time monitoring, and error alerts.
Built with high-quality steel and components to ensure long service life even in demanding environments.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS35 |
| Theoretical Capacity | 35 m³/h |
| Concrete Mixer | JS750 Twin Shaft Mixer |
| Mixer Discharge Capacity | 750 L |
| Aggregate Batching Machine | PLD1200 |
| Discharge Height | 3.8 m |
| Aggregate Bin Capacity | 4m³ |
| Aggregate Bin Quantity | 2-3 Bins Optional |
| Mixing Cycle | 60s |
| Control System | Fully automatic / Manual |
| Transportation Type | Trailer-Mounted Mobile Structure |
| Warranty | 12 months |
Customized configurations are available according to project requirements.
Main Components
JS750 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD1200 Aggregate Batching Machine
Accurate aggregate weighing，Multiple aggregate storage bins available，Stable feeding performance
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Ensures continuous and efficient cement feeding with minimal material loss.
Intelligent Control System
Real-time monitoring，Automatic production management，Production report printing，Fault diagnosis function
Cement Silo
Optional storage capacities （50Ton，100Ton，150Ton，200Ton）available based on project demand.
Optional Configurations
To meet different project requirements, the YHZS35 can be equipped with:
- 50T / 100T Cement Silo
- Horizontal Cement Silo
- Dust Collection System
- Concrete Recycling System
- Ice Water Cooling System
- Admixture Dosing System
- Remote Monitoring System
Applications
The YHZS25 Mobile Concrete Batching Plant is widely used in:
Road Construction
Perfect for rural roads, highways, and municipal road projects.
Bridge Construction
Provides stable concrete supply directly at the construction site.
Railway Projects
Suitable for remote railway construction sites requiring frequent equipment relocation.
Housing Developments
Ideal for residential and commercial building projects.
Mining Projects
Reliable concrete production for mining infrastructure and foundations.
Water Conservancy Projects
Supports dams, irrigation systems, and hydraulic engineering works.
Project Cases

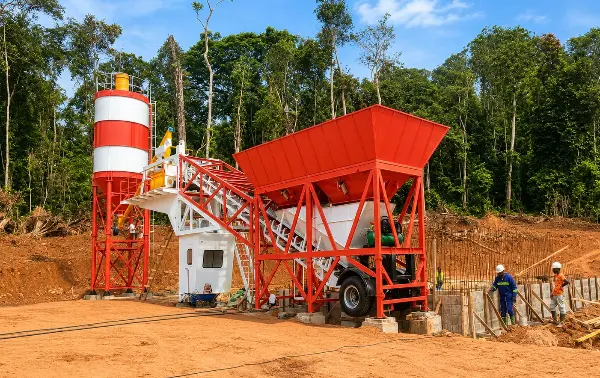

YHZS35 Mobile Concrete Batching Plant Project in Rwanda
“The YHZS35 mobile batching plant perfectly matched our project requirements. It is easy to transport, quick to install, and delivers consistent concrete quality. The equipment has helped us significantly improve construction efficiency while reducing operating costs. We are very satisfied with both the machine and the technical support provided.” — Project Manager, Rwanda
YHZS35 Mobile Concrete Batching Plant Project in Australia
“We needed a batching plant that could be moved easily between remote project locations while maintaining reliable output. The YHZS35 exceeded our expectations. Its compact design, fast setup, and dependable performance have made it a valuable asset for our infrastructure projects. We would confidently recommend this plant to other contractors.” — Operations Director, Australia
Our Service
We provide:
- Factory Direct Price
- Customized Solutions
- Installation Guidance
- Operator Training
- Spare Parts Supply
- Lifetime Technical Support
FAQ
Price depends on configuration, accessories, and supplier, but published reference pricing suggests a broad range in the market rather than a fixed standard price.
The entire plant is integrated into a heavy-duty trailer towing chassis with axles and wheels. It can be easily coupled to a standard truck tractor and towed at normal road speeds. For overseas shipping, the modular design allows it to be efficiently packed into standard containers (40HQ containers), keeping your international ocean freight costs to a absolute minimum.
Depending on your site constraints and logistics, you have two excellent options:
1. Vertical Cement Silos (50T–100T): Best for projects where cement is delivered via bulk powder tanker trucks.
2. Horizontal/Low-Profile Silos: Highly recommended for mobile setups as they require no concrete foundations and can be moved on a flatbed trailer without disassembly.
3. Bagged Cement Feeders: If bulk cement is unavailable in your remote area, we can equip the plant with a small hopper and screw conveyor to feed cement directly from 50kg big bags.
Yes. A factory engineer can be dispatched for first-time commissioning (travel costs covered by buyer). Free remote commissioning support via video call is also available. Factory training is provided before shipment on request.
