Overview
Compact Design, Fast Relocation, Efficient Concrete Production

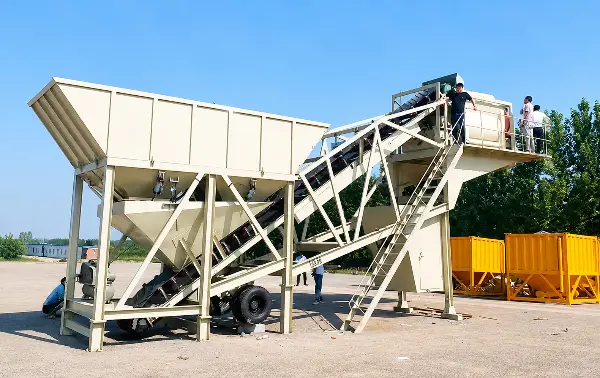

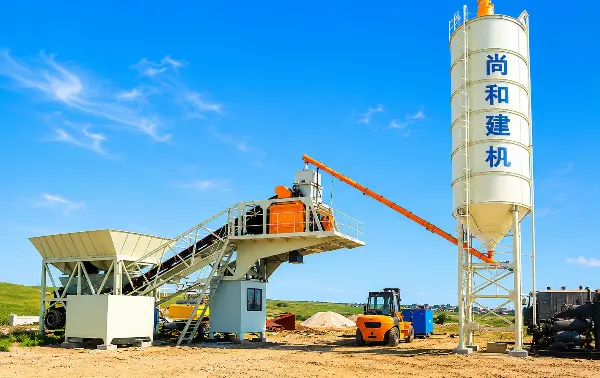

The YHZS25 Mobile Concrete Batching Plant is a compact and highly flexible concrete production solution designed for projects that require frequent site relocation. With a theoretical production capacity of 25m³/h and a reliable JS500 twin-shaft mixer, this mobile batching plant delivers consistent concrete quality while significantly reducing installation time and transportation costs.
Whether you are working on rural roads, small bridges, housing developments, remote construction sites, mining projects, or temporary infrastructure works, the YHZS25 provides an efficient and cost-effective concrete production solution.
Why Choose Us
Unlike stationary batching plants, the YHZS25 is mounted on a mobile chassis that integrates batching, weighing, conveying, mixing, and control systems into one unit. The plant can be transported directly to the project site and quickly put into operation, minimizing downtime between projects.
The compact structure requires minimal installation space, making it ideal for projects with limited land availability or temporary construction sites.
Equipped with high-precision electronic weighing systems for aggregates, cement, water, and additives, the plant ensures accurate batching and consistent concrete quality.
The JS500 twin-shaft compulsory mixer delivers excellent mixing performance, producing homogeneous concrete suitable for various construction applications.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS25 |
| Theoretical Capacity | 25 m³/h |
| Concrete Mixer | JS500 Twin Shaft Mixer |
| Mixer Discharge Capacity | 500 L (0.5m³ per batch) |
| Aggregate Batching Machine | PLD800 |
| Discharge Height | 3.8-4.1m (Standard, customizable) |
| Aggregate Bin Capacity | 4m³ |
| Water Weighing Accuracy | ±1% |
| No. of Storage Bins | 2 or 3 Storage Bins |
| Mixing Cycle | 60s |
| Control System | Fully automatic / Manual |
| Power Supply | 220V / 380V / 415V / 440V, 50/60Hz (Optional) |
Customized configurations are available according to project requirements.
Main Components

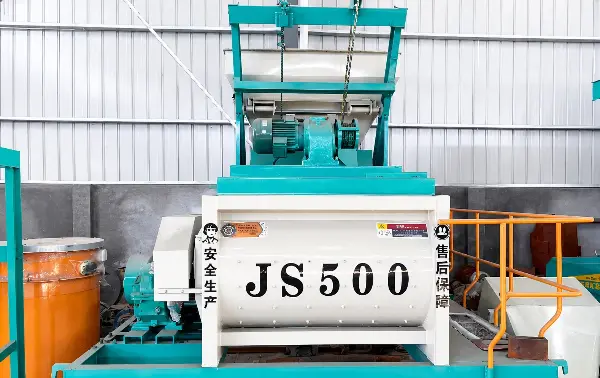

JS500 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD800 Aggregate Batching System
Accurate aggregate weighing，Multiple aggregate storage bins available，Stable feeding performance
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Ensures continuous and efficient cement feeding with minimal material loss.
Intelligent Control System
Real-time monitoring，Automatic production management，Production report printing，Fault diagnosis function
Cement Silo
Optional storage capacities （50Ton，100Ton，150Ton，200Ton）available based on project demand.
Optional Configurations
To meet different project requirements, the YHZS25 can be customized with:
- Cement silos
- Screw conveyors
- Ice water systems
- Admixture dosing systems
- Dust collection systems
- Containerized control rooms
- Remote monitoring systems
- Generator integration
Applications
The YHZS25 Mobile Concrete Batching Plant is widely used in:
Road Construction
Perfect for rural roads, highways, and municipal road projects.
Bridge Construction
Provides stable concrete supply directly at the construction site.
Railway Projects
Suitable for remote railway construction sites requiring frequent equipment relocation.
Housing Developments
Ideal for residential and commercial building projects.
Mining Projects
Reliable concrete production for mining infrastructure and foundations.
Water Conservancy Projects
Supports dams, irrigation systems, and hydraulic engineering works.
Project Cases
YHZS25 Mobile Concrete Batching Plant in the Philippines
“The YHZS25 mobile batching plant has been a great investment for our company. It is easy to transport, quick to set up, and very reliable. We no longer depend on external concrete suppliers, which saves us both time and money. The automatic control system is user-friendly, and the concrete quality fully meets our project requirements.” — Project Manager, Philippines
YHZS25 Mobile Concrete Batching Plant in Peru
“We were impressed by the mobility and reliability of the YHZS25 batching plant. The equipment worked continuously in remote mountain areas without major issues. It helped us maintain our construction schedule and significantly reduced project costs. The technical support team also provided excellent assistance during installation and commissioning.” — Construction Director, Peru
After-Sales Service
We provide comprehensive support to ensure your project runs smoothly:
- Equipment installation guidance
- Operator training
- Commissioning support
- Spare parts supply
- 24/7 technical assistance
- Online troubleshooting service
FAQ
Under normal conditions, installation and commissioning can be completed within 1-3 days. The mobile design significantly reduces setup time compared to stationary concrete batching plants.
No complex or deep concrete foundation is required. This is one of its biggest cost-saving advantages. You only need a flat, well-compacted solid ground (or a simple, level concrete pad) capable of supporting the weight. The integrated heavy-duty landing legs will stabilize the plant during operation.
Yes. A factory-trained commissioning engineer is deployed to your site to supervise unloading, erection, electrical connection, calibration, and initial production run. This is included as standard. Operator training (typically 1–2 days) is also included.
The production and delivery time generally ranges from 15–45 days, depending on the model, customization requirements, and shipping destination.
