Overview
25 m³/h Portable Concrete Production Solution for Remote & Temporary Projects

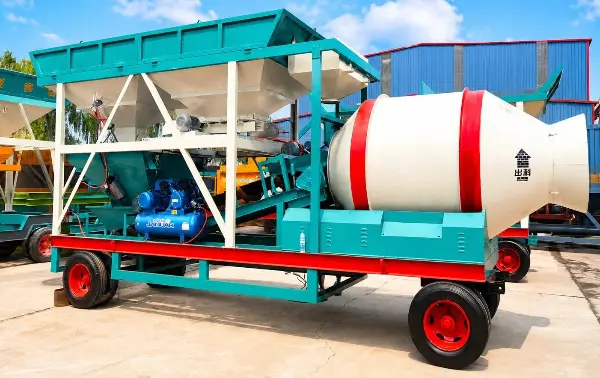

The YHZM25 Mobile Concrete Batching Plant is a compact, trailer-mounted concrete production system designed for projects that require frequent relocation, rapid installation, and reliable concrete supply. With a theoretical capacity of 25 m³/h, the YHZM25 combines aggregate batching, weighing, mixing, conveying, and control systems into a single mobile unit, making it ideal for road construction, bridges, rural infrastructure, housing projects, and remote job sites.
Why Choose Us
Modular mobile design allows setup within hours and easy transportation between job sites.
Optimized mixing system ensures consistent production and high-quality concrete.
Compact layout fits tight construction environments.
Intelligent PLC system simplifies operation and reduces labor requirements.
High-quality components ensure long service life and minimal downtime.
Plants exported to Asia, Africa, South America, the Middle East, and Central Asia.
Parameter
| Item | Specification |
|---|---|
| Model | YHZM25 |
| Theoretical Capacity | 25 m³/h |
| Concrete Mixer | JZM500 Drum Mixer |
| Discharge Height | 1.2m |
| Discharge Volume | 500L |
| Charging Volume | 800L |
| Aggregate Batcher | PLD800 |
| Aggregate Bin Capacity | 3.4m³ |
| No. of Storage Bins | 2/3 |
| Control System | Fully automatic / Manual |
| Installation Type | Trailer-Mounted Mobile Plant |
| Power Supply | Adjustable based on regional requirements |
Customized configurations are available according to project requirements.
Main Components
Drum Concrete Mixer
The Drum Concrete Mixer is a reliable and cost-effective mixing solution widely used in small and medium-sized construction projects.
Aggregate Batching System
High-precision aggregate weighing, automatic batching operation, fast and efficient material feeding, accurate mix proportion control, easy integration with PLC control systems
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Fully enclosed structure for dust-free operation, stable and continuous material feeding, durable wear-resistant screw blades, easy installation and maintenance, suitable for cement, fly ash, and other powder materials
PLC Control Cabinet
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo
Optional storage capacities available based on project demand.
Optional Configurations
To meet different project requirements, we can provide:
- 50T / 100T Cement Silo
- Horizontal Cement Silo
- Screw Conveyor
- Cement Feeding System
- Dust Collection System
- Concrete Pump
- Wheel Loader
- Generator Set
- Remote Monitoring System
Applications
The YHZM25 Mobile Concrete Batching Plant is widely used for:
- Highway Construction
- Rural Road Projects
- Bridge Construction
- Water Conservancy Projects
- Housing Developments
- Municipal Infrastructure
- Remote Mining Projects
- Port Construction
- Small Commercial Buildings
Project Cases

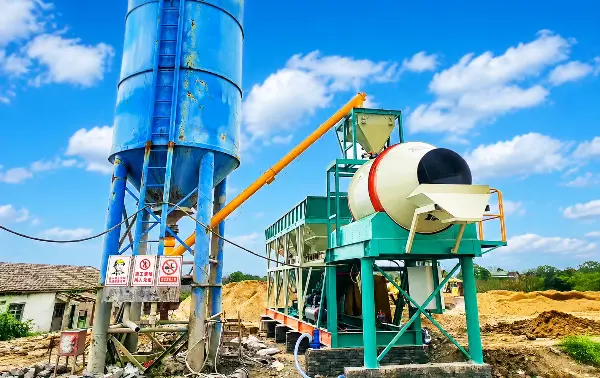

YHZM25 Mobile Concrete Batching Plant in Philippines
“The YHZM25 mobile batching plant has been a valuable investment for our business. The installation was fast, operation is simple, and the concrete quality is very consistent. We can easily move the plant between projects and significantly reduce transportation costs.” — Project Manager, Philippines
YHZM25 Mobile Concrete Batching Plant in Paraguay
“We selected the YHZM25 because of its compact design and easy transportation. The plant performs reliably, even when moving frequently between projects. The automation system is user-friendly, and the technical support team responded quickly whenever assistance was needed.” — General Director, Paraguay Construction Company
Our Service
Factory Direct Price
No middlemen, competitive pricing for global customers.
Global Export Experience
Plants exported to Asia, Africa, South America, the Middle East, and Central Asia.
Custom Design Available
Voltage, control language, cement silo size, and configuration can be customized according to local standards.
Professional After-Sales Support
- Installation guidance
- Commissioning service
- Operator training
- Spare parts supply
- 24/7 technical support
Fast Delivery
Standard models available for quick production and shipment.
FAQ
Contractors, ready-mix producers, road builders, bridge builders, and companies working on temporary or remote projects often choose mobile plants like the YHZM25.
The YHZM25 Mobile Concrete Batching Plant and similar 25 m³/h mobile batching plants have been exported to various countries across Asia, Middle East, South America, Africa, and Central Asia. Documented project references include the Philippines, Kazakhstan, and Paraguay, while similar mobile batching plants have also been supplied to markets such as Nigeria, Indonesia, Saudi Arabia, and Peru.
With proper operation and maintenance, the YHZM25 Mobile Concrete Batching Plant can operate reliably for more than 10 years.
You can request a quote by sharing your project location, required capacity, preferred aggregate storage, power standard, and expected delivery time so we can recommend the right configuration.
