Overview
The HZS35 concrete batching plant is a compact stationary concrete mixing plant designed for medium-sized construction projects and commercial concrete production.
Equipped with a JS750 twin-shaft concrete mixer and automatic batching system, the plant delivers stable performance, precise weighing, and high-quality concrete output.
With its compact structure, easy operation, and reliable working performance, the HZS35 batching plant is widely used in road construction, building projects, bridge engineering, and ready-mix concrete production.
Why Choose Us
Equipped with JS750 twin shaft mixer for fast and uniform concrete mixing.
Electronic weighing system ensures stable concrete quality.
Supports automatic and manual operation modes with user-friendly interface.
Heavy-duty structure ensures long service life and reliable operation.
Modular design reduces installation time and maintenance cost.
Suitable for commercial concrete supply and various construction projects.
Parameter
| Item | HZS35 |
| Theoretical Productivity | 35 m³/h |
| Mixer Model | JS750 Twin Shaft Mixer |
| Mixer Capacity | 750 L |
| Batching Machine | PLD1200 |
| No. of Storage Bins | 2/3/4 |
| Cement Silo | Optional |
| Feeding Method | Hopper Lifting |
| Aggregate Weighing Accuracy | ±2% |
| Cement Weighing Accuracy | ±1% |
| Water Weighing Accuracy | ±1% |
| Installation Type | Stationary |

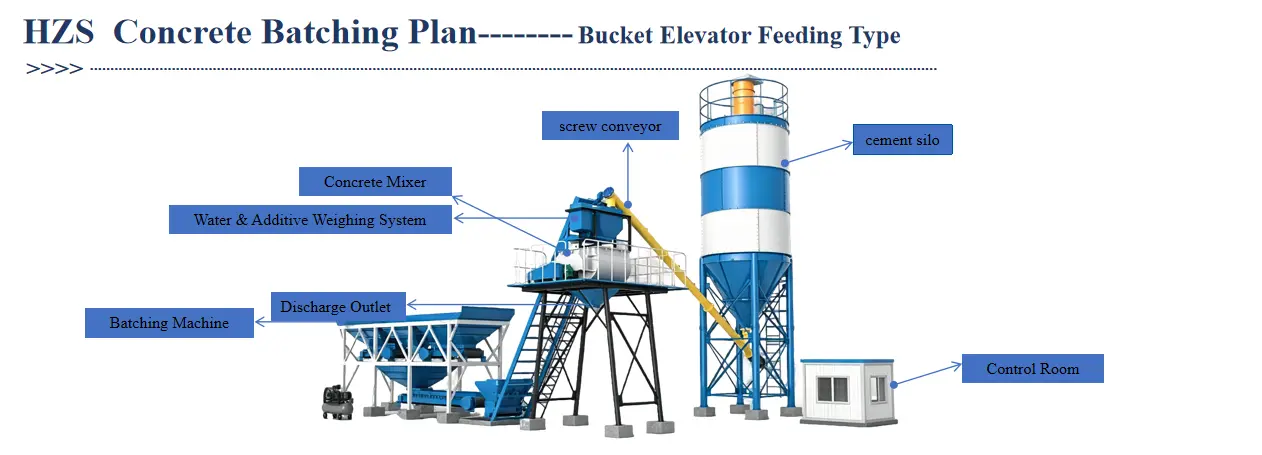

Main Components
JS750 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD1200 Aggregate Batching Machine
Accurate aggregate weighing system ensures stable concrete ratio.
PLC Intelligent Control System
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo & Screw Conveyor
Optional storage capacities available based on project demand.
Applications
The HZS35 concrete batching plant is widely used for:
- Commercial concrete production
- Road and highway construction
- Building foundation projects
- Bridge construction

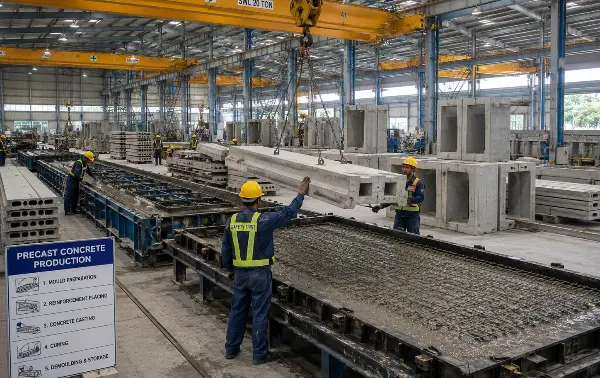

- Precast concrete production
- Rural infrastructure projects
Optional Configuration
- Cement Silo
- Screw Conveyor
- Dust Collector
- Additive Weighing System
- Ice Cooling System
- Wheel Loader
- Mobile Chassis
- Containerized Design
Project Cases
HZS35 Concrete Batching Plant in Pakistan
“The HZS35 batching plant runs very smoothly and is easy for our workers to operate. The concrete quality is stable, and the production efficiency fully meets our project requirements. Your team also provided very professional installation guidance and after-sales support.” — Construction Contractor
HZS35 Concrete Batching Plant in Kenya
“We are very satisfied with the performance of the HZS35 concrete batching plant. The machine works efficiently even under continuous operation. It helps us improve construction progress and reduce labor costs. The after-sales service was responsive and helpful throughout the project.” — Customer from Kenya
FAQ
The control system can be customized into three main levels based on user preference:
Fully Automatic (PLC + PC): One-click operations managed via computer and Siemens PLC software. It handles formula memory, production printing, and error diagnostic tracking.
Semi-Automatic: Operated via a localized touch screen or physical control panel buttons.
Manual Mode: Emergency or direct switch-operated button control.
Under normal conditions, installation and commissioning usually take around 7–15 days depending on site preparation and local working conditions.
Yes. Overseas engineer support, remote technical guidance, installation assistance, and operator training can be provided.
