Overview

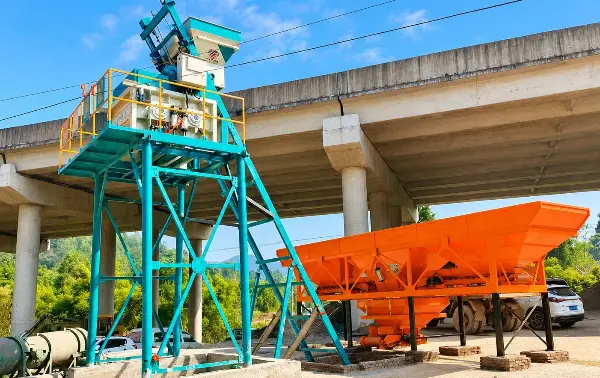

25m³/h Stationary Concrete Batching Plant for Small Projects
The HZS25 Concrete Batching Plant is designed for small and medium construction projects requiring stable concrete production with low investment and easy operation. It is widely used for rural construction, road projects, house building, precast factories, and small commercial concrete production.
With compact structure, automatic control system, and fast installation, the HZS25 batching plant is an ideal choice for contractors looking for an economical concrete mixing solution.
Why Choose Us
When buying, you aren’t just buying equipment; you are buying uptime, precision, and profit. Here is why global contractors trust our HZS25.
The modular design requires less installation space, making it suitable for sites with limited land area.
Equipped with high-efficiency twin shaft concrete mixer for uniform mixing quality and fast discharge speed.
Automatic PLC control system with user-friendly interface helps reduce labor cost and improve batching accuracy.
Compared with large batching plants, HZS25 offers an affordable solution while still maintaining reliable output capacity.
Pre-wired and modular structure helps shorten installation time and allows quick project startup.
Optional cement silo, screw conveyor, weighing system, and control room can be configured according to project requirements.
Parameter
| Item | HZS25 |
| Theoretical Productivity | 25 m³/h |
| Mixer Model | JS500 Twin Shaft Mixer |
| Mixer Capacity | 500 L |
| Batching Machine | PLD800 |
| Aggregate Bin Quantity | 2 / 3 bins optional |
| Cement Silo | 50T / 100T optional |
| Feeding Method | Hopper Lifting |
| Weighing Accuracy | Aggregate ±2%, Cement ±1% |
| Installation Type | Stationary |
| Application | Construction Projects / Precast / Commercial Concrete |
Main Components
JS500 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD800 Aggregate Batching Machine
Accurate aggregate weighing system ensures stable concrete ratio.
PLC Intelligent Control System
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo & Screw Conveyor
Optional storage capacities available based on project demand.
Applications
The HZS25 concrete batching plant is widely used in:
Optional Configuration
- Cement Silo
- Screw Conveyor
- Bolted Cement Silo
- Wheel Loader
- Cement Tank
- Dust Collector
- Ice Cooling System
- Mobile Design
Project Cases
HZS25 Concrete Plant in the Philippines
“The HZS25 batching plant is easy to operate and very suitable for our small construction projects. Installation was fast and the concrete quality is stable.” — Construction Contractor

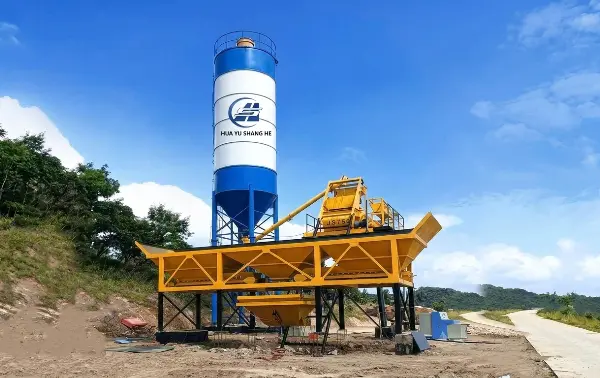

HZS25 Batching Plant in Uzbekistan
“The HZS25 plant was installed quickly and started production smoothly. It is a very reliable solution for small infrastructure construction.” — Customer from Uzbekistan
FAQ
The rated output is 25 m³/h under ideal conditions (well-graded aggregate, efficient discharge). In typical site practice, operators achieve 18–22 m³/h accounting for loading, discharge, and minor stops. Output depends on mix design, aggregate moisture, and operator efficiency.
The standard unit is configured for 380V / 50Hz / 3-phase. Custom configurations for 415V (60Hz), 440V, or other regional standards are available at no extra cost — just specify when ordering.
We offer FOB, CIF, and DDP shipping terms worldwide. Standard lead time is 20–30 working days after order confirmation. We work with major global freight forwarders and can ship to any seaport. Door-to-door logistics can be arranged on request.
Yes, engineers are available for overseas installation and training.
