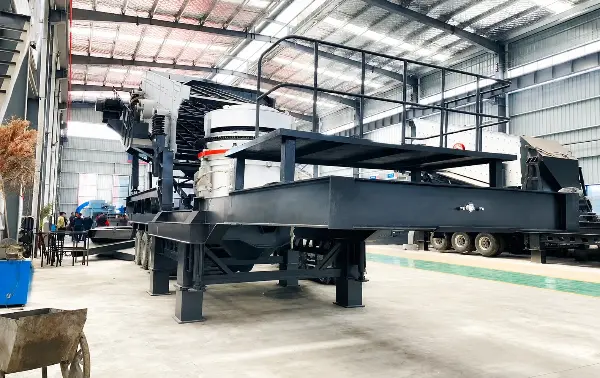

High-Performance Mobile Cone Crushing Plant for Hard Rock Processing
Looking for a reliable and efficient solution for secondary and tertiary crushing? Our Mobile Cone Crusher is designed to process hard and abrasive materials such as granite, basalt, river stone, iron ore, and quartz with exceptional productivity and mobility.
Combining a powerful cone crusher, intelligent control system, vibrating screen, and integrated conveyor system on a mobile chassis, this plant delivers high-quality aggregates while significantly reducing transportation and installation costs.
Whether for quarry operations, mining projects, road construction, or aggregate production, our Mobile Cone Crushing Plant provides a flexible and cost-effective crushing solution.
Applications
Our Mobile Cone Crusher is widely used for:
- Granite crushing
- Basalt processing
- River stone crushing
- Iron ore crushing
- Limestone aggregate production
- Quarry operations
- Mining projects
- Highway construction
- Railway ballast production
- Concrete aggregate manufacturing
Why Choose Us
Equipped with a high-efficiency cone crusher, the plant delivers superior reduction ratios, consistent particle shape, and excellent throughput for demanding applications.
The mobile design eliminates complex foundation work. The plant can be transported directly to the job site and put into operation quickly, reducing project downtime.
Advanced automation enables one-button start-up, real-time monitoring, fault diagnosis, and remote operation, improving productivity and reducing labor costs.
Optimized crushing chamber design and wear-resistant components help reduce energy consumption and extend liner service life.
Available with different cone crusher models, screening systems, and feeding capacities to match various production requirements.
Optional multi-layer vibrating screens allow direct production of multiple aggregate sizes, improving operational efficiency.
Technical Specifications
| Model | Screen Model | Crusher Model | Max Feed Size (mm) | Capacity (t/h) | Overall Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|
| S-CS75 | 3YZK1848 | CS75 | ≤160 | 59-163 | 12600×2800×4400 |
| S-CS110 | 3YZK1860 | CS110 | ≤178 | 100-200 | 13800×3000×4400 |
| S-CS160 | 3YZK2160 | CS160 | ≤188 | 132-253 | 13800×3000×4400 |
| S-CS220 | 3YZK2160 | CS220 | ≤230 | 215-330 | 14500×3000×4500 |
| S-HQ300 | 3YZK1848 | SHQ300 | ≤160 | 65-168 | 12600×2800×4400 |
| S-HQ400 | 3YZK1860 | SHQ400 | ≤230 | 105-205 | 13800×3000×4400 |
| S-HQ500 | 3YZK2160 | SHQ500 | ≤240 | 180-290 | 14500×3000×4600 |
| S-H420 | 3YZK1848 | SH420 | ≤240 | 85-170 | 12600×2900×4400 |
| S-H430 | 3YZK1860 | SH430 | ≤360 | 120-345 | 13800×3000×4500 |
| S-H440 | 3YZK2160 | SH450 | ≤450 | 255-605 | 14800×3200×4600 |
| S-HP100 | 3YZK1860 | SHP100 | ≤140 | 75-140 | 13800×2900×4300 |
| S-HP200 | 3YZK2160 | SHP200 | ≤185 | 145-250 | 14200×3000×4500 |
| S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
| S-PF1214 | 3YZK1860 | PF1214 Impact Crusher | ≤300 | 100-200 | 14500×2900×4500 |
| S-PF1315 | 3YZK2160 | PF1315 Impact Crusher | ≤350 | 130-280 | 15200×3000×4500 |
| S-PF1320 | 3YZK2460 | PF1320 Impact Crusher | ≤500 | 180-400 | 15200×3000×4500 |
| S-S1860 | 3YZK1860 | Vibrating Screen | ≤400 | 65-586 | 10500×2700×4200 |
| S-S2160 | 3YZK2160 | Vibrating Screen | ≤400 | 81-720 | 10500×3000×4500 |
| S-S2460 | 3YZK2460 | Vibrating Screen | ≤400 | 100-810 | 10500×3200×4500 |
Working Principle
Raw materials are fed into the cone crusher through the feeder. The cone crusher performs secondary or tertiary crushing by compressing materials between the mantle and concave.
The crushed materials are then transferred to the vibrating screen for classification. Qualified aggregates are discharged directly, while oversized materials are returned to the crusher for further processing, forming a closed-circuit crushing system that ensures consistent product size.
After-Sales Support
We provide full after-sales service for mobile impact crusher to ensure stable and efficient operation:
- 24/7 technical support for quick troubleshooting
- On-site installation & commissioning with operator training
- Fast spare parts supply to reduce downtime
- Remote diagnostics for quick problem solving
- Warranty & long-term service for reliable performance
Our goal is to keep your equipment running smoothly with minimal interruption.
Project Cases
250tph Mobile Cone Crusher in Indonesia
Due to multiple quarry locations and changing work areas, a stationary crushing plant was not suitable. The customer needed a mobile crushing plant capable of producing 250 tons per hour while maintaining excellent aggregate quality and low operating costs.
180tph Mobile Cone Crusher in Saudi Arabia
A leading aggregate producer in Saudi Arabia required a mobile crushing solution to support road construction and infrastructure projects. The customer needed a plant capable of processing hard granite while producing high-quality aggregates for concrete and asphalt applications.
FAQ
Start with the material type, target output size, expected throughput, site mobility needs, and maintenance support availability. Those factors directly affect whether a mobile cone crusher is the right fit and what size or configuration you need.
Yes, mobile cone crushers are often used in recycling to process concrete and asphalt into reusable aggregate. They are especially useful when the recycled product needs a more uniform final shape.
Use a cone crusher when your feed is already reduced and you want finer, more cubic output. Use a jaw crusher when you need primary crushing of larger feed material.
Yes, the configuration is typically based on material hardness, moisture, feed size, target output, capacity, crushing stages, power source, and site size.
