Overview
High-Efficiency Crushing Solution for Mining & Construction
Boost Your Crushing Productivity with a Powerful Mobile Impact Crusher

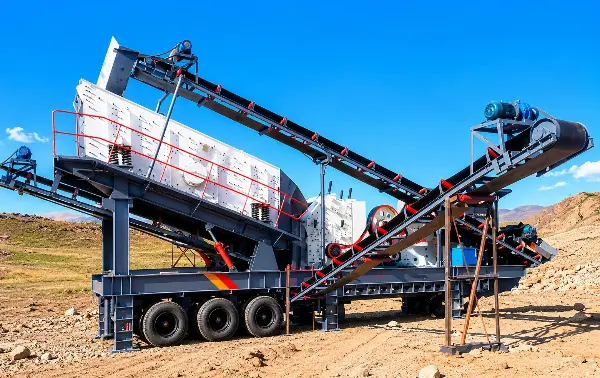

The Mobile Impact Crusher is a highly efficient and flexible crushing solution designed for processing soft to medium-hard materials such as limestone, concrete, asphalt, construction waste, and natural rock. It combines strong impact crushing performance with full mobility, making it ideal for on-site crushing operations, reducing transportation costs and increasing production efficiency.
Whether you are working on mining projects, road construction, demolition recycling, or aggregate production, our mobile impact crusher delivers stable performance, high output, and excellent final product shape.
Applications
Our mobile impact crushers are currently operating in:
- Quarrying — Limestone, basalt, granite primary and secondary crushing
- Road & Highway Construction — Sub-base aggregate production on-site
- Concrete & Asphalt Recycling — C&D waste processing into reusable aggregate
- Mining & Ore Pre-Crushing — Medium-hardness ore size reduction before conveying
- River Gravel Processing — River pebble shaping to cubic aggregate
- Disaster & Emergency Response — Rapid rubble reduction and site clearance
Why Choose Us
Equipped with a heavy-duty impact crusher rotor system, it ensures strong crushing force and high reduction ratio, producing uniform and high-quality aggregates.
Wheel-mounted or crawler-type chassis allows fast relocation between job sites without complex installation or foundation work.
Produces cubical-shaped finished materials, ideal for concrete production, asphalt mixing, and high-grade aggregates.
Reduces transportation costs, eliminates fixed plant installation expenses, and minimizes labor requirements.
Hydraulic opening system allows quick access to crushing chamber for fast inspection and maintenance, reducing downtime.
Can operate independently or combine with other crushing and screening equipment for multi-stage crushing lines.
Technical Specifications
| Model | Feeding Belt / Screen Model | Crusher Model | Max Feed Size (mm) | Capacity (t/h) | Overall Dimension (mm) |
|---|---|---|---|---|---|
| S-V7611 | 3YZK1548 | VSI7611 | 35 | 120–180 | 12500 × 2600 × 4300 |
| S-V8518 | 3YZK1848 | VSI8518 | 40 | 200–260 | 14200 × 3000 × 4500 |
| S-V9526 | 3YZK1860 | VSI9526 | 45 | 300–380 | 14500 × 3000 × 4500 |
| S-V1140 | 3YZK2160 | 5X1140 | 50 | 450–520 | 15500 × 3100 × 4500 |
| S-5V7615 | 3YZK1548 | 5X7615 | 35 | 150–280 | 12500 × 2600 × 4300 |
| S-5V8522 | 3YZK1848 | 5X8522 | 40 | 240–380 | 14200 × 3000 × 4500 |
| S-5V9532 | 3YZK1860 | 5X9532 | 45 | 350–540 | 14500 × 3000 × 4500 |
| S-5V1145 | 3YZK2160 | 5X1145 | 50 | 500–640 | 15500 × 3100 × 4500 |
Competitive Comparison
Factory-Direct vs. Dealer-Sourced: Know What You’re Paying For
| Factor | Our Factory | Third-Party Dealer |
|---|---|---|
| Price | Ex-factory, no middleman markup | +15–30% dealer margin |
| Lead time | 15–25 days production | Dependent on stock |
| Customization | Full OEM/ODM available | Limited or none |
| Spare parts | Direct, guaranteed compatibility | Risk of non-OEM parts |
| Technical support | Factory engineers, direct line | Relayed through distributor |
| Warranty | 12 months, factory-backed | Variable |
After-Sales Support
We provide full after-sales service for mobile impact crusher to ensure stable and efficient operation:
- 24/7 technical support for quick troubleshooting
- On-site installation & commissioning with operator training
- Fast spare parts supply to reduce downtime
- Remote diagnostics for quick problem solving
- Warranty & long-term service for reliable performance
Our goal is to keep your equipment running smoothly with minimal interruption.
Project Cases
450tph Mobile Impact Crusher in Australia
A Brisbane demolition company processing reinforced concrete slabs needed a mobile solution that could move between 4 active demolition sites per month. Our wheel-mounted impact crusher with integrated rebar-removal overband magnet delivered 95% clean recycled aggregate.
500tph Mobile Impact Crusher in Kazakhstan
Limestone primary crushing Remote quarry site, no grid power. Diesel-electric drive unit with satellite telematics enabled unattended overnight operation. Fuel consumption: 38 L/hr at full load — 22% lower than the client’s previous equipment.
FAQ
It typically produces a well-shaped, cubical final product, which is valuable for aggregates and road base applications.
Choose tracked for rough terrain and frequent repositioning on site, and wheeled for road transport and projects where towing is easier.
Blow bars and related wear parts should be inspected regularly, because worn bars reduce performance and can damage the rotor if ignored.
Yes, the configuration is typically based on material hardness, moisture, feed size, target output, capacity, crushing stages, power source, and site size.
