Overview

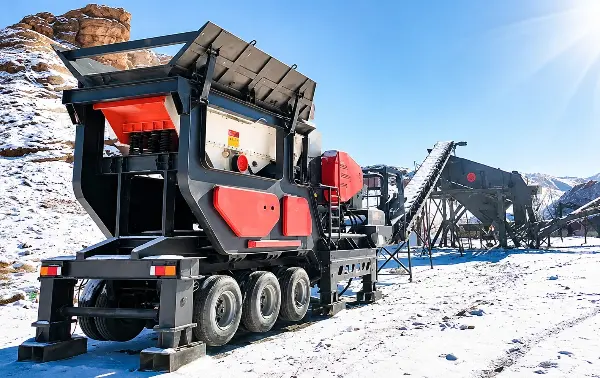

High-Performance Mobile Jaw Crushing Plant for Quarry, Mining & Construction Projects
Looking for a reliable mobile jaw crusher that delivers high productivity, low operating costs, and flexible mobility? Our Mobile Jaw Crusher is engineered for primary crushing applications in mining, quarrying, demolition waste recycling, and aggregate production.

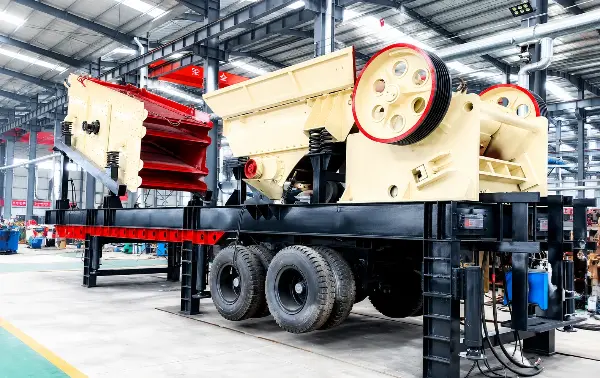

Combining a powerful jaw crusher with a robust mobile chassis, the plant can be transported directly to the job site, reducing material handling costs and improving operational efficiency.
Applications
Our Mobile Jaw Crusher is widely used for:
- Quarry and aggregate production
- Mining operations
- Road and highway construction
- Building construction projects
- Demolition waste recycling
- Concrete recycling plants
- Infrastructure development projects
Suitable Materials
- Hard Rock Materials
- Granite
- Basalt
- Limestone
- River Pebbles
- Quartz
- Concrete Waste
- Construction Debris
Why Choose Us
Equipped with a heavy-duty jaw crusher, the plant efficiently processes granite, basalt, limestone, river stone, concrete waste, and other hard materials. Production capacity ranges from 50 to 500+ tph depending on the model.
The integrated design allows quick installation and commissioning. Most units can be operational within hours, minimizing downtime and accelerating project schedules.
Available in both wheel-mounted and tracked configurations, making it suitable for various working environments including quarries, mines, urban construction sites, and remote projects.
The optimized crushing chamber design improves material throughput while reducing wear part consumption and fuel costs.
PLC-based control system enables one-button startup, real-time monitoring, fault diagnosis, and remote operation support for easier plant management.
Built with high-quality components and a reinforced steel structure to ensure long service life and continuous operation in demanding environments.
Technical Specifications
| Model | SH-HD86 | SH-HD98 | SH-HD110 | SH-HD125 |
|---|---|---|---|---|
| Transportation Length (mm) | 12,600 | 13,500 | 14,500 | 15,200 |
| Transportation Width (mm) | 2,600 | 2,700 | 2,800 | 2,900 |
| Transportation Height (mm) | 3,870 | 4,200 | 4,450 | 4,500 |
| Maximum Length (mm) | 12,500 | 14,000 | 16,100 | 16,700 |
| Maximum Width (mm) | 4,100 | 4,500 | 5,100 | 5,100 |
| Maximum Height (mm) | 4,100 | 4,900 | 5,000 | 5,300 |
| Weight (t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dual Axial | Tri-Axial | Tri-Axial | Tri-Axial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size (mm) | 500 | 550 | 660 | 800 |
| Discharge Opening Range (mm) | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity (t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800 × 8.5m | B1000 × 9.5m | B1000 × 11m | B1200 × 11m |
| Side-opening Belt Conveyor (Optional) | B500 × 3m | B650 × 3.5m | B650 × 4m | B650 × 4m |
| Generator Set (Optional) | 200KW | 250KW | 270KW | 400KW |
| Iron Separator (Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
After-Sales Support
We provide full after-sales service for mobile impact crusher to ensure stable and efficient operation:
- 24/7 technical support for quick troubleshooting
- On-site installation & commissioning with operator training
- Fast spare parts supply to reduce downtime
- Remote diagnostics for quick problem solving
- Warranty & long-term service for reliable performance
Our goal is to keep your equipment running smoothly with minimal interruption.
Project Cases
450tph Mobile Coarse Crushing Plant in Tanzania
A Tanzania iron ore project used a heavy-duty tracked jaw crusher (1000mm max feed, 450 t/h, PLC control) to overcome high-abrasion ore wear and rainy-season access issues. The mobile unit relocated to higher ground during wet periods, and high-chromium wear liners extended service intervals by about 30%, maintaining consistent output year-round.
400tph Mobile Coarse Crushing Plant in Peru
A Peru copper mining project used a tracked cone crusher (400 t/h, with dust suppression) to meet strict high-altitude environmental requirements around dust and noise. Integrated water-spray suppression and acoustic enclosures ensured compliance near sensitive areas, while tracked mobility allowed positioning close to the pit face — reducing ore haul distance, fuel consumption, and truck wear.
FAQ
Yes. Mobile jaw crushers are widely used for construction and demolition recycling, especially when the feed contains hard concrete and rubble.
Tracked units are usually better for rough terrain and frequent site movement, while wheeled units are often easier to tow on roads and may suit simpler relocation needs.
The most important factor is matching the crusher to the material source and the required output, because the wrong jaw size or setup can reduce efficiency.
Yes, the configuration is typically based on material hardness, moisture, feed size, target output, capacity, crushing stages, power source, and site size.
