Overview

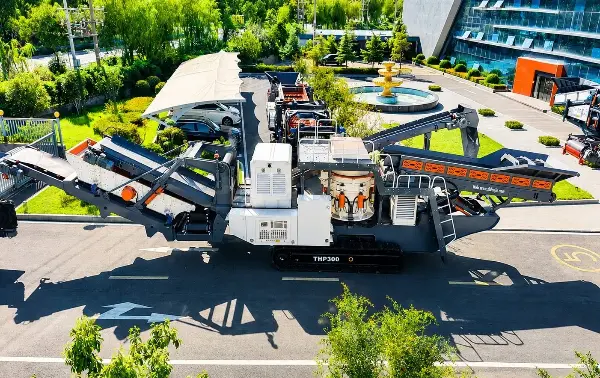

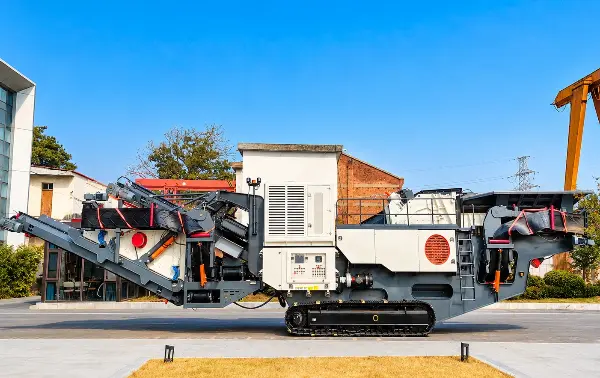

High-Performance Tracked Mobile Crushing & Screening Solution for Quarry, Mining and Construction Projects
Looking for a powerful, flexible, and cost-effective crushing solution? Our Tracked Mobile Crushing and Screening Plant is designed to meet the demanding requirements of quarrying, mining, demolition, recycling, and aggregate production projects worldwide.
Featuring a fully hydraulic tracked chassis, intelligent control system, and integrated crushing and screening units, this plant delivers superior mobility, high productivity, and lower operating costs. Whether you need primary crushing, secondary crushing, fine crushing, or finished material screening, our tracked solution provides a complete on-site processing system.
Applications
1. Quarry & Aggregate Production
Produce high-quality aggregates directly at the quarry site, reducing transportation costs and increasing operational efficiency.
2. Mining Operations
Suitable for processing iron ore, copper ore, gold ore, and various metallic and non-metallic minerals.
3. Construction Waste Recycling
Convert demolition waste into reusable aggregates for road construction and infrastructure projects.
4. Road & Infrastructure Projects
Provide flexible crushing and screening solutions for highways, railways, airports, and large-scale infrastructure developments.
Why Choose Us
The tracked chassis allows the machine to travel directly on rough terrain without additional transportation equipment. It can quickly move between working areas, reducing downtime and improving project efficiency.
Combines crushing, screening, and conveying functions into one complete system, minimizing material handling and maximizing productivity.
Equipped with premium jaw crushers, cone crushers, impact crushers, or vibrating screens, the plant delivers stable output from 50 TPH to 500 TPH depending on configuration.
On-site crushing eliminates material transportation costs while reducing labor requirements and fuel consumption.
Advanced automation enables one-button startup, real-time monitoring, fault diagnosis, and remote operation for easier management.
The plant can be deployed and commissioned within hours, making it ideal for short-term projects and multiple job sites.
Technical Specifications
| Model | Screen Configuration | Max. Feed Size (mm) | Screen Mesh Size (mm) | Capacity (t/h) | Transport Dimensions (mm) |
|---|---|---|---|---|---|
| S5X18L | 5X1860 | 400 | 5-80 | 75-600 | 17700 × 3200 × 3700 |
| S5X21L | 5X2160 | 400 | 5-80 | 85-700 | 17700 × 3500 × 3700 |
After-Sales Support
We provide full after-sales service for mobile impact crusher to ensure stable and efficient operation:
- 24/7 technical support for quick troubleshooting
- On-site installation & commissioning with operator training
- Fast spare parts supply to reduce downtime
- Remote diagnostics for quick problem solving
- Warranty & long-term service for reliable performance
Our goal is to keep your equipment running smoothly with minimal interruption.
Project Cases
200tph Tracked Mobile Crushing and Screening Plant in Philippines
Following typhoon damage clean-up, a contractor needed to process mixed construction debris into reusable base material across multiple disaster-recovery sites. A tracked impact crusher paired with a screening module (200 t/h) and overband magnetic separator was used to remove embedded metal and produce graded recycled aggregate on-site. The plant’s self-propelled tracks enabled rapid movement between sites without low-bed trailers, cutting equipment relocation time from days to hours.
350tph Tracked Mobile Crushing and Screening Plant in Ghana
A gold mining operation needed to feed ore to a downstream wash plant at a consistent particle size despite highly variable ore hardness. A tracked cone crusher and screening combination (350 t/h, PLC-controlled) was configured with adjustable closed-side settings, allowing operators to fine-tune output size on the fly as ore characteristics changed across different pit zones. This eliminated bottlenecks at the wash plant and improved overall circuit throughput by an estimated 15%.
FAQ
Wear parts depend on the crusher type and may include jaw dies, blow bars, mantle, concave liners, and screen meshes.
Tracked units are usually better for rough terrain and frequent site movement, while wheeled units are often easier to tow on roads and may suit simpler relocation needs.
A closed-circuit setup screens crushed material and sends oversize material back to the crusher for further reduction, which helps control final product size.
Yes, the configuration is typically based on material hardness, moisture, feed size, target output, capacity, crushing stages, power source, and site size.
