Overview
High Efficiency, Easy Relocation Crushing Solution
Looking for a flexible, high-output crushing solution for quarrying, mining, or construction projects? Our Wheel Mobile Crushing Plant is designed for fast deployment, strong crushing capacity, and easy relocation—helping you reduce downtime and maximize productivity on every project.

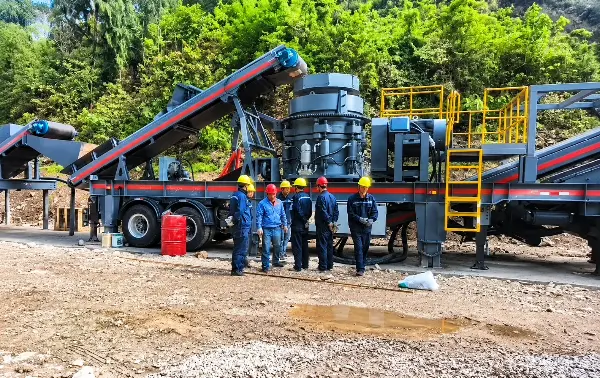

A wheel-mounted mobile crushing plant is a fully integrated crushing system installed on a trailer chassis. Unlike stationary crushers, it can be quickly transported between job sites, making it ideal for projects that require frequent relocation or short construction cycles.
It combines feeding, crushing, screening, and conveying systems into one compact mobile unit.
Applications
Our wheel mobile crushing plants are currently operating in:
- Quarrying — Granite, limestone, basalt, river pebble crushing for aggregate supply
- Road Construction — On-site base course and sub-base material production
- Demolition Recycling — Concrete and brick waste processed to recycled aggregate (RA)
- Mining — Ore pre-crushing at pit face before transport to fixed processing plant
- Hydropower / Dam Projects — Aggregate supply in remote mountainous terrain
Export Markets: Nigeria, Ghana, Kenya, Ethiopia, Philippines, Indonesia, Vietnam, Bangladesh, Pakistan, UAE, Saudi Arabia, Kazakhstan, Peru, Chile
Why Choose Us
Wheel-mounted design for highway towing, No complex disassembly required, Move between sites within hours
Equipped with jaw crusher, cone crusher, or impact crusher options; Stable output with continuous feeding system; Optimized crushing chamber for higher throughput
Reduced civil foundation work; Less labor required for installation; Energy-efficient crushing system
Jaw + cone crushing combination; Jaw + impact crushing system; Screening unit integration available
PLC automatic control panel; Real-time monitoring of production status; Easy operation with minimal training
Heavy-duty frame structure, high-quality wear-resistant parts, and centralized control system ensure long service life and simplified daily maintenance.
Technical Specifications
| Type / Station Category | Model | Feeding Equipment | Crushing Equipment | Transport Dimensions (L×W×H mm) |
|---|---|---|---|---|
| Primary Crushing Mobile Station | E69 | ZSW9638 | PE600×900 | 12150 × 2600 × 3950 |
| E750 | ZSW1142 | PE750×1060 | 13270 × 2850 × 4200 | |
| C96 | ZSW9638 | C96 | 12150 × 2600 × 3950 | |
| C106 | ZSW1142 | C106 | 13200 × 3000 × 4400 | |
| C116 | ZSW1349 | SC116 | 14600 × 3000 × 4500 | |
| L150 | ZSW9638 | LF150 | 11000 × 2000 × 4000 | |
| L250 | ZSW1142 | LF250 | 13500 × 2600 × 4300 | |
| L350 | ZSW1349 | LF350 | 16500 × 3100 × 4500 |
Complete Crushing Plant Solution
We supply matched primary + secondary + tertiary mobile units as a complete crushing line, engineered together for maximum throughput and product consistency.
Typical 3-Stage Line Configuration:
- Stage 1 → Wheel Mobile Jaw Crusher (primary reduction: 500 mm → 100 mm)
- Stage 2 → Wheel Mobile Impact / Cone Crusher (secondary: 100 mm → 30 mm)
- Stage 3 → Wheel Mobile Screening Plant (classification: 0–5 / 5–10 / 10–20 / 20–40 mm)
Total system capacity: 150–400 t/h depending on material and gradation requirement.
After-Sales Support
We provide full after-sales service for Wheel Mobile Crushing Plant to ensure stable and efficient operation:
- 24/7 technical support for quick troubleshooting
- On-site installation & commissioning with operator training
- Fast spare parts supply to reduce downtime
- Remote diagnostics for quick problem solving
- Warranty & long-term service for reliable performance
Our goal is to keep your equipment running smoothly with minimal interruption.
Project Cases
400tph Mobile Crushing Plant in Peru
A Peru copper mining project used a tracked cone crusher (400 t/h, with dust suppression) to meet strict high-altitude environmental requirements around dust and noise. Integrated water-spray suppression and acoustic enclosures ensured compliance near sensitive areas, while tracked mobility allowed positioning close to the pit face — reducing ore haul distance, fuel consumption, and truck wear.
250tph Mobile Crushing Plant in Indonesia
Due to multiple quarry locations and changing work areas, a stationary crushing plant was not suitable. The customer needed a mobile crushing plant capable of producing 250 tons per hour while maintaining excellent aggregate quality and low operating costs.
FAQ
Wheel type machines are usually towed and are better for flat sites, urban projects, and roadwork, while tracked units self-propel on rough terrain and are better for mines and rugged ground.
It is a strong fit for temporary projects, multiple job sites, urban sites with space limits, and jobs where moving raw material is costly or impractical.
Wheel mobile plants are commonly built with jaw crushers, cone crushers, impact crushers, or hammer crushers depending on the application and final product requirements.
Yes, the configuration is typically based on material hardness, moisture, feed size, target output, capacity, crushing stages, power source, and site size.
