Overview
Efficient Concrete Mixing & Transport for Small to Medium Projects

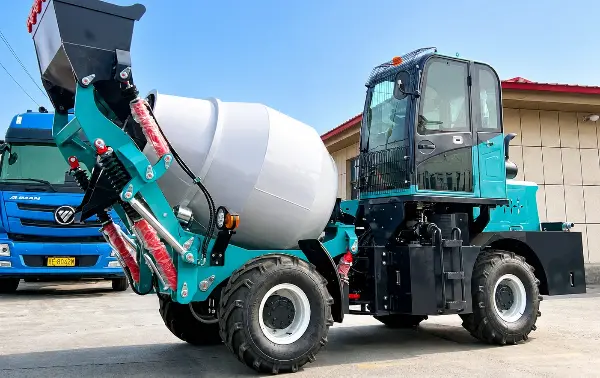

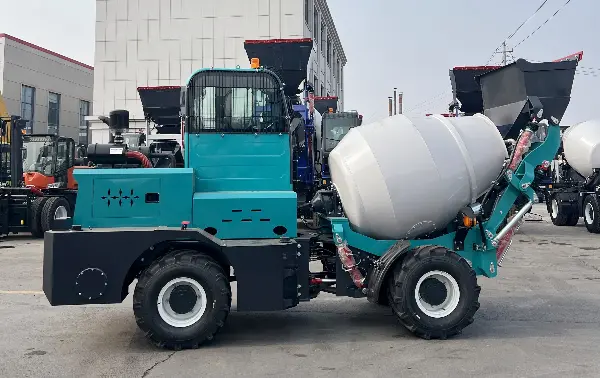

The 1.5m³ Self Loading Concrete Mixer is an all-in-one machine that combines loading, batching, mixing, transporting, and discharging. Designed for projects with limited labor and challenging job sites, it significantly reduces construction costs while improving productivity.
Powered by a reliable diesel engine and equipped with a 270° hydraulic rotating drum, this machine delivers fresh concrete exactly where you need it. It is widely used for rural roads, residential buildings, farms, municipal projects, and remote construction sites.
Why Choose Us
Load, mix, transport, and discharge concrete without needing additional equipment.
With a 1.5m³ drum capacity and 6–8m³/h concrete output, it delivers continuous and efficient performance for small and medium-sized construction projects.
Equipped with a reliable turbocharged diesel engine that provides strong power, excellent fuel efficiency, and dependable performance in demanding job sites.
The 270° rotating drum enables flexible concrete discharge without moving the machine, improving efficiency and reducing labor.
The four-wheel drive system offers excellent traction and mobility, making it ideal for mountain roads, muddy sites, rural projects, and uneven terrain.
The integrated water tank and water pump automatically supply water for accurate mixing, ensuring consistent concrete quality every batch.
Applications
The 1.5m³ self loading concrete mixer is ideal for:
- Residential housing construction
- Rural road projects
- Small bridges
- Farm construction
- Municipal engineering
- Foundation works
- Warehouse construction
- Remote construction sites
- Infrastructure maintenance
Key Features
1. Automatic Loading Bucket
The hydraulic bucket quickly loads sand, gravel, and cement, reducing manual labor.
2. Accurate Electronic Weighing
Built-in weighing system ensures precise batching and consistent concrete quality.
3. Efficient Mixing Drum
The heavy-duty spiral blades provide fast, uniform mixing with excellent concrete consistency.
4. Comfortable Operator Cabin
- Wide visibility
- Ergonomic controls
- Adjustable seat
- Easy operation
- Suitable for long working hours
5. Durable Chassis
Heavy-duty frame and reinforced axles provide excellent stability and long service life.
Advantages
- Suitable for all-weather operation
- Save up to 70% labor costs
- Produce concrete directly on-site
- No need for a separate batching plant
- Lower transportation costs
- Fast return on investment
- Easy maintenance
- Reliable performance in remote areas
- High fuel efficiency
Technical Specifications
| Standard Configuration | Optional Configuration |
|---|---|
| Engine Model | Yunnei 490 Turbocharged Diesel Engine |
| Rated Power | 58 kW |
| Torque Converter | JBJ-278 Split Torque Converter |
| Drive Axle | JBJ-8T Permanent 4×4 Drive Axle |
| Drive System | Permanent Four-Wheel Drive (4WD) |
| Hydraulic Motor | A2FM63 Axial Piston Motor |
| Brake System | Air Brake, Dual Independent Circuit |
| Water Tank Capacity | 550 L |
| Tire Size | 23.5/70-16 × 4 |
| Cab Position | Rear Mounted |
| Air Conditioner | Optional |
| Maximum Travel Speed | ≤35 km/h |
| Rotary Support | Not Equipped |

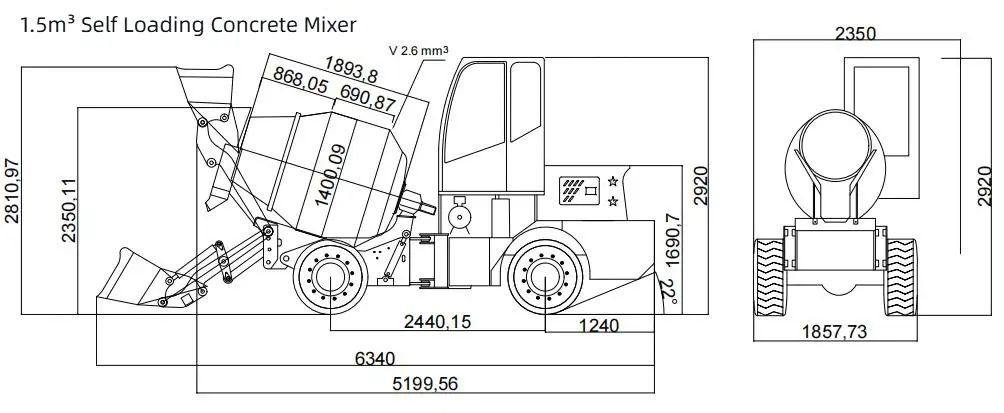

| Overall Dimensions (L × W × H) | 6340 × 1857 × 2920 mm |
| Mixing Drum Capacity | 1.93 m³ |
| Concrete Output per Batch | 1.5 m³ |
| Bucket Capacity | 0.55 m³ |
| Mixing Drum Speed | 20 rpm |
| Operating Weight | 4,500 kg |
| Ground Clearance | 292 mm |
| Hydraulic Oil Tank Capacity | 72 L |
| Fuel Tank Capacity | 72 L |
| Wheelbase | 2,440 mm |
| Maximum Gradeability | 30° |
|
|
Our Service
- Fast Worldwide Shipping
- Factory Direct Price
- Professional Pre-sales Consultation
- OEM & Customization Available
- Strict Quality Inspection Before Delivery
- Installation & Operation Guidance
- Spare Parts Supply
- Online Technical Support
- One-Year Warranty
Project Cases
Kenya – Rural Road Construction Project
A 1.5m³ self loading concrete mixer was used for rural road construction in remote areas. Its 4×4 drive and integrated mixing system enabled continuous concrete production, reducing labor costs and improving project efficiency.
Peru – Residential Housing Project
The mixer was deployed for residential building construction in mountainous regions. With on-site loading, mixing, and transportation, it ensured a steady supply of fresh concrete while shortening construction time.
FAQ
Yes. It uses a diesel engine and 4WD system, making it ideal for areas without electricity or infrastructure.
Only one trained operator is needed to complete all functions.
Yes. We offer genuine spare parts and long-term technical support.
We provide a 12-month warranty along with lifetime technical assistance.
