Overview
Factory Price | High Efficiency On-site Mixing – Build Faster. Mix Smarter. Cut Your Construction Cost.

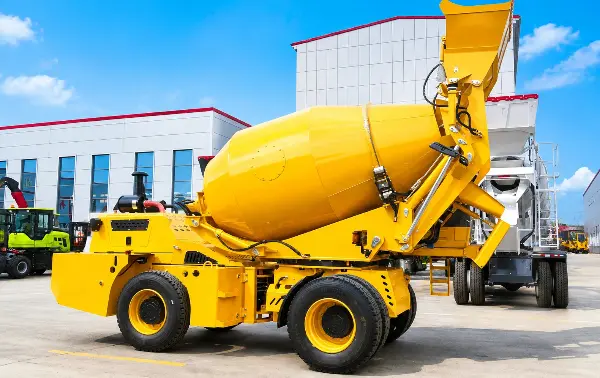

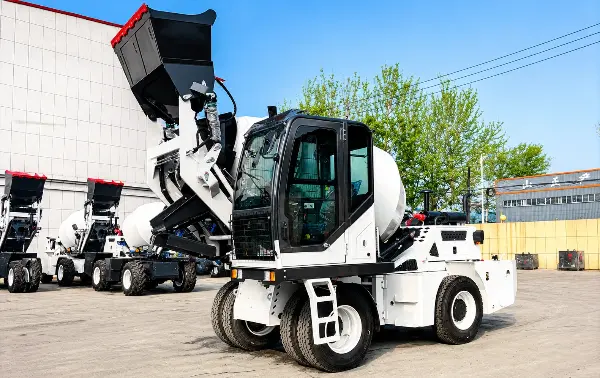

The 4m³ Self Loading Concrete Mixer is designed for high-efficiency on-site concrete production. With automatic loading, weighing, mixing, and discharge, it combines a loader, mixer, and transport truck into one powerful machine—perfect for remote construction sites and fast-paced projects.
👉 Ideal for road construction, building foundations, bridges, and rural infrastructure projects.
Why Choose Us
✔ One-Man Operation – Saves labor cost and improves efficiency
✔ 4m³ Large Mixing Capacity – Higher output per batch, fewer cycles
✔ Self-Loading System – Automatic loading of sand, stone, and cement
✔ 4WD Off-Road Chassis – Works in mud, gravel, mountains, and rough terrain
✔ Precise Weighing System – Ensures consistent concrete quality
✔ 360° Rotating Drum – Easy and flexible discharge
✔ Diesel Engine Power (High Torque) – Stable performance in remote areas
Applications
- Mountain & remote infrastructure
- Road & highway construction
- Building foundations
- Rural housing projects
- Bridge construction
Key Features
✔ Automatic Material Loading
Load aggregates directly from stockpiles without wheel loaders.
✔ Precise Mixing
Large mixing drum ensures uniform concrete quality for every batch.
✔ Integrated Water System
Automatically controls water supply to maintain accurate concrete consistency.
✔ Low Operating Cost
One machine replaces a loader, mixer, transporter, and several workers.
✔ Easy Maintenance
High-quality hydraulic and transmission components ensure long service life with minimal maintenance.
Advantages
No need for multiple machines or large crews—one operator handles the full process.
Produce fresh concrete anytime on-site without waiting for deliveries.
No electricity? No batching plant? No problem.
Eliminate transport fees, reduce material waste, and improve productivity.
Technical Specifications
| Tank & Power System | |
|---|---|
| Engine Model | Yuchai 4108 Turbocharged Diesel Engine |
| Rated Power | 91 kW |
| Torque Converter | JBJ-320 Split Torque Converter |
| Drive System | Full-Time 4WD (JBJ-15T Drive Axle) |
| Top Speed | ≤35 km/h |
| Tyre Specification | 12R22.5 (6 wheels) |
| Hydraulic Motor | A2FM63 Plunger Motor |
| Hydraulic Oil Tank | 120 L |
| Diesel Fuel Tank | 120 L |
| Operating System | |
| Cab Position | Front Cab |
| Air Conditioner | Optional |
| Brake System | Air Brake, Dual Independent Circuits |
| Swing Support | Φ1100 Gear Drive |
| Machine Parameters | |
| Overall Dimensions (L × W × H) | 7850 × 2872 × 3374 mm |
| Operating Weight | 9,000 kg |
| Wheelbase | 2,600 mm |
| Ground Clearance | 378 mm |
| Maximum Gradeability | 40° |
| Mixing Drum Capacity | 6.64 m³ |
| Concrete Output per Batch | 4.0 m³ |
| Bucket Capacity | 0.65 m³ |
| Mixing Speed | 20 rpm |
| Water Tank Capacity | 950 L |
| Standard Configuration | |
| |
| Optional Equipment | |
| |
Advantages Over Traditional Mixing
| Traditional Method | Our Self Loading Mixer |
|---|---|
| Multiple machines required | One machine completes all tasks |
| High labor cost | One operator only |
| Slow concrete production | Fast continuous batching |
| Material waste | Accurate weighing system |
| Difficult transportation | Mixing and transport in one machine |
| Higher operating costs | Lower total project cost |
Optional Configurations
- Air-conditioned cabin
- Central lubrication system
- Electronic weighing system
- Reverse camera system
- Water tank upgrade (higher capacity)
Quality You Can Trust
Every machine undergoes strict quality inspection before delivery.
We use:
- Premium hydraulic components
- Durable mixing drum
- Heavy-duty chassis
- Reliable diesel engine
- Wear-resistant mixing blades
- Reinforced bucket structure
Our machines are designed for continuous operation in demanding construction environments.
Our Service
- Factory Direct Price
Purchase directly from the manufacturer with competitive pricing.
- Custom Configuration
Optional cabin, air conditioning, camera system, and customized colors are available.
- Fast Delivery
Efficient production and global shipping ensure timely delivery.
- Spare Parts Support
Complete spare parts inventory with fast worldwide supply.
- Technical Assistance
Professional engineers provide installation guidance, operation training, and lifetime technical support.
- Warranty
Comprehensive warranty and responsive after-sales service for long-term reliability.
Project Cases
Malawi – Rural Road Project
Used in a rural road construction project with no nearby batching plant. The 4m³ self loading mixer provided on-site concrete production, working smoothly on rough and muddy roads. It helped the contractor reduce transport delays and speed up project progress.
Sri Lanka – Housing & Infrastructure Project
Applied in a suburban housing and small infrastructure project. The machine ensured continuous on-site concrete supply for foundations and road works. It improved efficiency, reduced waiting time, and lowered overall construction cost.
FAQ
Yes. Engine and configuration options can be customized according to your market and project requirements.
Yes. We offer operation guidance, spare parts supply, online technical support, and comprehensive after-sales service.
Yes. We offer genuine spare parts and long-term technical support.
We provide a 12-month warranty along with lifetime technical assistance.
