Overview
High Efficiency, Superior Performance for Modern Crushing Needs

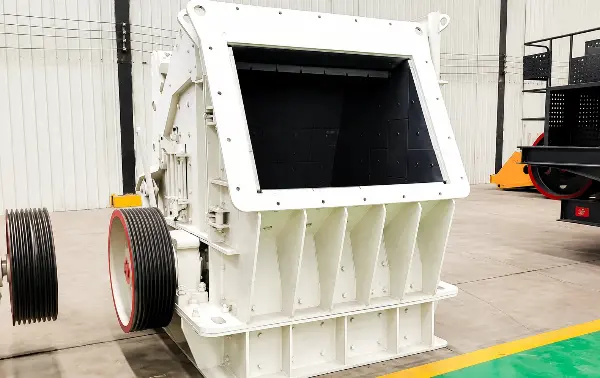

The European Version Impact Crusher is a next-generation crushing machine designed with advanced European technology. It is widely used in mining, quarrying, construction waste recycling, and aggregate production. With high crushing efficiency and excellent particle shape, it is the ideal solution for modern stone processing plants.
Whether you are processing limestone, granite, basalt, river stone, or construction debris, this impact crusher delivers stable performance and superior output quality.
Applications
Our Single-cylinder Hydraulic Cone Crusher is widely used in:
- Mining industry
- Quarry aggregate production
- Highway & railway construction
- Concrete batching plants
- Metal ore crushing
- Sand & gravel production lines
Materials It Can Handle
- Granite
- Basalt
- Limestone
- River Pebbles
- Quartz
- Iron ore (secondary crushing stage)
Why Choose Us
Optimized rotor design and heavy-duty impact plates significantly increase crushing force, improving output capacity by up to 20–30% compared to traditional impact crushers.
Produces cubical, well-graded aggregates with low needle and flake content—ideal for concrete, asphalt, and road construction.
Equipped with high-chromium blow bars and reinforced liner plates, ensuring longer service life and reduced maintenance costs.
Easy maintenance and fast replacement of wear parts reduce downtime and improve operational efficiency.
Heavy-duty rotor structure ensures smooth operation even under continuous high-load working conditions.
Deep cavity rotor and large feed opening ensure higher crushing ratio and increased throughput.
Working Principle
The material is fed into the crushing chamber and is hit by the high-speed rotating rotor. After being crushed by the impact force, the material collides with impact plates and is further broken into smaller particles. The final product is discharged from the bottom outlet with adjustable size control.
Technical Advantages
- High-strength welded steel frame
- Heavy-duty rotor design
- Hydraulic opening system for easy maintenance
- Adjustable impact plates for precise output size
- Low energy consumption with high output ratio
Technical Specifications
| Model | Specification | Feed Opening Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| PFW1214 Three-cavity | Φ1150 × 1400 | 570 × 1430 | ≤250 | 90–190 | 132–160 | 2550 × 2310 × 2100 |
| PFW1315 Three-cavity | Φ1300 × 1500 | 625 × 1530 | ≤300 | 150–280 | 160–200 | 2960 × 2570 × 2380 |
| PFW1318 Three-cavity | Φ1300 × 1800 | 625 × 1830 | ≤300 | 220–350 | 200–250 | 2960 × 2870 × 2380 |
| PFW1415 Three-cavity | Φ1400 × 1500 | 860 × 1530 | ≤300 | 280–350 | 200–250 | 3120 × 2650 × 2660 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
After-Sales Support
WhInstallation & Commissioning Guidance
- Operator Training
- Spare Parts Supply
- Technical Consultation
- 24/7 Online Support
- Lifetime Service Assistance
Our engineering team ensures your crushing plant operates efficiently and profitably throughout its lifecycle.

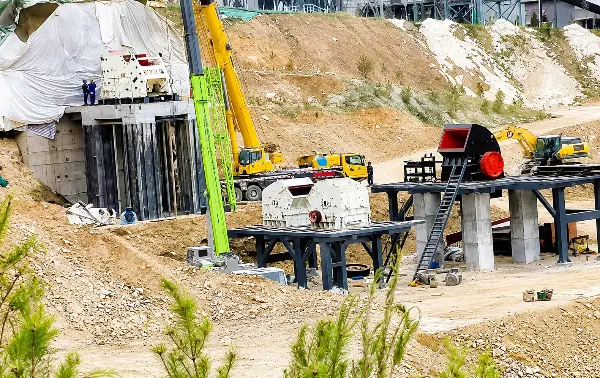

Project Cases
220tph Limestone Crusher in UAE
A customer in the United Arab Emirates selected our European Version Impact Crusher (PFW1315 model) for a limestone crushing project used in high-quality aggregate production for construction. The production line processes limestone and some river stone, with a stable output capacity of 180–220 tons per hour. The final products are well-shaped aggregates widely used for ready-mix concrete and road base materials. The equipment operates with high efficiency under hot climate conditions, delivering consistent performance and low maintenance cost, helping the customer improve overall production reliability and reduce operating downtime.
150t/h Granite Crusher in Burkina Faso
A customer in Burkina Faso adopted our European Version Impact Crusher (PFW1214 model) for a small quarry aggregate production line. The plant processes granite and basalt, with a stable production capacity of 90–150 tons per hour. The final crushed materials are used for road construction and local concrete batching projects. The equipment performs reliably under tough working conditions, delivering good particle shape, stable output, and low operating costs, helping the customer improve overall production efficiency.
FAQ
A jaw crusher is mainly for primary crushing, while the impact crusher produces better-shaped final aggregates and is ideal for secondary or fine crushing.
Yes, it can be integrated into mobile or stationary crushing plant setups depending on project requirements.
Yes, we provide full technical support, installation guidance, and long-term spare parts supply to ensure stable operation.
Yes. We provide tailor-made crushing solutions based on your material, capacity, output size, and project requirements, including full plant design and equipment selection.
