Overview
High Efficiency Crushing Solution for Hard Rock Materials
If you are looking for a powerful, stable, and cost-efficient crushing solution for medium-hard and hard materials, the Hydraulic Cone Crusher is one of the most reliable choices for modern mining and aggregate production lines.
Designed for high productivity, low operating cost, and consistent particle shape, it is widely used in mining, quarry, construction aggregate, and mineral processing plants.

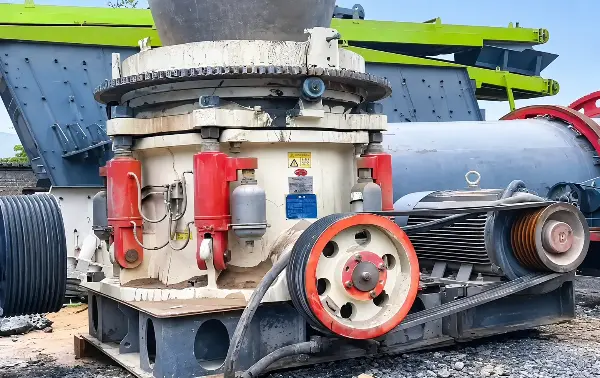

A Hydraulic Cone Crusher is an advanced crushing machine that uses hydraulic protection and adjustment systems to crush hard materials such as:
- Granite
- Basalt
- River pebbles
- Limestone
- Iron ore
- Quartz
It improves traditional cone crusher performance by adding hydraulic clearing, overload protection, and automatic adjustment, making operation safer and more efficient.
Applications
Hydraulic Cone Crushers are widely used in:
- Mining crushing plants
- Aggregate production lines
- Highway and railway construction
- Cement production raw material crushing
- Metal ore processing plants
Why Choose Us
Optimized crushing chamber design ensures higher throughput and better particle shape.
Automatically releases uncrushable materials, preventing machine damage and downtime.
Hydraulic setting system allows fast and precise discharge size control.
Strong frame structure ensures continuous operation even in high-hardness rock conditions.
Multi-layer crushing delivers uniform cubic aggregates ideal for concrete and asphalt production.
Suitable for materials with compressive strength up to 200 MPa, including limestone, shale, coal, and more.
Working Principle
The hydraulic cone crusher uses a rotating mantle within a concave bowl liner to compress and crush materials. The hydraulic system adjusts the discharge opening and provides overload protection by releasing uncrushable materials automatically, ensuring continuous and safe operation.
Technical Advantages
- Multiple cavity types (coarse / medium / fine)
- Hydraulic cleaning system for chamber blockage removal
- Automatic overload protection
- High-strength alloy crushing components
- Centralized lubrication system
- Stable discharge particle size control
Technical Specifications
| Model | Moving Cone Diameter (mm) | Cavity Type | Feed Opening Size (mm) | Discharge Opening Size (mm) | Capacity (T/H) | Motor Power (KW) |
|---|---|---|---|---|---|---|
| HPC-200 | 950 | C | 150 | 13 | 120–140 | 160 |
| HPC-200 | 950 | F | 76 | 6 | 55–180 | |
| HPC-300 | 1160 | C | 225 | 13 | 150–430 | 220 |
| HPC-300 | 1160 | F | 86 | 6 | 90–260 | |
| HPC-400 | 1400 | C | 290 | 13 | 190–610 | 315 |
| HPC-400 | 1400 | F | 100 | 6 | 108–320 | |
| HPC-500 | 1500 | C | 320 | 13 | 230–700 | 400 |
| HPC-500 | 1500 | F | 110 | 6 | 145–430 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
After-Sales Support
WhInstallation & Commissioning Guidance
- Operator Training
- Spare Parts Supply
- Technical Consultation
- 24/7 Online Support
- Lifetime Service Assistance
Our engineering team ensures your crushing plant operates efficiently and profitably throughout its lifecycle.

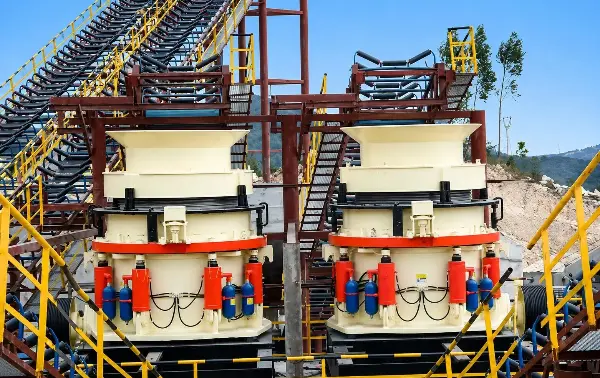

Project Cases
180tph Granite Crusher in Malaysia
In Malaysia, our Hydraulic Cone Crusher was successfully applied in a granite crushing production line. The equipment delivered stable performance with a capacity of 180–220 T/H, producing high-quality aggregates for road construction and concrete batching plants. The main processed material is granite, with strong hardness and high abrasion resistance. The system ensures consistent particle shape and efficient secondary crushing, significantly improving overall production efficiency and reducing operating costs.
200t/h Limestone Crusher in Botswana
In Botswana, our Hydraulic Cone Crusher was applied in a hard rock crushing plant processing basalt and granite for road construction aggregate production. The system achieved a stable capacity of 150–200 T/H, ensuring continuous and efficient secondary crushing performance. The final output was well-graded aggregate used in highway base and concrete mixing projects.
FAQ
The hydraulic system automatically adjusts the discharge opening, controls crushing force, and provides overload protection. When uncrushable material enters, the system releases it to prevent damage and ensure continuous operation
Yes. The discharge opening is adjustable via the hydraulic system, allowing precise control of final product size without stopping the machine
Yes. Our Hydraulic Cone Crusher can be integrated into mobile crushing plants for on-site crushing in quarrying, mining, and construction waste recycling. We provide custom mounting and integration solutions.
Yes, we provide full technical support, installation guidance, and optional on-site commissioning service.
