Overview
High-Efficiency Crushing for Hard Rock and Aggregate Production

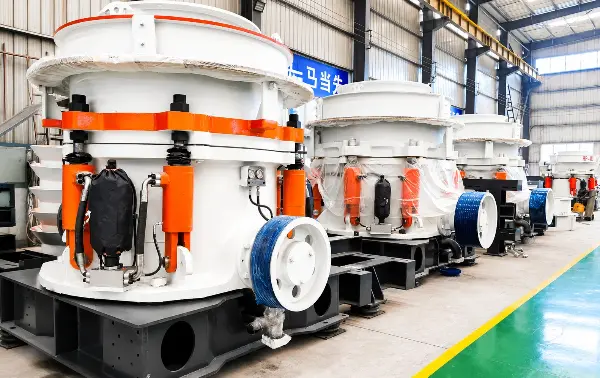

The HP Multi-Cylinder Hydraulic Cone Crusher is designed for secondary, tertiary, and fine crushing applications in mining, quarrying, and aggregate production. Featuring advanced hydraulic technology, intelligent automation, and optimized crushing chamber design, it delivers superior crushing performance, higher throughput, and lower operating costs.
Whether processing granite, basalt, river stone, iron ore, limestone, or other hard materials, the HP Cone Crusher provides reliable performance and consistent product quality.
Applications
HP Multi-Cylinder Hydraulic Cone Crushers are widely used in:
- Mining Operations
- Aggregate Production Plants
- Quarry Crushing Lines
- Highway Construction Projects
- Railway Ballast Production
- Concrete Aggregate Processing
- Cement Industry
- Metallurgical Industry
Suitable Materials
- Granite
- Basalt
- River Pebbles
- Quartz
- Limestone
- Iron Ore
- Copper Ore
- Diabase
- Dolomite
- Hard Rock Materials
Why Choose Us
The optimized crushing cavity and high crushing force enable greater material reduction and improved particle shape. Compared with traditional spring cone crushers, production capacity can increase by up to 35%.
The lamination crushing principle reduces needle-like particles and produces more uniform aggregates, meeting high-standard construction and concrete requirements.
Equipped with a fully automatic hydraulic adjustment system, the crusher can quickly adjust discharge settings, clear chamber blockages, and protect internal components from overload damage.
Advanced wear-resistant materials and optimized structure design reduce liner wear, minimize maintenance frequency, and lower overall operating costs.
Heavy-duty main shaft, strengthened frame, and high-quality bearings ensure long-term stable operation under demanding working conditions.
Hydraulic lifting and automatic adjustment systems simplify maintenance procedures and significantly reduce downtime.
Working Principle
Material enters the crushing chamber through the feed opening. The mantle performs a rotating and swinging motion under the drive of the eccentric assembly. The material is continuously compressed, crushed, and discharged through the adjustable outlet.
The hydraulic system monitors operating conditions in real time, automatically protecting the crusher against overload and ensuring stable production.
Technical Advantages
1. Multi-Cylinder Hydraulic Protection
Multiple hydraulic cylinders provide stronger crushing force and fast overload protection, ensuring maximum equipment safety.
2. Automated Adjustment
The intelligent control system automatically adjusts discharge openings and maintains optimal crushing conditions.
3. High Reduction Ratio
The advanced crushing chamber design achieves a larger reduction ratio while maintaining excellent particle shape.
4. Energy-Saving Design
Lower energy consumption per ton of material processed helps reduce production costs and improve profitability.
5. Long Service Life
Premium wear-resistant liners and robust mechanical components extend service intervals and reduce replacement costs.
Technical Specifications
| Model | Chaber Type | Feed Opening Size (mm) | Min. Discharge Opening (mm) | Capacity (t/h) | Standard Motor Power (kW) | Max. Motor Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| HPT300 | C1 (Extra Coarse) | 230 | 25 | 220-440 | 220 | 250 | 2725 × 2110 × 2871 |
| C2 (Coarse) | 210 | 19 | 190-380 | ||||
| M (Medium) | 150 | 16 | 175-320 | ||||
| F1 (Fine) | 105 | 13 | 145-280 | ||||
| F2 (Extra Fine) | 80 | 10 | 110-240 | ||||
| HPT500 | C1 (Extra Coarse) | 330 | 38 | 425-790 | 400 | 400 | 2800 × 3480 × 4050 |
| C2 (Coarse) | 290 | 30 | 370-700 | ||||
| M (Medium) | 210 | 22 | 330-605 | ||||
| F1 (Fine) | 135 | 16 | 270-535 | ||||
| F2 (Extra Fine) | 95 | 13 | 220-430 | ||||
| HPT800 | C1 (Extra Coarse) | 350 | 38 | 570-1200 | 630 | 630 | 3970 × 3345 × 4235 |
| C2 (Coarse) | 299 | 32 | 520-1050 | ||||
| M (Medium) | 265 | 25 | 475-950 | ||||
| F1 (Fine) | 220 | 16 | 370-800 | ||||
| F2 (Extra Fine) | 150 | 13 | 310-600 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
Optional Configurations
- PLC intelligent control system
- Remote monitoring system
- Dust suppression integration
- Mobile or stationary crushing solutions
After-Sales Support
WhInstallation & Commissioning Guidance
- Operator Training
- Spare Parts Supply
- Technical Consultation
- 24/7 Online Support
- Lifetime Service Assistance
Our engineering team ensures your crushing plant operates efficiently and profitably throughout its lifecycle.

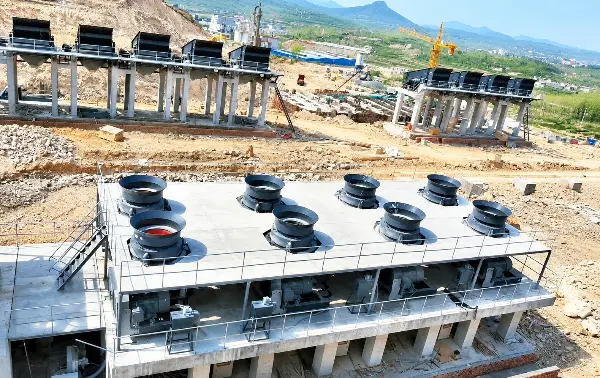

Project Cases
300tph Andesite Crusher in El Salvador
A quarry owner in El Salvador selected the HPT500 Multi-Cylinder Hydraulic Cone Crusher for a 300 TPH andesite aggregate production line. The crusher delivers stable output, excellent particle shape, and low maintenance requirements, helping the customer meet the growing demand for road construction materials.
400t/h Limestone Crusher in Egypt
A construction materials company in Egypt selected the HPT500 Multi-Cylinder Hydraulic Cone Crusher for a 450 TPH limestone crushing project. The crusher provides high production efficiency, consistent product size, and reliable performance for cement and infrastructure applications.
FAQ
Yes. It is often installed as part of a complete mineral processing or crushing line, and suppliers can usually help match it with feeders, screens, and conveyors.
The standard warranty is 12 months from shipment date or 1,000–2,000 operating hours, depending on contract terms. Extended warranty options are available upon request.
Yes — and this is actually a key part of keeping the crusher profitable long-term.
Yes. We provide tailor-made crushing solutions based on your material, capacity, output size, and project requirements, including full plant design and equipment selection.
