Reliable Hammer Crusher for Medium Hard and Fragile Materials

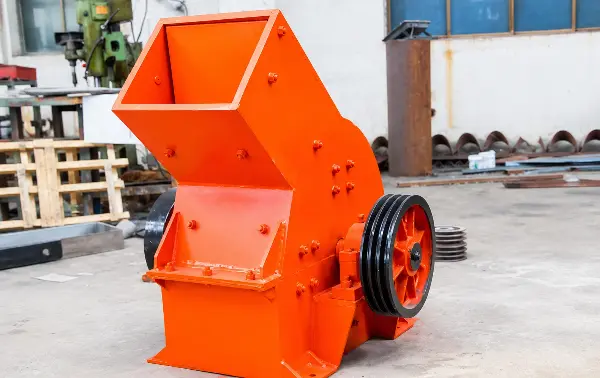

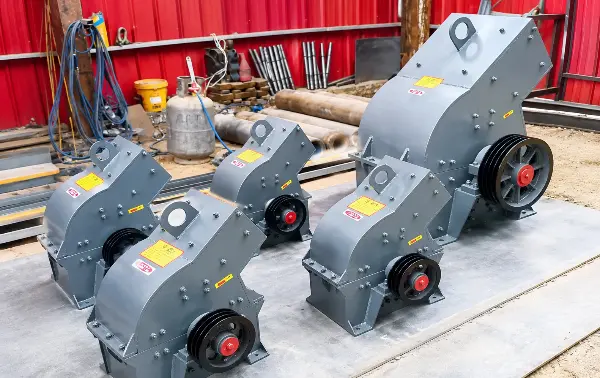

The PC Hammer Crusher is a high-performance crushing machine designed for crushing medium-hard and brittle materials such as limestone, coal, gypsum, brick, shale, and construction waste. With large crushing ratio, high capacity, and stable operation, it is widely used in mining, cement, building materials, and aggregate production industries.
If you are looking for a cost-effective, energy-saving, and easy-maintenance crusher, the PC Hammer Crusher is your ideal solution.
Applications
Our PC Hammer Crusher is widely used in:
- Mining industry
- Cement production lines
- Aggregate production plants
- Road construction projects
- Recycling construction waste
Applicable Materials
The PC Hammer Crusher is suitable for crushing:
- Limestone
- Coal
- Gypsum
- Shale
- Brick & tile waste
- Construction debris
- Soft to medium-hard stone
Why Choose Us
One-step crushing process reduces material into required particle size, saving time and cost.
Processing capacity ranges from 5–300 t/h, suitable for small to large production lines.
Compact design, fewer wear parts, and easy replacement reduce downtime and maintenance cost.
Optimized rotor design ensures lower energy consumption and higher output.
Produces consistent finished material, ideal for concrete, road base, and construction use.
Suitable for materials with compressive strength up to 200 MPa, including limestone, shale, coal, and more.
Working Principle
The PC Hammer Crusher works by high-speed rotating hammers:
- Unqualified particles are re-crushed until meeting size standard.
- Motor drives rotor to rotate at high speed (900–1450 r/min)
- Materials enter the crushing chamber
- Hammers strike, impact, cut, and grind materials
- Qualified particles pass through grate bars
Technical Advantages
- Optimized crushing chamber increases material impact frequency
- High-speed rotor enhances crushing ratio
- Energy-saving motor reduces operational costs
- Stable performance with low vibration and noise
Technical Specifications
| Model | Max Feed Size (mm) | Output Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| PCФ400×300 | ≤200 | ≤25 | 5–10 | 11 | 0.8 | 900 × 670 × 860 |
| PCФ600×400 | ≤250 | ≤30 | 10–22 | 22 | 2.26 | 1200 × 1050 × 1200 |
| PCФ800×600 | ≤250 | ≤35 | 18–40 | 55 | 4.8 | 1310 × 1180 × 1310 |
| PCФ1000×800 | ≤350 | ≤35 | 25–50 | 75 | 5.9 | 1600 × 1390 × 1575 |
| PCФ1000×1000 | ≤500 | ≤35 | 30–80 | 90 | 8 | 1800 × 1590 × 1775 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
After-Sales Support
WhInstallation & Commissioning Guidance
- Operator Training
- Spare Parts Supply
- Technical Consultation
- 24/7 Online Support
- Lifetime Service Assistance
Our engineering team ensures your crushing plant operates efficiently and profitably throughout its lifecycle.
Project Cases
50tph Coal Crusher in South Africa
Our PC Hammer Crusher was successfully installed in South Africa for a coal crushing project. Designed to process raw coal with a feed size of up to 200 mm, the plant delivers a stable capacity of 50 TPH, producing uniform output for power generation and industrial fuel applications. The customer benefits from high crushing efficiency, low operating costs, and reliable long-term performance.
40t/h Limestone Crusher in Philippines
A construction aggregate project in the Philippines uses our crushing plant to process limestone and river pebbles. The production line operates with a stable capacity of 40 t/h, producing high-quality aggregates for concrete batching plants and road base materials.
FAQ
Hammerhead lifespan depends on material hardness and abrasiveness:
For limestone, coal, gypsum: 2–4 months
For more abrasive materials: 1–2 months
Hammerheads are made from high manganese steel or alloy materials for extended service life.
Yes. We offer:
1. Custom rotor speed and hammer design
2. Adjusted discharge size
3. Diesel engine option (mobile version)
4. Different motor powers (11–132 kW)
5. Reversible or irreversible hammer configuration.
Yes. The optimized rotor design and energy-saving motor reduce power consumption while maintaining high crushing efficiency.
Yes, we provide full technical support, installation guidance, and optional on-site commissioning service.
