Overview
Crush Limestone, Granite, Concrete & More with High Output

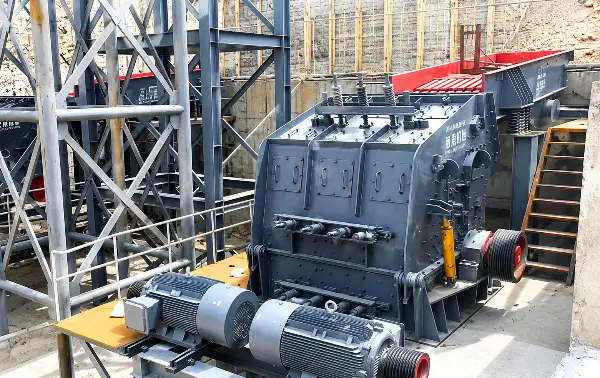

Looking for a reliable PF Impact Crusher for your quarry, mining, or construction project?

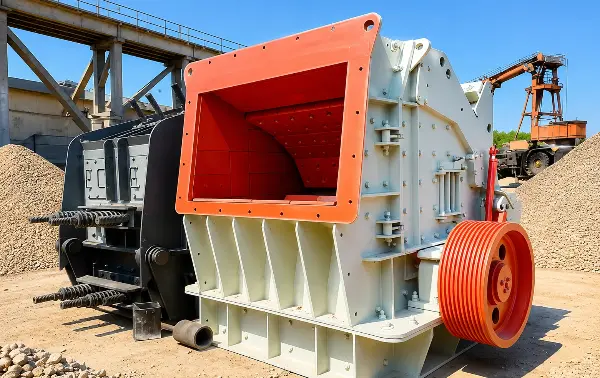

Our PF Series Impact Crusher delivers high crushing efficiency, excellent particle shape, low operating cost, and stable performance, making it an ideal solution for crushing medium-hard materials.
With over 40 years of manufacturing experience, our crushers have been exported to 160+ countries, helping customers improve productivity while reducing maintenance costs.
Applications
PF Impact Crusher is widely used for crushing:
- Limestone
- Granite
- Basalt
- River Stone
- Dolomite
- Concrete Waste
- Construction Waste
- Coal
- Quartz
- Gypsum
Suitable for:
- Aggregate Production
- Quarry Plants
- Mining Projects
- Road Construction
- Concrete Plants
- Recycling Plants
Why Choose Us
Large feed opening and powerful rotor provide excellent crushing efficiency with fewer crushing stages.
The impact crushing principle produces uniform particle shape, ideal for concrete, asphalt, and road construction.
Hydraulic adjustment allows quick control of discharge size without complicated operations.
High-strength rotor and wear-resistant blow bars ensure long service life and reliable operation.
Easy-access maintenance design reduces downtime and lowers operating expenses.
Premium bearings, precision manufacturing, and balanced rotor provide smooth operation even under heavy loads.
Working Principle
The motor drives the rotor to rotate at high speed.
After entering the crushing chamber, materials are impacted by the high-speed blow bars, then thrown onto the impact plates for secondary crushing. This repeated impact process continues until the material reaches the required size before being discharged from the bottom of the crusher.
This impact crushing method creates high-quality cubical aggregates with minimal flaky particles.
Technical Advantages
- Large feed opening
- High reduction ratio
- Excellent particle shape
- Adjustable discharge size
- Wear-resistant blow bars
- Hydraulic opening device
- Easy maintenance
- Low energy consumption
- Stable operation
- Long service life
Technical Specifications
| Model | Rotor Size | Feed Opening (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| PF-1007 | Φ1000 × 700 | 400 × 730 | ≤250 | 15–60 | 45 | 2319 × 1654 × 2558 |
| PF-1010 | Φ1000 × 1050 | 400 × 1080 | ≤300 | 50–90 | 55 | 2319 × 2001 × 2558 |
| PF-1210 | Φ1250 × 1050 | 450 × 1060 | ≤300 | 80–150 | 90 | 2585 × 2053 × 2809 |
| PFV-1214 | Φ1250 × 1400 | 450 × 1440 | ≤300 | 100–200 | 132 | 2582 × 2403 × 2809 |
| PFV-1315 | Φ1320 × 1500 | 550 × 1530 | ≤350 | 130–280 | 160 | 2930 × 2761 × 3053 |
| PFV-1320 | Φ1320 × 2000 | 610 × 1900 | ≤500 | 180–400 | 220 | 3224 × 3175 × 2706 |
| PFV-1520 | Φ1500 × 2000 | 830 × 2040 | ≤700 | 300–550 | 315–400 | 3959 × 3564 × 3330 |
| PFV-1820 | Φ1800 × 2000 | 1260 × 2040 | ≤800 | 600–800 | 630–710 | 4400 × 3866 × 4009 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
Spare Parts Available
We supply genuine spare parts for all PF models, including:
- Blow Bars
- Impact Plates
- Side Liners
- Rotor
- Bearings
- Shafts
- Adjustment Components
Fast delivery helps minimize production downtime.
After-Sales Support
WhInstallation & Commissioning Guidance
- Operator Training
- Spare Parts Supply
- Technical Consultation
- 24/7 Online Support
- Lifetime Service Assistance
Our engineering team ensures your crushing plant operates efficiently and profitably throughout its lifecycle.
Project Cases
80 TPH Concrete Recycling Project in Indonesia
A customer in Indonesia selected the PF-1210 Impact Crusher to recycle waste concrete at 80 TPH. The recycled aggregates are reused in local construction projects, reducing disposal costs and improving resource utilization.
120 TPH Dolomite Crushing Line in Uzbekistan
A PF-1214 Impact Crusher is working in Uzbekistan, processing 120 TPH of dolomite. The final products meet the requirements for construction aggregates, and the customer is satisfied with the crusher’s wear resistance and productivity.
FAQ
Yes. We offer complete crushing plant solutions from design and manufacturing to installation and after-sales support.
An impact crusher usually gives a more cubic final product, better shaping, and a higher reduction ratio for secondary crushing applications.
Yes, impact crushers can handle some wet or sticky materials better than many other crusher types because they typically do not rely on a bottom sieve plate.
Yes, we provide full technical support, installation guidance, and optional on-site commissioning service.
