Overview
High Efficiency Feeding Equipment for Crushing & Screening Plants

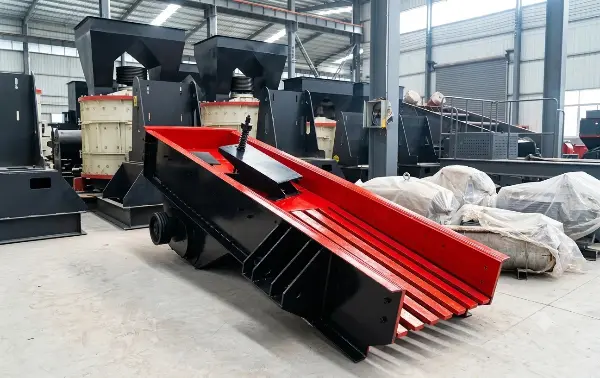

A Vibrating Feeder is an essential feeding machine used to uniformly and continuously feed bulk materials such as stone, ore, gravel, and construction waste into crushers, screens, or conveyor systems.
It ensures stable material flow, prevents blockages, and improves the overall efficiency of crushing and screening production lines.
Applications
Widely used in:
- Construction waste recycling plants
- Stone crushing production lines
- Mining and mineral processing plants
- Sand making plants
- Cement industry
- Metallurgy & chemical industry
Applicable Materials
- Limestone
- Granite
- Basalt
- River stone
- Iron ore
- Coal
- Construction waste
- Quarry aggregates
Why Choose Us
Uniform vibration ensures consistent material flow, preventing overloading or underfeeding of crushers.
Built with high-strength steel plate for long service life even in harsh mining environments.
Easily control feeding speed to match different crusher capacities.
Optimized vibration motor design reduces power usage while maintaining high efficiency.
Suitable for wet, sticky, or irregular materials without blockage.
We provide tailor-made vibrating feeder designs based on your raw materials, capacity requirements, and production line layout, ensuring perfect integration with your crushing system.
Working Principle
The vibrating feeder uses vibration motor excitation force to drive the trough body into periodic linear motion.
Material moves forward continuously under the combined effect of vibration and gravity, achieving smooth and controlled feeding.
Technical Specifications
| Model | Chute Size (mm) | Max Feeding Size (mm) | Capacity (t/h) | Eccentric Shaft Speed (r/min) | Power (kw) | Weight (t) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
| GZD-750×2500 | 2500×750 | 300 | 50-80 | – | 1.5×2 | 1.29 | 2580x1100x1400 |
| GZD-900×3000 | 3000×900 | 450 | 80-100 | – | 3.0×2 | 1.96 | 3200x1784x1500 |
| ZSW8530 | 3000×850 | 400 | 80-120 | 500-720 | 7.5 | 3.9 | 3110x1800x1600 |
| ZSW9638 | 3800×960 | 500 | 120-210 | 500-720 | 11 | 4.21 | 3882x1800x1600 |
| ZSW1142 | 4200×1100 | 580 | 200-430 | 500-800 | 15 | 4.85 | 4400x2050x1660 |
| ZSW1149 | 4900×1100 | 580 | 280-430 | 500-800 | 15 | 5.41 | 5200x2050x1700 |
| ZSW1360 | 6000×1300 | 600 | 400-560 | 500-800 | 22 | 7.8 | 6028x2580x2083 |
| ZSW1560 | 6000×1500 | 800 | 460-580 | 500-800 | 30 | 8.7 | 6086x2662x1912 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
After-Sales Support
- Global shipping support
- Installation guidance (online/video/on-site support)
- Spare parts supply within 48 hours
- Lifetime technical consultation
Project Cases
150 TPH Limestone Crushing Plant in Philippines
In a limestone quarry project in the Philippines, our vibrating feeder was installed to ensure stable and continuous feeding to the jaw crusher. The raw material had large size variation and high moisture content, which often caused blockage in previous equipment. After upgrading to our GZD series vibrating feeder, the feeding process became much more stable and uniform.
200 TPH Gold Ore Processing Plant in Sudan
In a gold ore processing plant in Sudan, our heavy-duty ZSW vibrating feeder was used to handle hard and abrasive ore materials. The feeder successfully maintained continuous feeding even under high load conditions, ensuring smooth operation of the crushing line.
FAQ
Yes. Feed rate is adjustable by changing motor speed, vibration frequency, or tray inclination.
Yes, we provide full installation guidance and optional on-site engineer support.
Yes. The vibrating feeder is designed to handle wet, sticky, and irregular materials, and helps reduce blockage in the feeding process.
Yes, we provide full technical support, installation guidance, and optional on-site commissioning service.
