Overview
Improve Sand Quality & Maximize Profit with Reliable Wheel Sand Washer

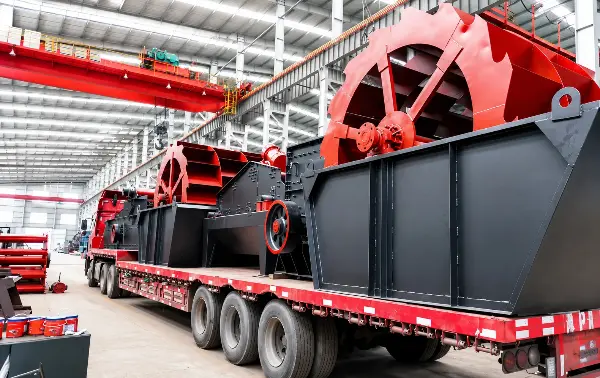

The Wheel Sand Washing Machine is an efficient cleaning equipment designed to remove impurities such as clay, dust, and other unwanted materials from sand. It ensures high-quality final sand with better gradation, making it ideal for construction, mining, and aggregate production industries.
With low water consumption, stable performance, and high output capacity, this machine is widely used in modern sand washing plants worldwide.
Applications
The wheel sand washer is widely used in:
Road and bridge engineering
Construction sand production
Quarry and mining plants
Concrete batching plants
Hydropower projects
Glass sand cleaning
Why Choose Us
The wheel bucket design ensures strong washing force, effectively removing mud and impurities from raw sand.
Optimized water recycling system reduces waste and improves sustainability.
Made with wear-resistant materials, suitable for long-term continuous operation.
Easy to install, operate, and maintain with low downtime cost.
Minimizes fine sand loss during washing, improving overall profitability.
Produces cleaner, higher-grade sand that meets construction standards, helping you sell at a better price and increase project profit margins.
Working Principle
The Wheel Sand Washing Machine uses a rotating wheel (bucket-type impeller) driven by a motor. Sand is fed into the washing tank, where it is lifted, washed, and dewatered before being discharged.
During the process:
- Wastewater and fine particles are discharged through overflow outlet
- Impurities are separated from sand
- Clean sand is lifted and discharged
Technical Specifications
| Model | Wheel Diameter (mm) | Max Feeding Size (mm) | Capacity (t/h) | Power (kW) | Overall Dimension (mm) |
|---|---|---|---|---|---|
| XSD2610 | Φ2600 | ≤10 | 30–60 | 7.5 | 3320 × 2125 × 2670 |
| XSD2900 | Φ2900 | ≤10 | 50–90 | 15 | 3810 × 2686 × 3085 |
| XSD3016 | Φ3000 | ≤10 | 80–120 | 18.5 | 3845 × 3000 × 3080 |
| XSD3220 | Φ3000 | ≤10 | 120–200 | 22 | 4150 × 3780 × 3400 |
| XSD3620 | Φ3600 | ≤10 | 150–280 | 30 | 4600 × 3780 × 3900 |
Capacity may vary depending on material hardness, moisture content, and feeding conditions.
After-Sales Support
We are committed to providing reliable and long-term support to ensure your sand washing plant operates efficiently and continuously.
✔ Installation Support
We provide detailed installation drawings, operation manuals, and remote technical guidance to help you set up the equipment smoothly.
✔ Spare Parts Supply
We supply a full range of original spare parts, ensuring fast replacement and minimal downtime for your production line.
✔ Technical Assistance
Our experienced engineers are available for online support and troubleshooting to solve any operational issues quickly.
✔ On-Site Service (Optional)
For large projects, we can arrange professional technicians for on-site installation, commissioning, and training.
✔ Lifetime Service Commitment
We provide long-term technical consultation to ensure stable performance throughout the machine’s lifecycle.

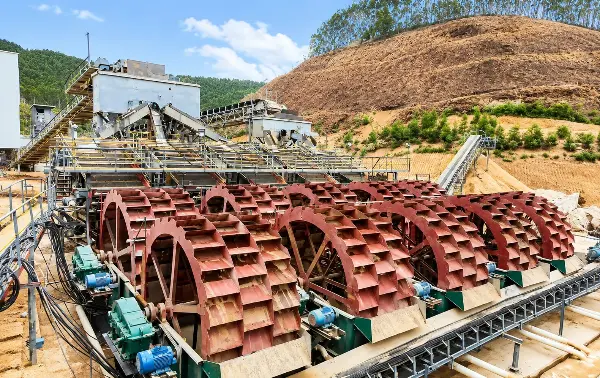

Project Cases
120 t/h Sand Washing Plant in South Africa
A 120 t/h sand washing plant in South Africa was equipped with our Wheel Sand Washing Machine to process river sand with high clay content. After installation, the system significantly improved sand purity and reduced impurities by over 90%, ensuring stable supply of high-quality construction sand for local infrastructure projects.
80 t/h Sand Washing Plant in Kenya
In Kenya, our Wheel Sand Washing Machine was used in a 60–80 t/h sand production line for a quarry project. The machine efficiently removed dust and fine particles from crushed sand, improving final sand quality and helping the customer increase selling price in the local construction market.
FAQ
It is suitable for river sand, quartz sand, construction sand, and artificial sand.
Yes, it effectively removes clay, dust, and impurities for high-quality sand output.
Yes, we offer customized solutions based on your project requirements.
No, it is designed with a water-saving system to reduce consumption.
