Overview
Powerful Diesel Concrete Pump for Reliable On-Site Concrete Delivery

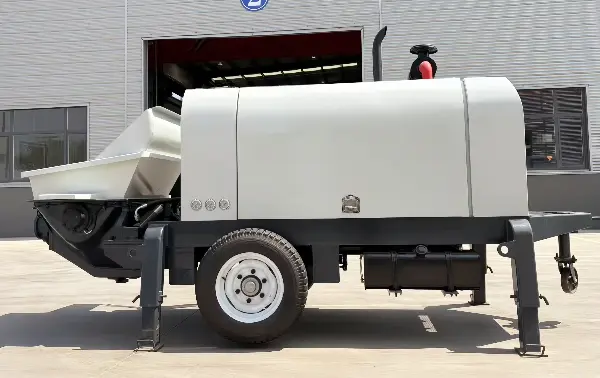

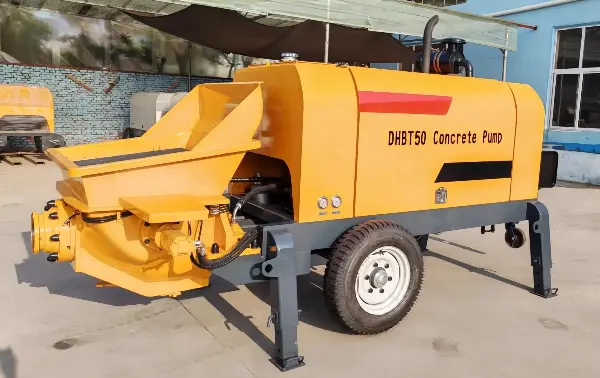

The DHB50-13-88 Diesel Concrete Pump is a high-performance hydraulic trailer pump designed for long-distance and high-pressure concrete pumping in demanding construction environments. Powered by a robust diesel engine, this machine is ideal for areas without stable electricity supply, making it the perfect solution for infrastructure, housing, roads, bridges, and rural development projects.
With stable output, strong pumping pressure, and durable components, it ensures continuous operation with minimal downtime and low maintenance cost.
Technical Advantages
1. High Pumping Capacity & Pressure
- Max theoretical output: 50 m³/h
- Max concrete pressure: 13 MPa
- Suitable for long-distance horizontal & vertical pumping
2. Powerful Diesel Engine System
- Equipped with heavy-duty diesel engine (88 HP class)
- Stable performance in off-grid and remote job sites
- Fuel-efficient operation with strong torque output
3. Advanced Hydraulic S-Valve System
- Reliable S-tube valve distribution system
- Smooth switching, reduced impact, and longer service life
- Ideal for continuous heavy-duty pumping
4. Durable & Heavy-Duty Structure
- Reinforced chassis for harsh construction environments
- Wear-resistant components for longer service life
- Designed for tropical, dusty, and high-temperature regions
5. Easy Operation & Low Maintenance
- Simple hydraulic control system
- Centralized lubrication system
- Reduced downtime and lower maintenance cost
Why Choose Us
✔ Strong pumping pressure for long-distance delivery
✔ Stable diesel power system for off-grid sites
✔ Lower fuel consumption compared to old models
✔ Easy maintenance with global spare parts support
✔ Proven performance in Africa, Asia, and Middle East markets
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
The DHB50-13-88 diesel concrete pump is widely used in:
🏗️ Building construction projects
🌉 Bridges and highway engineering
🛣️ Road and tunnel construction
🏡 Rural and urban housing projects
⚡ Power station & water conservancy projects
🌍 Remote areas without electricity supply
Technical Specification
| Item | Specification |
|---|---|
| Model | DHBT50-13-88R |
| Max Theoretical Concrete Output | 50 m³/h |
| Max Concrete Pumping Pressure | 13 MPa |
| Max Delivery Distance (Vertical / Horizontal) | 150 m / 450 m |
| Concrete Valve Type | S Valve (S Pipe Valve) |
| Concrete Cylinder (Diameter × Stroke) | Φ200 × 1000 mm |
| Outlet Inner Diameter | Φ180 mm |
| Delivery Pipe Inner Diameter | Φ125 mm |
| Max Aggregate Size |
Pebbles: 40 mm Gravel: 30 mm |
| Hopper Capacity × Height | 450 L × 1100 mm |
| Lubrication System | Automatic Greasing System |
| Remote Control | Wireless Remote Control |
| Item | Specification |
| Engine Type | Diesel Engine (Model 4108) |
| Rated Power | 88 kW |
| Rated Speed | 1800 rpm |
| Fuel Consumption | Approx. 15.8 L/h |
| Item | Specification |
| Hydraulic System Type | Open Loop System |
| Main Hydraulic Pump Displacement | 140 mL/r |
| Hydraulic System Pressure | 32 MPa |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Optional Configuration
- Electric start system / manual start
- High-pressure pipeline (100–300m support)
- Wear-resistant concrete cylinder
- Remote control system
- Automatic lubrication system
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Philippines – Housing Construction Project
The DHBT50-13-88R diesel concrete pump was used in a residential housing project. It ensured stable concrete delivery, improved pouring efficiency, and significantly reduced manual labor costs, helping the contractor speed up project progress.
Ethiopia – Road & Infrastructure Project
In a rural infrastructure project in Ethiopia, the pump operated smoothly without electricity supply. Its diesel power system provided reliable performance for continuous concrete pumping in remote and challenging site conditions.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
