Overview
Efficient Concrete Pumping Solution
Looking for a reliable and cost-effective concrete pumping solution for projects with stable power supply?

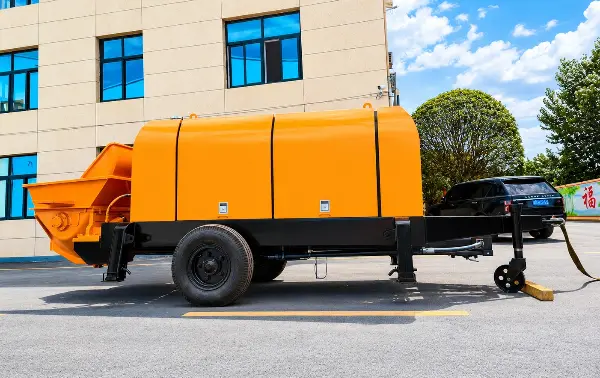

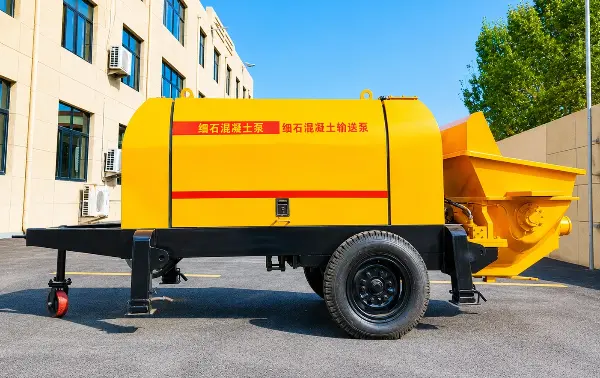

Our Electric Trailer Concrete Pump is designed for continuous concrete conveying in residential buildings, commercial construction, tunnels, bridges, and infrastructure projects. Powered by a high-performance electric motor, it delivers stable output, lower operating costs, and environmentally friendly performance compared with diesel-powered pumps.
With advanced hydraulic technology and durable components, our trailer-mounted concrete pumps provide high pumping efficiency, easy maintenance, and long service life, making them an ideal choice for contractors worldwide.
Why Choose Us
Electric power significantly reduces fuel expenses and maintenance costs, making it the most economical solution for long-term construction projects.
The optimized hydraulic system ensures smooth concrete delivery with minimal pressure fluctuation, improving construction efficiency.
Capable of transporting concrete over long horizontal distances and high-rise buildings while maintaining consistent performance.
No diesel emissions, lower noise levels, and reduced environmental impact—ideal for urban construction sites.
The intelligent electrical control system simplifies operation while reducing labor intensity.
Equipped with internationally recognized hydraulic components and wear-resistant delivery cylinders to ensure long service life.

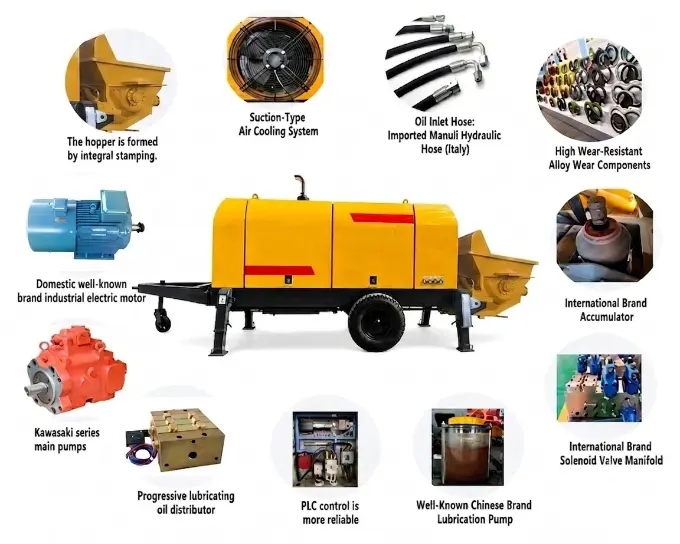

Components
Our Electric Trailer Concrete Pump is equipped with high-quality components from trusted brands to ensure stable performance, long service life, and low maintenance costs.
1. Electric Motor
Powered by a high-efficiency electric motor, providing reliable, energy-saving performance with low noise and zero emissions.
2. Main Hydraulic Pump
Features a world-renowned hydraulic pump (optional brands such as Kawasaki, Rexroth, or equivalent), delivering stable pressure, high efficiency, and long operating life.
3. Hydraulic Valves
Premium hydraulic valves ensure precise oil flow control, smooth pumping operation, and enhanced system reliability.
4. Hydraulic Cylinders
Heavy-duty hydraulic cylinders provide powerful and consistent pumping force, even during continuous operation.
5. S Valve System
The wear-resistant S Valve offers smooth concrete flow, minimizes pipe blockage, and supports long-distance pumping with excellent sealing performance.
6. Concrete Delivery Cylinders
Manufactured from high-strength alloy steel with wear-resistant inner surfaces, ensuring extended service life and reduced maintenance.
7. Hopper
Large-capacity hopper with an integrated mixing system keeps concrete evenly mixed, improving pumping efficiency and preventing material segregation.
8. Electrical Control System
Advanced PLC-based control system enables easy operation, automatic fault diagnosis, and real-time monitoring for safer and more efficient performance.
9. Lubrication System
Automatic centralized lubrication continuously supplies grease to key wear parts, reducing maintenance time and extending component life.
10. Chassis
Robust trailer chassis with heavy-duty axle and durable tires allows convenient transportation between construction sites.
11. Remote Control (Optional)
Wireless remote control enables operators to manage pumping operations from a safe distance, improving efficiency and job site safety.
12. Delivery Pipeline
High-pressure, wear-resistant steel pipelines are designed for reliable concrete delivery over long horizontal and vertical distances.
Applications
Our Electric Trailer Concrete Pump is widely used in:
- Residential Building Construction
- Commercial Buildings
- High-Rise Projects
- Bridge Construction
- Tunnel Engineering
- Road Construction
- Factory Foundations
- Water Conservancy Projects
- Infrastructure Development
Whether pumping fine stone concrete, commercial concrete, or mortar, our machine delivers reliable performance on every job site.
Technical Specification
| Model | Max. Output (m³/h) | Max. Pressure (MPa) | Motor Power (kW) | Hydraulic Pump | Pipe Diameter | Max. Aggregate (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HB40-13 | 40 | 13 | 45 | K3V112 | Φ80 | 30 | 2,800 |
| HB50-11 | 50 | 11 | 55 | K3V140 | Φ80 / Φ100 | 30 | 3,100 |
| HB50-11S | 50 | 11 | 55 | K3V140 | Φ80 / Φ100 / Φ125 | 30 | 3,100 |
| HB50-13 | 50 | 13 | 55 | K3V140 | Φ80 / Φ100 | 30 | 3,100 |
| HB60-13 | 60 | 13 | 90 | K3V112DT | Φ100 / Φ125 | 40 | 5,800 |
| HB80-13 | 80 | 13 | 110 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,300 |
| HB80-16 | 80 | 16 | 110 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,400 |
| HB80-18 | 80 | 18 | 132 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,500 |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Optional Configurations
To meet different project requirements, we provide:
- Various pumping capacities
- Different pumping pressures
- Remote control system
- Automatic lubrication
- High wear-resistant pipeline accessories
- Customized voltage (380V / 415V / 440V / 50Hz / 60Hz)
OEM and customized solutions are available.
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Indonesia – Residential Building Project
Our HB50-13 Electric Trailer Concrete Pump was used for a residential building project in Indonesia. The electric drive reduced operating costs while providing stable concrete pumping, helping the contractor complete the project efficiently.
Vietnam – Industrial Factory Project
The HB80-16 Electric Trailer Concrete Pump was applied in an industrial factory construction project in Vietnam. Its high pumping pressure and reliable performance ensured continuous concrete delivery and improved construction efficiency.
FAQ
Electric pumps have lower operating costs, less maintenance, lower noise, and zero diesel emissions, making them ideal for construction sites with reliable electricity.m.
Yes. We offer customized pumping capacity, motor power, voltage, and optional configurations according to your project requirements.
Yes. We provide installation guidance, technical support, spare parts supply, and online assistance throughout the machine’s service life.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
