Overview
Powerful Concrete Pumping for Projects Without Electricity

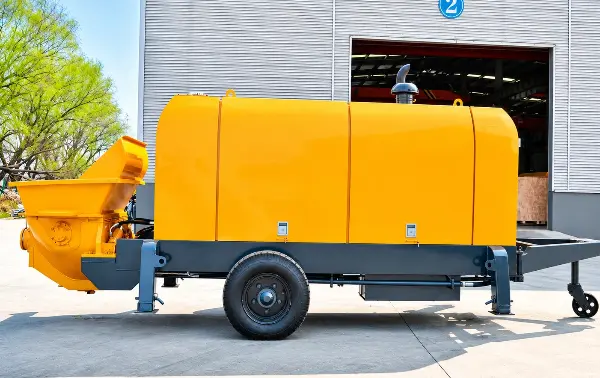

The Diesel Trailer Concrete Pump is designed for construction sites where electricity is unavailable or unstable. Powered by a reliable diesel engine, it delivers continuous concrete pumping with high pressure, long-distance conveying capability, and low operating costs.
Whether you are building high-rise buildings, bridges, highways, tunnels, rural housing, or industrial facilities, our diesel concrete pumps provide stable performance even in harsh working environments.
Our trailer-mounted concrete pumps are exported to more than 60 countries and are widely trusted by contractors in Africa, Southeast Asia, the Middle East, and South America.
Why Choose Us
Delivers 30–90 m³/h concrete output with high pumping pressure, ensuring stable, efficient, and continuous concrete delivery over long distances.
Powered by a reliable diesel engine, the pump operates without external electricity, making it ideal for remote and off-grid construction sites.
Premium hydraulic components provide stable performance, lower maintenance costs, and a longer service life.
The wear-resistant S Valve ensures excellent sealing, smooth concrete flow, and easy maintenance for various concrete mixes.
The trailer-mounted design allows easy towing, quick setup, and flexible movement between construction sites.
Designed for fuel efficiency and long service life, the pump reduces operating expenses while maximizing productivity and return on investment.

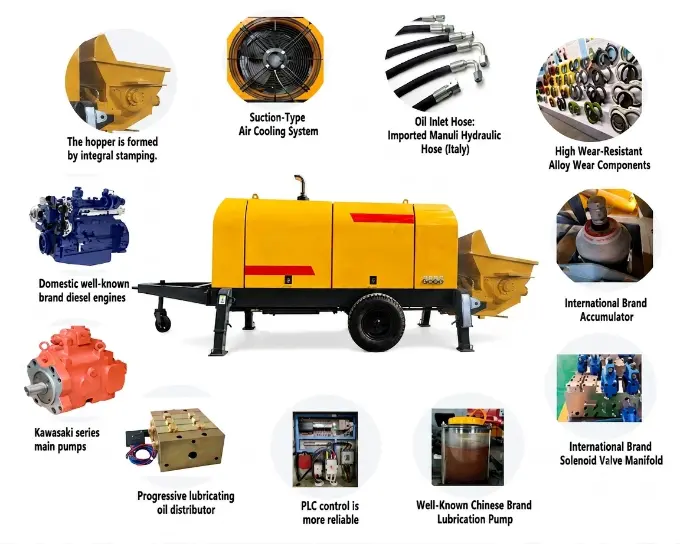

Components
Our Diesel Trailer Concrete Pump is built with premium components to ensure reliable performance, long service life, and easy maintenance.
Trailer Chassis – Strong structure for convenient transportation.

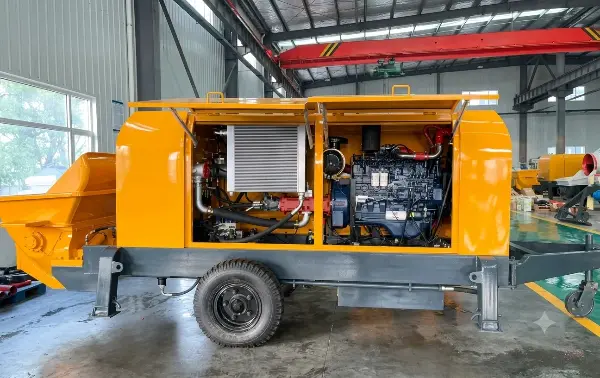

Diesel Engine – Powerful and fuel-efficient performance.
Main Hydraulic Pump – Stable hydraulic power for continuous operation.
S Valve – Wear-resistant design for smooth concrete pumping.
Hydraulic Cylinders – Durable construction for reliable pumping.
Concrete Hopper – Large-capacity hopper with efficient feeding.
PLC Control System – Intelligent operation and easy monitoring.
Automatic Lubrication System – Reduces wear and simplifies maintenance.
Applications
Our Diesel Trailer Concrete Pump is widely used in:
1. High-Rise Building Construction
Efficient vertical pumping for multi-story residential and commercial buildings.
2. Highway Construction
Continuous concrete delivery for roads, expressways, and infrastructure projects.
3. Bridge Engineering
Reliable long-distance pumping for bridge foundations and bridge decks.
4. Rural Housing Projects
Perfect for villages and remote construction sites without power supply.
5. Tunnel Construction
Stable pumping performance in underground projects.
6. Water Conservancy Projects
Suitable for dams, canals, and irrigation infrastructure.
7. Industrial Plants
Large-scale concrete placement for factories and warehouses.
Technical Specification
| Model | DHBT30.08.55 | DHBT30.10.55 | DHBT40.10.76 | DHBT50.11.82 | DHBT60.11.93 | DHBT60.13.129 | DHBT80.13.176 | DHBT80.16.176 |
|---|---|---|---|---|---|---|---|---|
| Main Oil Pump | Jinda 80 Plunger Pump | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 | Kawasaki 224 | Kawasaki 112 | Kawasaki 280 |
| Concrete Cylinder (mm) | 180×600 | 160×1000 | 180×1000 | 180×1000 | 180×1300 | 200×1650 | 200×1650 | 200×1650 |
| Hydraulic Cylinder (mm) | 90×600 | 90×1000 | 100×1000 | 100×1000 | 100×1300 | 125×1650 | 125×1650 | 140×1650 |
| PLC / Electrical | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens |
| Hydraulic Hose | Zhongmei | Manuli | Manuli | Manuli | Manuli | Manuli | Manuli | Manuli |
| Discharge Capacity (m³/h) | 30 | 30 | 35 | 40 | 60 | 60 | 80 | 80 |
| Conveying Distance (V/H m) | 50 / 150 | 50 / 200 | 50 / 200 | 50 / 200 | 80 / 300 | 100 / 350 | 120 / 450 | 120 / 450 |
| Max. Pressure (MPa) | 8 | 10 | 10 | 11 | 11 | 13 | 13 | 16 |
| Rated Speed (rpm) | 2200 | 1800 | 1800 | 2200 | 2400 | 2200 | 2200 | 2200 |
| Max. Aggregate (mm) | 35 | 25 | 35 | 35 | 35 | 40 | 40 | 40 |
| Hopper Volume (m³) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.80 | 0.50 | 0.80 |
| Feeding Height (mm) | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Pipe Diameter (mm) | 100 / 125 | 100 / 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Concrete Slump (mm) | 160–220 | |||||||
| Dimensions (mm) | 3800×1750×1750 | 4000×1700×1950 | 4600×1700×1950 | 4600×1700×1950 | 5300×1750×2200 | 6300×2100×2300 | 5200×2100×2300 | 6300×2100×2500 |
| Weight (kg) | 2300 | 2800 | 3000 | 3200 | 3600 | 5800 | 6000 | 6300 |
| Engine | Weifang Huadong 55 kW | Yuchai 78 kW | Yuchai 78 kW | Yuchai 78 kW | Yuchai 93 kW | Weichai 129 kW | Weichai 176 kW | Weichai 176 kW |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Optional Configuration
Optional Configurations
We offer multiple configurations to meet different project requirements.
- Pumping capacity: 30–90 m³/h
- Diesel engines:
- Weichai
- Cummins
- Deutz
- Hydraulic system options
- Remote control system
- Automatic lubrication
- Hopper vibrator
- Wear-resistant pipeline
OEM and customized solutions are available.
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Uganda – Road & Infrastructure Projects
Used in highway and rural road construction, ensuring stable concrete pumping performance in off-grid areas with limited electricity supply.
Uzbekistan – Industrial & Infrastructure Projects
Applied in large-scale infrastructure and industrial construction projects, delivering reliable long-distance concrete pumping in challenging working conditions.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
