High-Performance Trailer Concrete Pump for Heavy Construction Projects

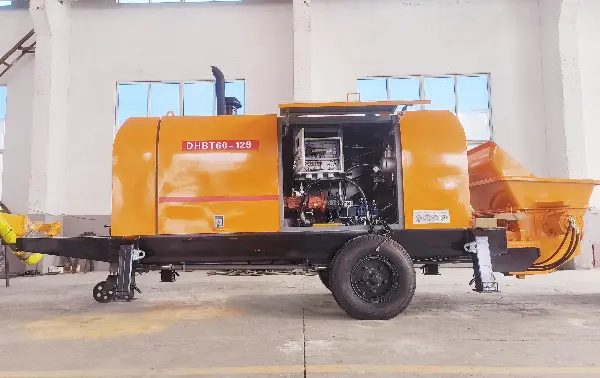

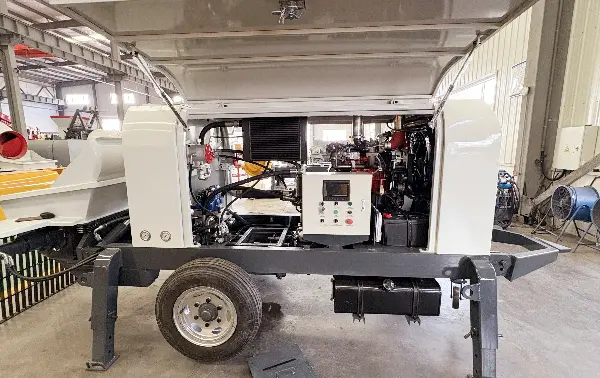

Looking for a powerful, reliable, and fuel-efficient concrete pumping solution for medium to large construction projects? The DHB60-13-129 Diesel Concrete Pump is designed to deliver stable performance, long pumping distance, and high efficiency, even in remote job sites without electricity.
Built with a heavy-duty hydraulic system and a powerful diesel engine, this model is widely used in roads, bridges, buildings, tunnels, and rural infrastructure projects across Africa, Southeast Asia, the Middle East, and South America.
Technical Advantages
🚀 Strong Pumping Capacity
- Theoretical output: 60 m³/h
- Stable continuous pumping for high-demand projects
- Ideal for medium to large construction sites
🔥 Powerful Diesel Engine (129 kW)
- High-torque diesel engine ensures strong field performance
- Works perfectly in off-grid and remote areas
- Fuel-efficient and cost-saving operation
🏗️ Long Pumping Distance
- Vertical pumping: up to 150 meters
- Horizontal pumping: up to 800–1000 meters
- Perfect for high-rise buildings and long-distance delivery
🧠 Advanced Hydraulic System
- Stable S-valve distribution system
- Smooth concrete flow with less blockage risk
- Reliable operation under harsh conditions
🛠️ Durable & Low Maintenance Design
- Heavy-duty steel structure
- Wear-resistant parts for long service life
- Easy maintenance and low downtime
Why Choose Us
- Stable performance in extreme working environments
- Lower fuel consumption compared to similar models
- Easy operation with PLC control system
- Fast delivery & global shipping support
- Spare parts supply guaranteed
- Trusted by contractors in 160+ countries
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
The DHB60-13-129 Diesel Concrete Pump is widely used in:
🌍 Remote infrastructure projects (no electricity available)
🏗️ Residential & commercial building construction
🌉 Bridge & highway projects
🚇 Tunnel engineering
🛣️ Rural road construction
🏢 High-rise concrete pouring
Technical Specification
| Item | Specification |
|---|---|
| Max. Theoretical Concrete Output | 60 m³/h |
| Max. Concrete Pumping Pressure | 13 MPa |
| Maximum Pumping Frequency | 12 times/min |
| Distribution Valve Type | S Pipe Valve |
| Main Hydraulic Pump | Kawasaki Double 112 |
| Main Electric Components | LS / Omron / Siemens |
| Concrete Cylinder | Φ200 × 1650 mm |
| Oil Cylinder | Φ125 × 1650 mm (Xieli Cylinder) |
| Outlet Diameter | Φ180 mm |
| Loading Height | 1400 mm |
| Diesel Engine Power | 129 kW |
| Rated Speed | 1900 r/min |
| Hydraulic System Type | Open Circuit |
| Max. System Pressure | 32 MPa (Pumping System) |
| Mixing System Pressure | 12 MPa |
| Max. Mixing Speed | 40 r/min |
| Hydraulic Oil Tank Capacity | 600 L |
| Max. Aggregate Size | 40 mm |
| Delivery Pipe Diameter | Φ125 mm |
| Dimensions (L × W × H) | 6500 × 2000 × 2300 mm |
| Total Weight | 6000 kg |
| Drag Speed | ≤ 8 km/h |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Uzbekistan – Urban Infrastructure Development
Used in urban housing and road construction projects, the machine delivered stable high-pressure pumping performance. Contractors reported improved construction efficiency and reduced labor costs, especially in large-scale residential and municipal infrastructure developments.
Kenya – Infrastructure Expansion Project
Deployed in rural road construction, the diesel system ensured stable operation in areas without power supply, providing continuous and efficient pumping performance.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
