Overview
Powerful Diesel Concrete Pump for High Efficiency & Long-Distance Delivery

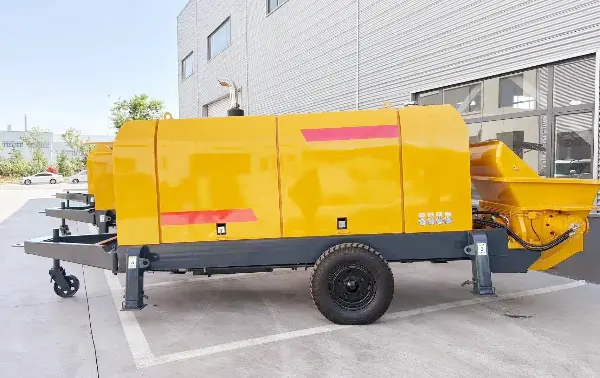

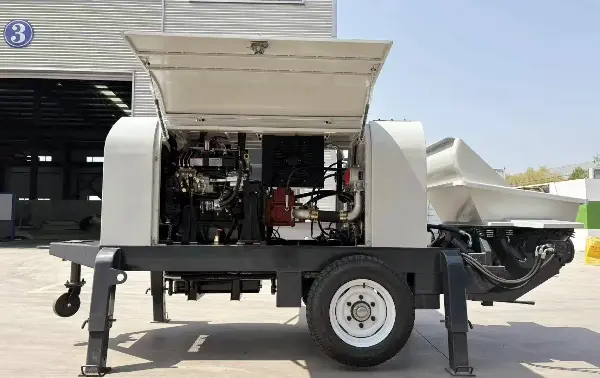

The DHB60-16-142 Diesel Concrete Pump is a high-performance trailer-mounted concrete pumping machine designed for demanding construction environments where electricity is unavailable or unstable. With a strong diesel engine system and advanced hydraulic technology, it delivers stable, continuous, and efficient concrete pumping for large-scale projects such as buildings, bridges, roads, tunnels, and infrastructure works.
Whether you are working in remote areas or large urban construction sites, this diesel concrete pump ensures high output, long pumping distance, and low maintenance cost, helping contractors reduce labor and improve project efficiency.
Technical Advantages
✔ Strong Diesel Power for Remote Sites
No electricity required. The high-power 142kW diesel engine ensures continuous operation even in off-grid or rural construction sites.
✔ High Pressure & Long-Distance Pumping
With 16 MPa high pressure, the pump can easily handle high-rise building projects and long-distance concrete delivery.
✔ Stable S-Valve Hydraulic System
Advanced S-valve design ensures smooth flow, reduces blockages, and improves pumping efficiency.
✔ Durable & Heavy-Duty Structure
Reinforced frame and wear-resistant components are designed for harsh working environments and long service life.
✔ Easy Operation & Low Maintenance
User-friendly control system with simplified hydraulic design reduces downtime and maintenance costs.
Why Choose Us
- Stable performance in extreme working environments
- Lower fuel consumption compared to similar models
- Easy operation with PLC control system
- Fast delivery & global shipping support
- Spare parts supply guaranteed
- Trusted by contractors in 160+ countries
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
The DHB60-16-142 diesel concrete pump is widely used in:
- Industrial and commercial building projects
- High-rise building construction
- Bridge and tunnel projects
- Highway and road construction
- Hydropower and dam projects
- Rural and remote infrastructure development
Technical Specification
| Item | Unit | Specification |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 60 |
| Max. Concrete Pumping Pressure | MPa | 16 |
| Maximum Pumping Cycles | times/min | 25 / 14 |
| Distribution Valve Type | – | S-Valve |
| Main Hydraulic Pump | – | Kawasaki Double 112 |
| Main Electrical Components | – | LS / Omron / Siemens |
| Concrete Cylinder Diameter × Stroke | mm | Φ200 |
| Oil Cylinder Specification | mm | Φ140 × 1650 (Xieli Hydraulic Cylinder) |
| Outlet Diameter | mm | Φ180 |
| Loading Height | mm | 1400 |
| Diesel Engine Power | kW | 142 |
| Rated Speed | r/min | 1900 |
| Hydraulic Circuit Type | – | Open Loop System |
| Max. System Pressure | MPa | 32 |
| Mixing System Pressure | MPa | 12 |
| Max. Mixing Speed | r/min | 40 |
| Hydraulic Oil Tank Capacity | L | 600 |
| Max. Aggregate Diameter | mm | 40 |
| Delivery Pipe Inner Diameter | mm | Φ125 |
| Overall Dimensions (L×W×H) | mm | 6500 × 2000 × 2300 |
| Total Weight | kg | 6100 |
| Dragging Speed | km/h | ≤8 |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Ethiopia – Urban Housing & Infrastructure Project
Used in urban residential and infrastructure construction, the DHB60-16-142 Diesel Concrete Pump provided stable high-pressure pumping performance. It significantly improved concrete delivery efficiency in multi-storey building projects and reduced reliance on manual labor, helping contractors complete projects faster under challenging site conditions.
Peru – Mountain Road & Infrastructure Project
Applied in remote mountainous road construction, the diesel concrete pump ensured continuous operation without electricity supply. Its strong pumping pressure and reliable diesel power system allowed smooth concrete delivery over long distances, greatly improving construction efficiency in difficult terrain areas.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
