80m³/h High Pressure Trailer Pump, Powerful Diesel Concrete Pump for High-Rise & Long-Distance Projects

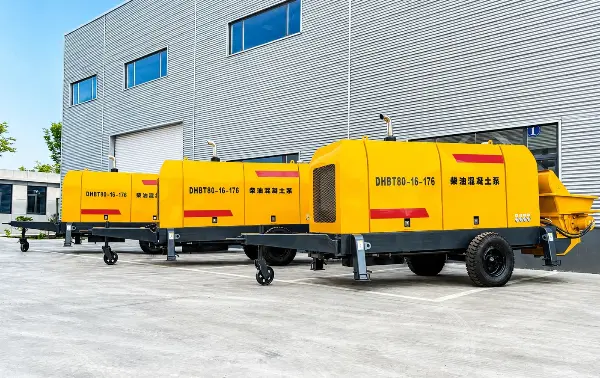

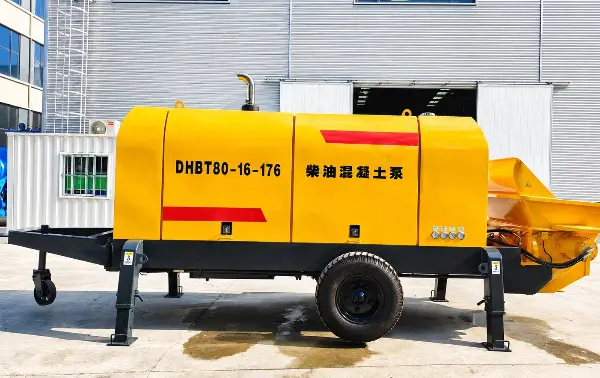

The DHB80-16-176 Diesel Concrete Pump is a high-performance trailer-mounted concrete pumping machine designed for large-scale construction projects, long-distance concrete delivery, and high-rise building applications. With a stable 176kW diesel engine and advanced hydraulic system, it delivers strong pumping power even in remote areas without electricity.
Engineered for reliability, efficiency, and durability, this model is widely used in infrastructure, housing, bridges, roads, and rural construction projects worldwide.
Technical Advantages
✔ High Output & Strong Pressure
- Theoretical output: 80 m³/h
- Max concrete pressure: 16 MPa
- Ideal for long vertical and horizontal pumping distances
✔ Powerful 176kW Diesel Engine
- Equipped with a high-efficiency 176kW diesel power system
- Stable operation in off-grid and harsh jobsite conditions
- Low fuel consumption with optimized hydraulic system
✔ Advanced S-Tube Valve System
- Smooth switching and reduced blockage risk
- Designed for continuous heavy-duty operation
- Improves pumping efficiency and service life
✔ Heavy-Duty Hydraulic System
- High-pressure hydraulic circuit ensures stable flow
- Components designed for high wear resistance
- Reliable performance under continuous workload
✔ Large Aggregate Compatibility
- Supports up to 40mm aggregate size
- Suitable for standard commercial concrete mixes (C15–C40)
Why Choose Us
Perfect for remote construction sites, mining areas, and rural infrastructure projects.
Continuous 80m³/h output significantly increases construction speed and reduces labor costs.
Heavy-duty frame + reinforced hydraulic system ensures long service life and low maintenance.
Widely used in Africa, Southeast Asia, the Middle East, and South America.
Lower fuel consumption and fewer breakdowns reduce total project cost.
The DHB80-16-176 is equipped with an optimized S-tube valve system and large-diameter delivery cylinder, which ensures smooth concrete flow even with harsh mixes.
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
- Industrial and commercial building projects
- High-rise building construction
- Bridge and tunnel projects
- Highway and road construction
- Hydropower and dam projects
- Rural and remote infrastructure development
Technical Specification
| Item | Unit | Specification |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 80 |
| Max. Concrete Pumping Pressure | MPa | 16 |
| Maximum Pumping Frequency | times/min | 25/13 |
| Distribution Valve Type | – | S-Tube Valve |
| Main Hydraulic Pump | – | Kawasaki Double 140 |
| Main Electrical Components | – | LS / Omron / Siemens |
| Concrete Cylinder Diameter | mm | Φ200 |
| Oil Cylinder Specification | mm | Φ140 × 1800 (Xieli Cylinder) |
| Outlet Diameter | mm | Φ180 |
| Loading Height | mm | 1400 |
| Diesel Engine Power | kW | 176 |
| Rated Speed | r/min | 2200 |
| Hydraulic Circuit Type | – | Open Loop System |
| Max. System Pressure | MPa | 32 |
| Mixing System Pressure | MPa | 12 |
| Maximum Mixing Speed | r/min | 40 |
| Hydraulic Oil Tank Capacity | L | 600 |
| Max. Aggregate Size | mm | 40 |
| Delivery Pipe Diameter | mm | Φ125 |
| Dimensions (L × W × H) | mm | 6500 × 2200 × 2300 |
| Total Weight | kg | 6300 |
| Drag Speed | km/h | ≤8 |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Tanzania – Road & Infrastructure Project
Used in highway and rural road construction projects across remote areas. The diesel-powered system ensured stable concrete pumping without electricity, helping contractors improve construction efficiency and reduce downtime in off-grid locations.
Sri Lanka – Residential & Commercial Building Project
Applied in urban and suburban construction projects, including multi-storey residential buildings and commercial structures. The pump delivered consistent performance with strong pressure capability, improving pouring speed and reducing labor requirements on-site.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
