Overview
High-Pressure | 80m³/h Output | Heavy-Duty Construction Pump for Global Projects

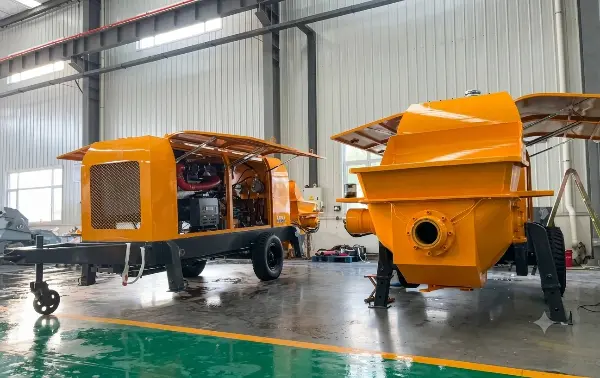

Looking for a powerful, reliable concrete pumping solution for demanding construction sites? The DHB80-16-199 Diesel Concrete Pump is engineered for high-rise buildings, bridges, roads, tunnels, and remote infrastructure projects where stable performance and strong pumping pressure are critical.
With a robust diesel engine and advanced hydraulic system, this model ensures continuous concrete delivery even in off-grid and harsh working environments.
Technical Advantages
80 m³/h output and 16 MPa pressure ensure fast, stable, long-distance and vertical concrete pumping for high-demand projects.
Equipped with a 199KW diesel engine, delivering reliable operation in off-grid sites with optimized fuel efficiency and stable power output.
Advanced S-valve system guarantees smooth concrete flow, reduces blockage risk, and maintains consistent performance during long working hours.
Engineered for harsh environments in Africa, Southeast Asia, Middle East, and Latin America with a durable frame for long service life and low downtime.
Why Choose Us
- Easy maintenance with accessible hydraulic system design
- Higher productivity than traditional manual pouring
- Designed for continuous 24-hour operation
- Stable performance in remote construction environments
- Lower labor cost and faster project completion
Components
A concrete mixer pump is composed of several key systems that work together to ensure efficient mixing, pumping, and continuous concrete delivery on construction sites.
Mixing System
Includes the mixing drum, blades, and feeding hopper. It ensures raw materials are evenly mixed into high-quality concrete.
Pumping System
Consists of the main pumping cylinder, S-valve, and delivery pipeline, responsible for pushing concrete to the required location smoothly and continuously.
Hydraulic System
Provides stable power for both mixing and pumping operations, ensuring reliable performance under heavy load conditions.
Power System
Can be equipped with a diesel engine or electric motor, depending on project requirements and site conditions.
Control System
A user-friendly control panel that allows operators to easily manage mixing, pumping, and pressure adjustments.
Lubrication System
Automatically lubricates key components to reduce wear, extend machine lifespan, and maintain stable operation.
Chassis & Frame
Heavy-duty steel structure designed for mobility, stability, and durability during transportation and operation.
Applications
- Industrial and commercial building projects
- High-rise building construction
- Bridge and tunnel projects
- Highway and road construction
- Hydropower and dam projects
- Rural and remote infrastructure development
Technical Specification
| Item | Unit | Parameter |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 80 |
| Max. Concrete Pumping Pressure | MPa | 16 |
| Maximum Pumping Frequency | times/min | 25 / 13 |
| Distribution Valve Type | – | S Pipe Valve |
| Hydraulic Pump | – | Kawasaki 140 |
| Main Electrical Components | – | LS / OML / Siemens |
| Concrete Cylinder (Diameter × Stroke) | mm | Φ200 |
| Oil Cylinder Specifications | mm | Φ140 × 1800 (Xieli) |
| Outlet Diameter | mm | Φ180 |
| Loading Height | mm | 1400 |
| Diesel Engine Power | kW | 199 |
| Engine Speed | r/min | 2200 |
| Hydraulic Circuit Type | – | Open / Optimized System |
| Pumping System Pressure | MPa | 32 |
| Mixing System Pressure | MPa | 12 |
| Maximum Mixing Speed | r/min | 40 |
| Hydraulic Oil Tank Capacity | L | 800 |
| Max. Aggregate Size | mm | 40 |
| Delivery Pipe Inner Diameter | mm | Φ125 |
| Overall Dimensions (L × W × H) | mm | 6500 × 2200 × 2300 |
| Total Weight | kg | 6300 |
| Travel Speed | km/h | ≤8 |
Diesel VS Electric Trailer Pump
| Feature | Diesel Trailer Pump | Electric Trailer Pump |
|---|---|---|
| Power Source | Diesel engine (independent operation) | Electric motor (requires stable power supply) |
| Working Environment | Suitable for remote areas, no electricity sites | Best for urban or construction sites with power |
| Mobility | High flexibility, can work anywhere | Limited by power access |
| Operating Cost | Higher fuel cost | Lower electricity cost |
| Maintenance | Requires engine + hydraulic maintenance | Lower maintenance, simpler structure |
| Performance Stability | Stable even in harsh environments | Very stable when power supply is stable |
| Application | Roads, rural projects, bridges, remote construction | Urban housing, factories, infrastructure with power |
| Start-up Requirement | Independent diesel start | Requires external electricity connection |
| Best Choice For | Outdoor + remote + unstable power areas | Stable construction sites with grid power |
Optional Customization
- Optional Customization
- Pipe diameter adjustment for different project needs
- Engine brand options (Weichai / Cummins / Deutz)
- Trailer or stationary configuration
- Hopper size customization
Our Service
Pre-Sales Service
- Professional consultation to help you choose the right model
- Customized solutions based on project requirements (capacity, pumping distance, site conditions)
- Detailed technical specifications, drawings, and quotations
- Video inspection and factory introduction before purchase
- Fast response within 24 hours for all inquiries
After-Sales Service
- Regular follow-up to ensure stable machine performance and customer satisfaction
- Installation guidance and operation training (online or on-site support available)
- Supply of original spare parts for long-term operation
- Technical support for troubleshooting and maintenance
- One-year warranty with lifelong technical assistance
Project Cases
Philippines – Residential High-Rise Project
Delivered reliable performance in multi-storey housing construction, significantly improving construction speed and vertical pumping efficiency.
Tanzania – Road & Infrastructure Project
Deployed in highway and rural construction projects, delivering reliable concrete pumping performance in off-grid areas with unstable power supply.
FAQ
Use the right mix, clean the pipeline after each job, and maintain the valve and hydraulic system.
Output, pressure, engine power, delivery distance, and maximum aggregate size.
Yes. The system is designed for easy control, requiring only 2–3 operators.
The delivery time is usually 15–30 working days after receiving the deposit, depending on the model, configuration, and order quantity. For urgent orders, we can also arrange priority production to shorten the lead time.
