Overview

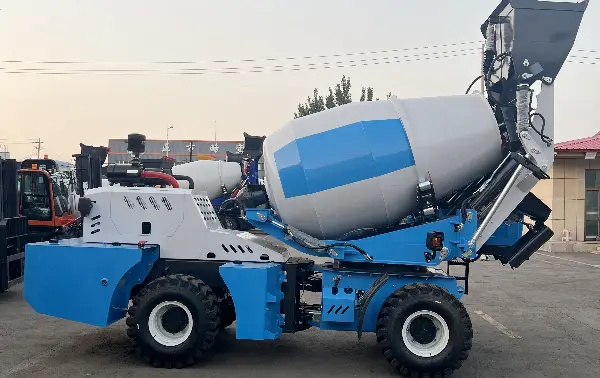

2.0m³ Self Loading Concrete Mixer – Efficient Concrete Production Anywhere
Looking for a reliable 2.0m³ self loading concrete mixer at a competitive factory price? Our 2.0 cubic meter self-loading mixer combines loading, weighing, mixing, transportation, and hydraulic discharge in one powerful machine, helping contractors reduce labor costs and increase productivity.
Designed for roads, buildings, bridges, farms, and remote construction sites, it delivers fresh concrete whenever and wherever you need it.
Why Choose Us
Delivers 2.0m³ per batch, up to 8 batches per hour, with daily productivity reaching 16–20m³ depending on site conditions.
The hydraulic loading bucket quickly loads sand, gravel, and cement without additional equipment, saving both time and labor.
Built-in weighing system ensures every batch has the correct proportion, improving concrete quality and reducing material waste.
Equipped with a reliable turbocharged diesel engine for strong performance, low fuel consumption, and easy maintenance.
Four-wheel drive and articulated steering allow smooth operation on muddy, rough, and mountainous job sites.
The rotating drum provides flexible discharge angles, making concrete placement faster and more convenient.
Applications
Our 2.0m³ self loading concrete mixer is widely used for:
- Residential construction
- Commercial buildings
- Road construction
- Bridge projects
- Rural infrastructure
- Farm construction
- Water conservancy projects
- Foundation works
- Municipal engineering
- Remote job sites without batching plants
Key Features
✔ Automatic Material Loading
Load aggregates directly from stockpiles without wheel loaders.
✔ Precise Mixing
Large mixing drum ensures uniform concrete quality for every batch.
✔ Integrated Water System
Automatically controls water supply to maintain accurate concrete consistency.
✔ Low Operating Cost
One machine replaces a loader, mixer, transporter, and several workers.
✔ Easy Maintenance
High-quality hydraulic and transmission components ensure long service life with minimal maintenance.
Advantages
- Suitable for all-weather operation
- Save up to 70% labor costs
- Produce concrete directly on-site
- No need for a separate batching plant
- Lower transportation costs
- Fast return on investment
- Easy maintenance
- Reliable performance in remote areas
- High fuel efficiency
Technical Specifications
| Tank & Power System | |
|---|---|
| Engine Model | Yunnei 4102 Turbocharged Diesel Engine |
| Rated Power | 76 kW |
| Torque Converter | JBJ-278 Split Torque Converter |
| Drive System | Permanent 4WD (JBJ 10T Drive Axle) |
| Top Speed | ≤35 km/h |
| Tyres | 25.5-16 × 4 |
| Hydraulic Motor | A2FM63 Cycloidal Hydraulic Motor |
| Hydraulic Oil Tank | 80 L |
| Diesel Fuel Tank | 80 L |
| Operating System | |
| Cab Position | Front Cab |
| Air Conditioner | Optional |
| Brake System | Air Brake, Dual Independent Circuits |
| Swing Ring | Φ1100 Gear Drive |
| Machine Parameters | |

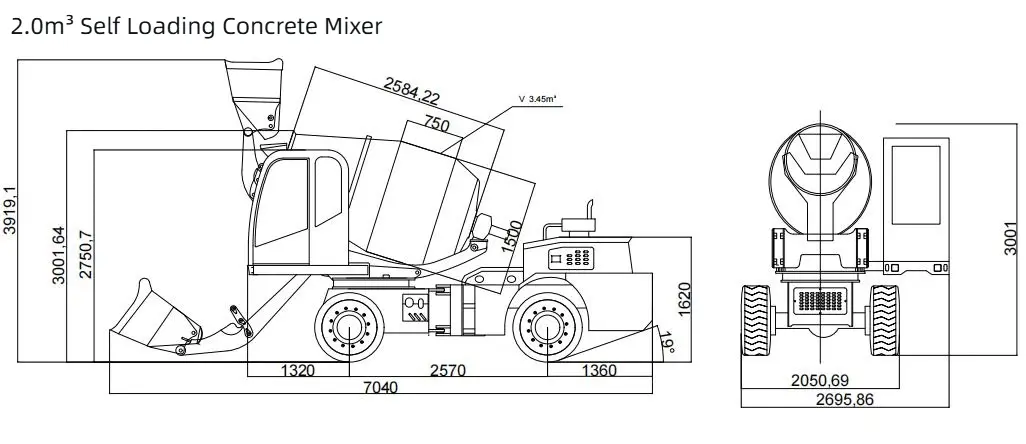

| Overall Dimensions (L × W × H) | 7040 × 2695 × 3001 mm |
| Operating Weight | 6,200 kg |
| Wheelbase | 2,570 mm |
| Ground Clearance | 270 mm |
| Maximum Gradeability | 40° |
| Mixing Drum Capacity | 3.45 m³ |
| Concrete Output per Batch | 2.0 m³ |
| Bucket Capacity | 0.65 m³ |
| Mixing Speed | 20 rpm |
| Water Tank Capacity | 750 L |
| Standard Configuration | |
| |
| Optional Equipment | |
| |
Advantages Over Traditional Mixing
| Traditional Method | Our Self Loading Mixer |
|---|---|
| Multiple machines required | One machine completes all tasks |
| High labor cost | One operator only |
| Slow concrete production | Fast continuous batching |
| Material waste | Accurate weighing system |
| Difficult transportation | Mixing and transport in one machine |
| Higher operating costs | Lower total project cost |
Quality You Can Trust
Every machine undergoes strict quality inspection before delivery.
We use:
- Premium hydraulic components
- Durable mixing drum
- Heavy-duty chassis
- Reliable diesel engine
- Wear-resistant mixing blades
- Reinforced bucket structure
Our machines are designed for continuous operation in demanding construction environments.
Our Service
- Factory Direct Price
Purchase directly from the manufacturer with competitive pricing.
- Custom Configuration
Optional cabin, air conditioning, camera system, and customized colors are available.
- Fast Delivery
Efficient production and global shipping ensure timely delivery.
- Spare Parts Support
Complete spare parts inventory with fast worldwide supply.
- Technical Assistance
Professional engineers provide installation guidance, operation training, and lifetime technical support.
- Warranty
Comprehensive warranty and responsive after-sales service for long-term reliability.
Project Cases
Tanzania – Rural Road Construction
A 2.0m³ self loading concrete mixer was used for rural road construction in Tanzania, delivering consistent concrete production in remote areas without a batching plant. Its 4WD system and automatic loading significantly improved efficiency while reducing labor costs.
Ghana – Commercial Building Project
Our 2.0m³ self loading concrete mixer supported the construction of a commercial building in Ghana, providing fast on-site concrete mixing with accurate electronic weighing. The project achieved higher productivity and shorter construction time with just one operator.
FAQ
Yes. Engine and configuration options can be customized according to your market and project requirements.
Yes. We offer operation guidance, spare parts supply, online technical support, and comprehensive after-sales service.
Yes. We offer genuine spare parts and long-term technical support.
We provide a 12-month warranty along with lifetime technical assistance.
