Overview
High Efficiency, Smart Concrete Production – Build Faster. Mix Smarter. Save More.

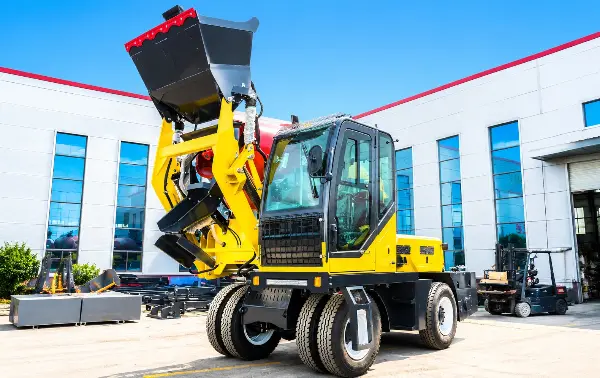

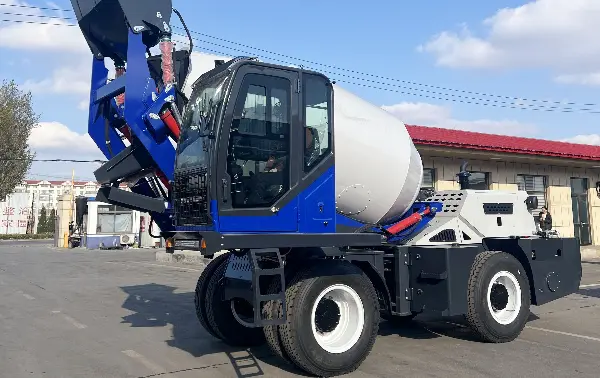

The 5m³ Self Loading Concrete Mixer is a powerful all-in-one solution for on-site concrete production. Designed for large-scale construction projects, it combines loading, mixing, transporting, and discharging in a single machine—eliminating the need for multiple equipment and reducing labor costs dramatically.
👉 Perfect for highways, bridges, housing projects, and remote construction sites.
Why Choose Us
- ✔ Factory Direct Price – No middleman cost
- ✔ High Fuel Efficiency – Lower operating cost per project
- ✔ Strong Adaptability – Works in deserts, mountains, and muddy sites
- ✔ Easy Maintenance – Designed for long service life
- ✔ Fast ROI – Save labor, time, and equipment rental costs
Applications
- Road & Highway Construction
- Bridge Engineering
- Urban & Rural Housing Projects
- Hydropower & Infrastructure Projects
- Remote Area Construction (No ready-mix plant required)
Key Features
✔ Automatic Material Loading
Load aggregates directly from stockpiles without wheel loaders.
✔ Precise Mixing
Large mixing drum ensures uniform concrete quality for every batch.
✔ Integrated Water System
Automatically controls water supply to maintain accurate concrete consistency.
✔ Low Operating Cost
One machine replaces a loader, mixer, transporter, and several workers.
✔ Easy Maintenance
High-quality hydraulic and transmission components ensure long service life with minimal maintenance.
Advantages
- Operator Cabin Control System – One-person operation for maximum efficiency
- 5m³ Large Capacity Drum – Higher output for fast-paced construction
- Self Loading System – Automatic loading saves time and labor
- 4WD Off-Road Capability – Works smoothly on rough and muddy terrain
- Precise Weighing System (Optional) – Ensures accurate concrete quality
- Powerful Diesel Engine (Heavy Duty Performance) – Stable output even in harsh conditions
- 360° Rotating Drum – Easy and fast discharge in any direction
Technical Specifications
| Tank & Power System | |
|---|---|
| Engine Model | Dongfanghong 6105 Turbocharged (Optional: Weichai 6105 Turbocharged) |
| Rated Power | 92 kW |
| Torque Converter | JBJ-428 Split Torque Converter |
| Drive System | Full-Time 4WD (JBJ-20T Drive Axle) |
| Top Speed | ≤35 km/h |
| Tyre Specification | 1200R24 (6 wheels) |
| Hydraulic Motor | A2FM63 Plunger Motor |
| Hydraulic Oil Tank | 130 L |
| Diesel Fuel Tank | 130 L |
| Operating System | |
| Cab Position | Front Cab |
| Air Conditioner | Optional |
| Brake System | Air Brake, Dual Independent Circuits |
| Swing Support | Φ1250 Gear Drive |
| Machine Parameters | |

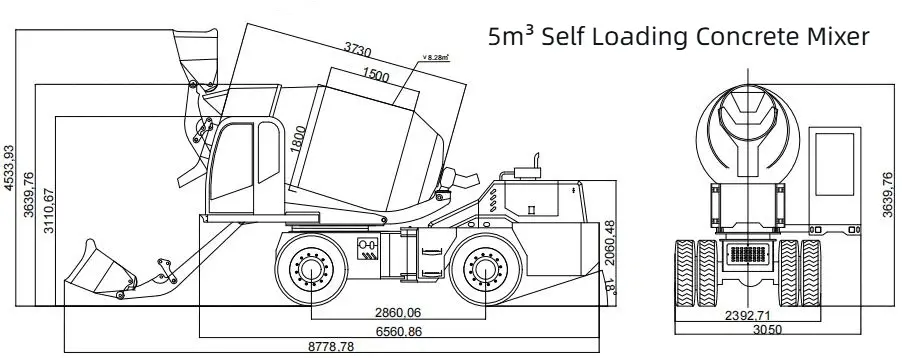

| Overall Dimensions (L × W × H) | 8878 × 3050 × 3640 mm |
| Operating Weight | 10,500 kg |
| Wheelbase | 2,860 mm |
| Ground Clearance | 380 mm |
| Maximum Gradeability | 40° |
| Mixing Drum Capacity | 8.28 m³ |
| Concrete Output per Batch | 5.0 m³ |
| Bucket Capacity | 0.75 m³ |
| Mixing Speed | 20 rpm |
| Water Tank Capacity | 1,100 L |
| Standard Configuration | |
| |
| Optional Equipment | |
| |
Advantages Over Traditional Mixing
| Traditional Method | Our Self Loading Mixer |
|---|---|
| Multiple machines required | One machine completes all tasks |
| High labor cost | One operator only |
| Slow concrete production | Fast continuous batching |
| Material waste | Accurate weighing system |
| Difficult transportation | Mixing and transport in one machine |
| Higher operating costs | Lower total project cost |
Optional Configurations
- Air-conditioned cabin
- Central lubrication system
- Electronic weighing system
- Reverse camera system
- Water tank upgrade (higher capacity)
Quality You Can Trust
Every machine undergoes strict quality inspection before delivery.
We use:
- Premium hydraulic components
- Durable mixing drum
- Heavy-duty chassis
- Reliable diesel engine
- Wear-resistant mixing blades
- Reinforced bucket structure
Our machines are designed for continuous operation in demanding construction environments.
Our Service
- Factory Direct Price
Purchase directly from the manufacturer with competitive pricing.
- Custom Configuration
Optional cabin, air conditioning, camera system, and customized colors are available.
- Fast Delivery
Efficient production and global shipping ensure timely delivery.
- Spare Parts Support
Complete spare parts inventory with fast worldwide supply.
- Technical Assistance
Professional engineers provide installation guidance, operation training, and lifetime technical support.
- Warranty
Comprehensive warranty and responsive after-sales service for long-term reliability.
Project Cases
Kenya – Road Construction Project
The 5m³ Self Loading Concrete Mixer was used for a highway project in Kenya with poor road access and no nearby batching plant. Thanks to its 4WD system and self-loading function, it produced concrete directly on-site and operated smoothly in muddy terrain.
Uganda – Housing & Road Project
In Uganda, the machine was applied in a residential housing and urban road project near Kampala. It solved the problem of unstable ready-mix supply and helped contractors produce concrete directly on-site with only one operator.
FAQ
Yes. Engine and configuration options can be customized according to your market and project requirements.
Yes. We offer operation guidance, spare parts supply, online technical support, and comprehensive after-sales service.
Yes. We offer genuine spare parts and long-term technical support.
We provide a 12-month warranty along with lifetime technical assistance.
