Overview
50m³/h Portable Concrete Mixing Solution

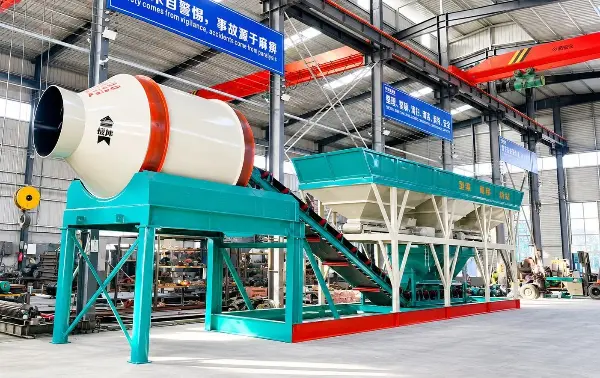

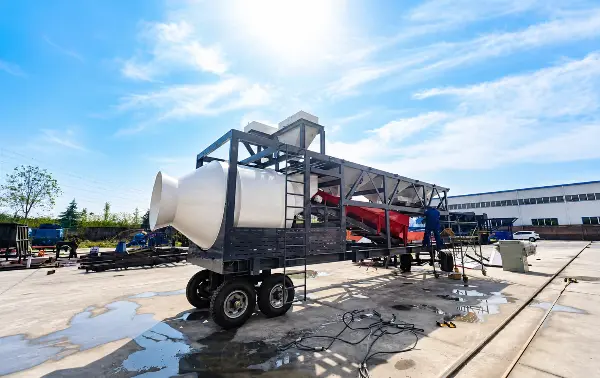

The YHZM50 Mobile Concrete Batching Plant is a highly efficient and cost-effective mobile concrete production solution designed for contractors, infrastructure projects, road construction, bridge works, and remote job sites. With a theoretical output of 50m³/h, this mobile batching plant combines accurate weighing, reliable mixing performance, and rapid relocation capabilities in a compact trailer-mounted structure. Mobile concrete batching plants in the 50m³/h class are widely used because they offer fast installation, minimal foundation requirements, and convenient transportation between projects.
Built with a robust JZM1000 drum mixer, intelligent control system, and precision weighing units, the YHZM50 delivers consistent concrete quality while reducing installation time and labor costs.
Why Choose Us
Delivers stable and continuous output, ideal for medium-scale construction projects.
Compact structure with integrated chassis allows fast relocation. No complex foundation required.
Pre-wired and pre-assembled modules reduce setup time and labor costs significantly.
High-precision sensors ensure consistent mix quality, reducing material waste.
Automated PLC control with intuitive interface, real-time monitoring, and easy operation.
Heavy-duty steel structure designed to withstand harsh environments and continuous use.
Parameter
| Item | Specification |
|---|---|
| Model | YHZM50 |
| Theoretical Capacity | 50 m³/h |
| Concrete Mixer | JZM1000 Drum Mixer |
| Discharge Height | 1.2m |
| Discharge Volume | 1000L |
| Charging Volume | 1600L |
| Aggregate Batcher | PLD1600 |
| Aggregate Bin Capacity | 7m³ |
| No. of Storage Bins | 2/3 |
| Control System | Fully automatic / Manual |
| Installation Type | Trailer-Mounted Mobile Plant |
| Power Supply | Adjustable based on regional requirements |
Customized configurations are available according to project requirements.
Main Components
Drum Concrete Mixer
The Drum Concrete Mixer is a reliable and cost-effective mixing solution widely used in small and medium-sized construction projects.
Aggregate Batching System
High-precision aggregate weighing, automatic batching operation, fast and efficient material feeding, accurate mix proportion control, easy integration with PLC control systems
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation

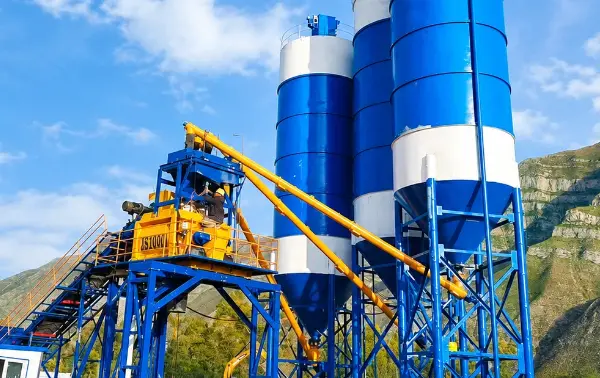

Cement Screw Conveyor
Fully enclosed structure for dust-free operation, stable and continuous material feeding, durable wear-resistant screw blades, easy installation and maintenance, suitable for cement, fly ash, and other powder materials
PLC Control Cabinet
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo
Optional storage capacities available based on project demand.
Optional Configurations
To meet different project requirements, the YHZM50 can be customized with:
- Additional cement silo capacity (50T–200T)
- Dust collection and environmental compliance system
- Water heating/chilling system for extreme climate operation
- Aggregate pre-screening and washing unit
- Remote monitoring and telematics module
- Generator set for fully off-grid operation
- Custom paint, branding, and voltage specification
Applications
The YHZM50 Mobile Concrete Batching Plant is widely used for:
Road Construction
High-quality concrete production for highways, rural roads, and urban transportation projects.
Bridge Projects
Reliable concrete supply for foundations, piers, and deck construction.
Building Construction
Suitable for residential, commercial, and industrial building projects.

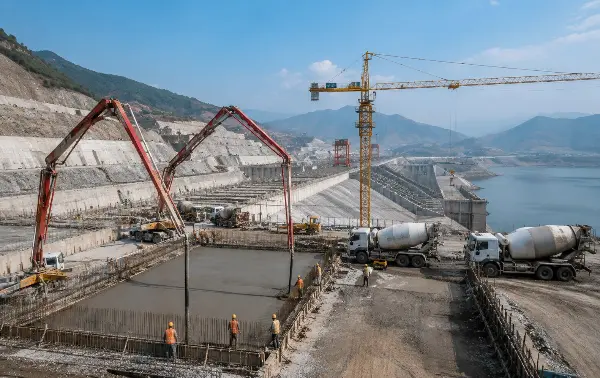

Water Conservancy Engineering
Concrete production for dams, canals, and irrigation systems.
Remote Job Sites
Ideal where ready-mix concrete supply is limited or unavailable.
Mobile Plant VS Stationary Plant
| Item | YHZM50 Mobile batching plant | Stationary plantFixed installation | Ready-mix deliveryThird-party supply |
|---|---|---|---|
| Setup time | ⚡ 48 hours | 2–4 weeks | N/A |
| Relocatable | Yes | No | N/A |
| Output control | Full | Full | Supplier-dependent |
| Remote site capable | Yes | Limited | Often no |
| Cost per m³ | Low | Low | High |
| Capital investment | Moderate | High | None |
Project Cases
YHZM50 Mobile Concrete Batching Plant in Malaysia
“The YHZM50 has performed beyond our expectations. The mobility of the plant allowed us to relocate quickly between construction sections, and the automatic control system made operation simple. The concrete quality has been very stable, helping us keep the project on schedule.” — Project Manager, Malaysia
YHZM50 Mobile Concrete Batching Plant in South Africa
“The YHZM50 is easy to operate and maintain. We particularly appreciate its mobility because we plan to move it to future housing projects. The batching accuracy is excellent, and the equipment has remained reliable under demanding site conditions.” — Operations Director, South African
Our Service
Factory Direct Price
No middlemen, competitive pricing for global customers.
Global Export Experience
Plants exported to Asia, Africa, South America, the Middle East, and Central Asia.
Custom Design Available
Voltage, control language, cement silo size, and configuration can be customized according to local standards.
Professional After-Sales Support
- Installation guidance
- Commissioning service
- Operator training
- Spare parts supply
- 24/7 technical support
Fast Delivery
Standard models available for quick production and shipment.
FAQ
Yes. Factory visits are welcome at any time. We can arrange accommodation and pickup from the nearest airport.
Before making a final decision, buyers should look beyond the selling price and ask: what will this plant cost to run through the whole project? A plant that matches the project well may save money over time by reducing downtime and improving workflow. Our sales engineers can run a project-specific cost comparison for you — just share your estimated monthly volume, current ready-mix price, and project duration.
Yes, the YHZM50 mobile concrete batching plant can be customized to operate reliably in both extreme hot and extreme cold climates.
The YHZM50 Mobile Concrete Batching Plant is supplied with a standard warranty covering major mechanical and electrical components. Extended warranty options and long-term spare parts support are also available.
