Overview
50 m³/h Trailer-Type Mobile Concrete Mixing Plant for Fast Project Deployment

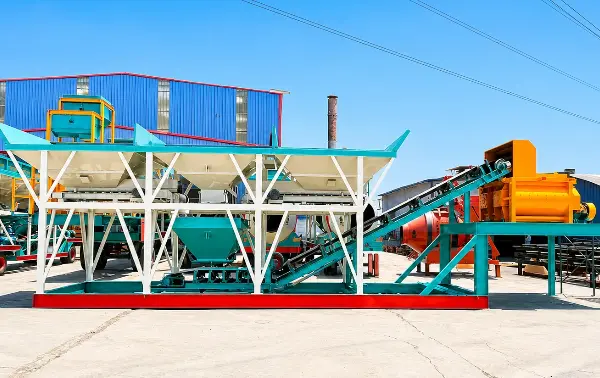

The YHZS50F Mobile Concrete Batching Plant is a fully integrated, trailer-mounted concrete production solution designed for contractors who need reliable concrete supply at multiple job sites.
With a theoretical capacity of 50 m³/h, the plant combines aggregate batching, weighing, conveying, mixing, and automatic control into one compact mobile unit. It can be transported quickly, installed rapidly, and commissioned with minimal foundation requirements, making it ideal for road construction, bridge projects, remote infrastructure works, mining operations, and temporary construction sites.
Why Choose Us
Fully modular design allows setup within 1–2 days. No complex foundation required.
The entire plant is mounted on a heavy-duty trailer chassis. No cranes, no foundations, no civil works required at the new site.
Output capacity up to 50 m³/h, ideal for medium-scale projects.
Advanced load cell technology ensures precise batching of aggregates, cement, water, and additives.
PLC automatic control system with intuitive interface for smooth operation and real-time monitoring.
Heavy-duty steel structure designed for long-term performance in harsh environments.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS50F |
| Theoretical Capacity | 50 m³/h |
| Mixer Model | JS1000 Twin Shaft Mixer |
| Mixer Discharge Capacity | 1000 L |
| Aggregate Batching Machine | PLD1600 |
| Aggregate Bin Quantity | 2-4 Bins Optional |
| Feeding Method | Belt Conveyor |
| Discharge Height | Adjustable (commonly 3.8m) |
| Control System | Fully Automatic PLC / Manual Overrides |
| Power Supply | Customizable based on region |
| Mobility Type | Trailer Mounted |
Customized configurations are available according to project requirements.
Main Components

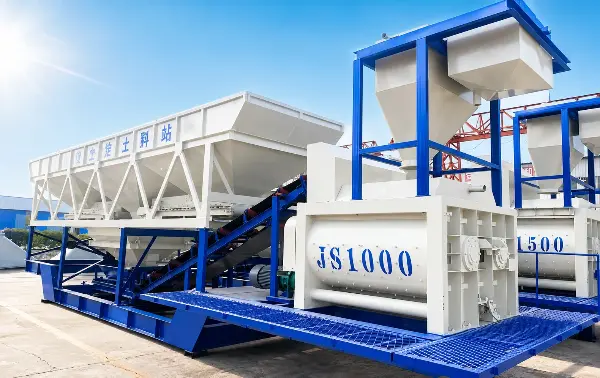

Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
Aggregate Batching System
High-precision aggregate weighing, automatic batching operation, fast and efficient material feeding, accurate mix proportion control, easy integration with PLC control systems
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Fully enclosed structure for dust-free operation, stable and continuous material feeding, durable wear-resistant screw blades, easy installation and maintenance, suitable for cement, fly ash, and other powder materials
PLC Control Cabinet
Automatic batching and real-time monitoring improve production efficiency.
Cement Silo
Optional storage capacities available based on project demand.
Mobile Plant VS Stationary Plant
| Feature | YHZS50F Mobile Plant | Stationary Plant |
|---|---|---|
| Mobility | Excellent | None |
| Installation Time | 1-3 Days | 15-30 Days |
| Foundation Cost | Minimal | High |
| Transportation | Easy | Difficult |
| Land Requirement | Small | Large |
| Investment Cost | Lower | Higher |
Applications
The YHZS50F Mobile Concrete Batching Plant is widely used in:
Road Construction
Highway projects, rural roads, municipal roads.
Bridge Construction
Beam casting, bridge foundations, approach roads.
Mining Projects
Concrete production for mining infrastructure.
Railway Projects
Railway stations, high-speed rail construction, tunnels.
Hydropower Projects
Dams, water channels, power stations.
Remote Construction Sites
Areas where ready-mix concrete supply is unavailable.
Project Cases
YHZS50F Mobile Concrete Batching Plant in Zimbabwe
“The YHZS50F mobile batching plant has exceeded our expectations. Its mobility allows us to serve multiple job sites efficiently, while the automatic control system ensures stable concrete quality. We are very satisfied with the performance and support provided.” — Project Manager, Zimbabwe
YHZS50F Mobile Concrete Batching Plant in Mexico
“The YHZS50F provided exactly what our project required. Installation was fast, operation was simple, and the concrete quality remained consistent throughout the project. The plant helped us maintain full control over production and project scheduling.” — Construction Director, Mexico
After-Sales Service
We provide complete project support:
✓ Plant Layout Design
✓ Equipment Customization
✓ Factory Testing Before Delivery
✓ Installation Guidance
✓ Operator Training
✓ Spare Parts Supply
✓ Online Technical Support
✓ Lifetime Service Assistance
FAQ
Yes. The YHZS50F Mobile Concrete Batching Plant can be customized to meet the technical standards, electrical requirements, environmental regulations, and operating preferences of different countries and regions.
We regularly customize plants for customers in Africa, Southeast Asia, the Middle East, South America, and Oceania.
Yes. We provide complete export packing and international shipping support for the YHZS50F Mobile Concrete Batching Plant, from factory inspection to delivery at your project site.
Yes, you are welcome to visit our factory and selected project sites. We can also arrange live video inspections, factory tours, and equipment demonstrations if traveling is not convenient.
Please send your project location, required capacity, raw materials, power standard, and preferred mixer type.
