Overview
50 m³/h Mobile Concrete Plant for Fast-Track Construction Projects

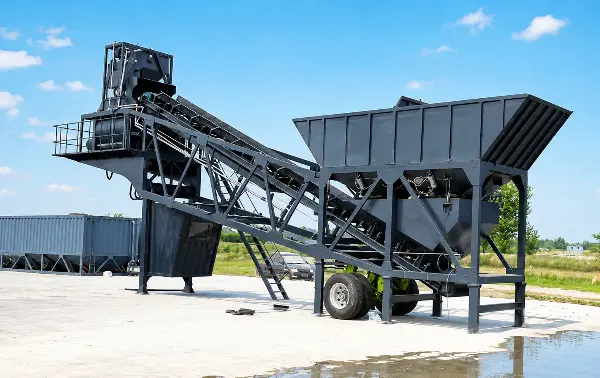

The YHZS50 Mobile Concrete Batching Plant is a highly efficient and fully mobile concrete production solution designed for contractors who require frequent site relocation and rapid project deployment. With a theoretical output of 50 m³/h, it combines batching, weighing, mixing, conveying, and control systems into a compact trailer-mounted structure, allowing quick transportation and installation.
Whether you’re working on road construction, bridge projects, railway infrastructure, residential developments, mining operations, or remote construction sites, the YHZS50 delivers reliable concrete production wherever your project takes you.
Why Choose Us
Fully pre-assembled modules allow setup within 5-7 days, reducing downtime and labor costs.
Compact structure with integrated chassis makes transportation between job sites quick and hassle-free.
Equipped with a high-performance twin-shaft mixer for uniform mixing and reliable batch quality.
Automated PLC control ensures precise batching, easy operation, and real-time monitoring.
Optimized material handling and energy use reduce overall production costs.
Save thousands on civil engineering. Just clear and level the ground, and you are ready for installation.
Parameter
| Item | Specification |
|---|---|
| Model | YHZS50 |
| Theoretical Capacity | 35 m³/h |
| Concrete Mixer | JS1000 Twin Shaft Mixer (1m³ output per batch) |
| Mixer Discharge Capacity | 1000 L |
| Aggregate Batching Machine | PLD1600 |
| Discharge Height | 3.8 m (Standard) / Customizable |
| Aggregate Bin Capacity | 5m³ |
| Aggregate Bin Quantity | 2/4 Bins Optional (customizable) |
| Cement Silo Capacity | 50–100 tons (optional) |
| Mixing Cycle | 60s |
| Control System | Fully automatic / Manual |
| Transportation Type | Mobile Trailer Mounted |
| Warranty | 12 months |
Customized configurations are available according to project requirements.
Main Components
JS1000 Twin Shaft Concrete Mixer
High mixing efficiency, strong mixing force, and excellent concrete uniformity.
PLD1600 Aggregate Batching Machine
Accurate aggregate weighing，Multiple aggregate storage bins available，Stable feeding performance
Aggregate Conveying System
High conveying efficiency, stable and continuous aggregate feeding, wear-resistant conveyor belt, low maintenance requirements, easy installation and relocation
Cement Screw Conveyor
Ensures continuous and efficient cement feeding with minimal material loss.
Fully Automatic Control Cabin
Integrated control room with user-friendly software enables one-person operation and efficient plant management.
Cement Silo Options
Flexible silo configurations are available: 50 Ton Cement Silo, 80 Ton Cement Silo, 100 Ton Cement Silo, Horizontal Cement Silo.
Applications
The YHZS50 Mobile Concrete Batching Plant is widely used in:
- Temporary Construction Sites
- Highway Construction
- Bridge Construction
- Railway Projects
- Airport Runway Projects
- Municipal Engineering
- Mining Projects
- Hydropower Projects
- Remote Infrastructure Development
- Precast Concrete Production
Project Cases
YHZS50 Mobile Concrete Batching Plant Project in UAE
“The YHZS50 mobile batching plant has exceeded our expectations. Installation was much faster than traditional plants, and the equipment performs reliably even in the harsh UAE climate. The mobility of the plant allows us to move between projects with minimal downtime. We are very satisfied with both the machine quality and technical support.” — Project Contractor, UAE
YHZS50 Mobile Concrete Batching Plant in Philippines
“The mobile design saved us significant transportation and installation costs. We completed multiple project sections efficiently with the same equipment.” — Customer from Philippines
After-Sales Service
Before Sales
- Project consultation
- Equipment selection
- Layout design
- Quotation support
During Production
- Manufacturing updates
- Factory inspection
- Quality testing
After Delivery
- Installation guidance
- Commissioning support
- Operator training
- Spare parts supply
- 24/7 technical assistance
FAQ
Yes. We offer customized solutions including:
1. Cement silo capacity
2. Aggregate bin quantity
3. Control system language
4. Electrical standards
5. Dust collection system
6. Generator integration
7. Trailer configuration
A mobile batching plant is a better choice when project sites change often, installation speed matters, or you want to avoid building a permanent foundation.
Standard production time is typically 20–35 working days after order confirmation, depending on configuration requirements and production schedules.
Yes. The modular structure is designed for economical transportation and can be shipped in standard containers, reducing international freight costs.
