Overview
Diesel/Electric Trailer Concrete Pumps & Concrete Mixer Pumps
Our concrete pump machine is designed to deliver high-performance concrete conveying for residential, commercial, and infrastructure projects. With stable pumping pressure, long-distance delivery capability, and low maintenance cost, it is widely used in building construction, bridge engineering, tunnel projects, and road works.
Whether you need a trailer concrete pump, concrete mixer pump, or diesel/electric concrete pump, we provide customized solutions to meet different project requirements.
Types of Concrete Pumps
Trailer Concrete Pump
Trailer concrete pumps are designed to deliver concrete through pipelines to construction locations. Their trailer-mounted structure makes transportation between job sites convenient.
Key Features:
- Trailer-mounted design
- Suitable for long-distance concrete delivery
- Diesel or electric power options, depending on model
- Suitable for different construction environments
- Flexible pipeline configuration
Applications: Building construction, foundations, bridges, tunnels and infrastructure projects.

Diesel Trailer Concrete Pump

Electric Trailer Concrete Pump
🚛 Diesel Trailer Concrete Pumps
Ideal for remote construction sites without stable electricity.
- Powerful diesel engine for continuous operation
- High pumping pressure for long-distance delivery
- Suitable for highways, bridges, tunnels, and rural projects
- Stable performance under harsh working conditions
- Easy maintenance and durable design
✔ Best for: remote areas, large infrastructure projects
⚡ Electric Trailer Concrete Pumps
Perfect for urban and power-accessible construction sites.
- Energy-efficient electric motor system
- Low noise and eco-friendly operation
- Stable and precise concrete delivery
- Lower operating cost compared to diesel models
- Compact structure for easy transportation
✔ Best for: residential buildings, urban projects, indoor construction
Available power configurations depend on the selected pump model.
🛠 Concrete Mixer Pumps (Mixing + Pumping in One)
Combines mixing and pumping functions for maximum efficiency.
- Automatic concrete mixing and continuous pumping
- Reduces labor and equipment costs
- Easy to operate with high productivity
- Ideal for small to medium construction sites
- Fast setup and mobile operation
✔ Best for: housing projects, rural construction, small contractors
Why Choose Shanghe Concrete Pumps?
1. Reliable Concrete Pumping Performance
Our concrete pumps are designed to provide stable concrete delivery for different construction applications.
2. Efficient Pumping System
The hydraulic pumping system is designed to deliver concrete through pipelines efficiently, helping reduce manual concrete transportation.
3. Flexible Power Options
Choose a suitable diesel or electric configuration according to your construction site conditions and power availability.
4. Easy Transportation
The trailer-mounted structure allows the concrete pump to be transported between different construction sites.
Main Components
A concrete pump consists of several integrated systems that work together to ensure efficient concrete delivery.
1. Diesel Engine / Electric Motor
Provides the power required to operate the pumping system.
2. Hydraulic System
Controls the pumping mechanism and supports stable operation.
3. Concrete Hopper
Receives fresh concrete before it enters the pumping cylinders.
4. S-Valve / Delivery Valve
Controls the direction of concrete flow during the pumping process. The valve configuration depends on the model.
5. Pumping Cylinders
Push concrete from the hopper into the delivery pipeline.
6. Control System
Allows operators to control and monitor the pumping process.
7. Delivery Pipeline
Transfers concrete from the pump to the required pouring location.
Applications
Shanghe concrete pumps are suitable for various construction and infrastructure projects.
1. Building Construction
Deliver concrete to foundations, columns, floors and other structural elements.
2. Road Construction
Provide concrete delivery for road surfaces, drainage structures and related construction work.
3. Bridge Construction
Transport concrete to bridge foundations, piers and structural components.
4. Tunnel Construction
Support concrete delivery in underground and tunnel construction applications, subject to project conditions.
5. Foundation Engineering
Deliver concrete to foundation pits and other hard-to-reach construction locations.
Concrete Pump Price
Looking for a concrete pump price?
The final price depends on several factors:
- Pumping Capacity: Different output requirements need different pump configurations.
- Power Type: Diesel and electric models may have different costs.
- Pumping Distance: Longer delivery distances may require different technical configurations.
- Equipment Configuration: Hydraulic systems, control systems and other components affect the total price.
- Shipping Destination: Transportation costs depend on the destination port and delivery arrangements.
Shanghe Machinery provides factory-direct quotations based on your project requirements.
Contact us to get the latest concrete pump price and technical specifications.
Why Buy from Shanghe Machinery?
Shanghe Machinery specializes in concrete machinery manufacturing and international equipment supply.
- Factory Direct Supply
- Customized Equipment Configurations
- International Project Experience
- Professional Technical Support
- Equipment Solutions for Different Construction Applications
- Export Experience in 160+ Countries
We aim to provide practical concrete pumping solutions for contractors, construction companies, equipment distributors and concrete machinery dealers.
Technical Specifications
Diesel Concrete Mixer Pump
| Parameter | DJBT30.08.76 (Diesel Mixer Pump) | DJBT40.10.82 (Diesel Mixer Pump) | DJBT50.10.88 (Diesel Mixer Pump) | DJBT50.11.88 (Diesel Mixer Pump) |
|---|---|---|---|---|
| Main Hydraulic Pump (mlr) | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 |
| Delivery Cylinder (mm) | Wuxi 180×800 | Wuxi 180×800 | Wuxi 180×1000 | Wuxi 200×1000 |
| Hydraulic Oil Cylinder (mm) | Changsha 90×800 | Changsha 100×800 | Changsha 100×1000 | Changsha 110×1000 |
| Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine | Weifang Huadong Diesel Engine |
| Hydraulic Valve Group | Jining Taifeng | Jining Taifeng | Jining Taifeng | Jining Taifeng |
| PLC System | Omron / Siemens | Omron / Siemens | Omron / Siemens | Omron / Siemens |
| Electrical Components | Schneider / LS | Schneider / LS | Schneider / LS | Schneider / LS |
| Hydraulic Hoses | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture | Mannesmann / Sino-US Joint Venture |
| Concrete Output (m³/h) | 35 | 38 | 43 | 45 |
| Pumping Height / Distance (m) | 50 / 200 | 60 / 250 | 60 / 250 | 80 / 300 |
| Outlet Pressure (MPa) | 8 | 10 | 10 | 11 |
| Rated Speed (rpm) | 1800 | 1800 | 1800 | 2200 |
| Max Aggregate Size (mm) | 35 | 35 | 35 | 35 |
| Hopper Capacity & Loading Height (m³/mm) | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 | 0.5 × 1100 |
| Pipe Diameter (mm) | Ø125 | Ø125 | Ø125 | Ø125 |
| Concrete Slump (mm) | 160–220 | |||
| Container Size (Integral) (mm) | 4500 × 2100 × 2300 | |||
| Container Size (Split) (mm) | 5600 × 2100 × 2300 | |||
| Total Weight (kg) | 5200 | 5300 | 5400 | 5500 |
| Mixer Model (L) | 450 | 450 | 450 | 450 |
| Shipping | 20ft Container | 20ft Container | 20ft Container | 20ft Container |
Electric Concrete Mixer Pump
| Item | Unit | Parameters (JBS40-10-45) |
|---|---|---|
| Max. Theoretical Concrete Output | m³/h | 40 |
| Feeding Capacity (Mixer) | L | 500 |
| Discharging Capacity (Mixer) | L | 450 |
| Max. Concrete Pumping Pressure | MPa | 10 |
| Distribution Valve Type | – | S Tube Valve |
| Concrete Cylinder (Diameter × Stroke) | mm | Ø180 × 1000 |
| Hopper Capacity | L | 550 |
| Outlet Diameter | mm | Ø150 |
| Power System | ||
| Winding Motor Power | kW | 5.5 |
| Mixing Motor Power | kW | 4.5 |
| Water Pump Motor Power | kW | 0.55 |
| Total Rated Power | kW | 45 |
| Rated Speed | r/min | 1480 |
| Hydraulic System | ||
| Circuit Type | – | Open Loop System |
| Pumping System Pressure | MPa | 28 |
| Mixing System Pressure | MPa | 6–8 |
| Hydraulic Oil Tank Capacity | L | 370 |
| Max. Delivery Distance (Vertical / Horizontal) | m | 120 / 500 |
| Other Parameters | ||
| Max. Aggregate Size | mm | Stone: 40–50 |
| Concrete Delivery Pipe Diameter | mm | Ø125 |
| Overall Dimensions (L × W × H) | mm | 4200 × 2300 × 3150 |
| Total Weight | kg | 4500 |

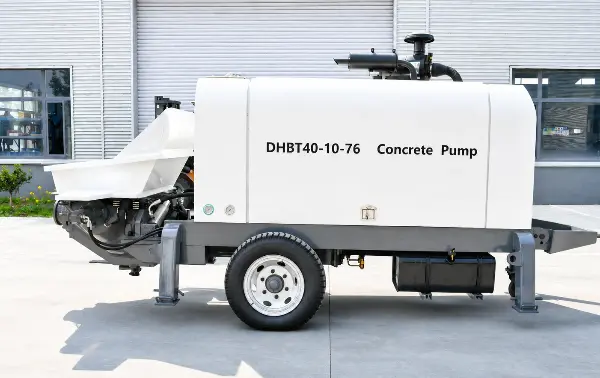

Trailer Concrete Pump
| Model | DHBT30.08.55 | DHBT30.10.55 | DHBT40.10.76 | DHBT50.11.82 | DHBT60.11.93 | DHBT60.13.129 | DHBT80.13.176 | DHBT80.16.176 |
|---|---|---|---|---|---|---|---|---|
| Main Oil Pump | Jinda 80 Plunger Pump | Kawasaki 112 | Kawasaki 112 | Kawasaki 140 | Kawasaki 140 | Kawasaki 224 | Kawasaki 112 | Kawasaki 280 |
| Concrete Cylinder (mm) | 180×600 | 160×1000 | 180×1000 | 180×1000 | 180×1300 | 200×1650 | 200×1650 | 200×1650 |
| Hydraulic Cylinder (mm) | 90×600 | 90×1000 | 100×1000 | 100×1000 | 100×1300 | 125×1650 | 125×1650 | 140×1650 |
| PLC / Electrical | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens |
| Hydraulic Hose | Zhongmei | Manuli | Manuli | Manuli | Manuli | Manuli | Manuli | Manuli |
| Discharge Capacity (m³/h) | 30 | 30 | 35 | 40 | 60 | 60 | 80 | 80 |
| Conveying Distance (V/H m) | 50 / 150 | 50 / 200 | 50 / 200 | 50 / 200 | 80 / 300 | 100 / 350 | 120 / 450 | 120 / 450 |
| Max. Pressure (MPa) | 8 | 10 | 10 | 11 | 11 | 13 | 13 | 16 |
| Rated Speed (rpm) | 2200 | 1800 | 1800 | 2200 | 2400 | 2200 | 2200 | 2200 |
| Max. Aggregate (mm) | 35 | 25 | 35 | 35 | 35 | 40 | 40 | 40 |
| Hopper Volume (m³) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.80 | 0.50 | 0.80 |
| Feeding Height (mm) | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Pipe Diameter (mm) | 100 / 125 | 100 / 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Concrete Slump (mm) | 160–220 | |||||||
| Dimensions (mm) | 3800×1750×1750 | 4000×1700×1950 | 4600×1700×1950 | 4600×1700×1950 | 5300×1750×2200 | 6300×2100×2300 | 5200×2100×2300 | 6300×2100×2500 |
| Weight (kg) | 2300 | 2800 | 3000 | 3200 | 3600 | 5800 | 6000 | 6300 |
| Engine | Weifang Huadong 55 kW | Yuchai 78 kW | Yuchai 78 kW | Yuchai 78 kW | Yuchai 93 kW | Weichai 129 kW | Weichai 176 kW | Weichai 176 kW |
Electric Trailer Concrete Pump
| Model | Max. Output (m³/h) | Max. Pressure (MPa) | Motor Power (kW) | Hydraulic Pump | Pipe Diameter | Max. Aggregate (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HB40-13 | 40 | 13 | 45 | K3V112 | Φ80 | 30 | 2,800 |
| HB50-11 | 50 | 11 | 55 | K3V140 | Φ80 / Φ100 | 30 | 3,100 |
| HB50-11S | 50 | 11 | 55 | K3V140 | Φ80 / Φ100 / Φ125 | 30 | 3,100 |
| HB50-13 | 50 | 13 | 55 | K3V140 | Φ80 / Φ100 | 30 | 3,100 |
| HB60-13 | 60 | 13 | 90 | K3V112DT | Φ100 / Φ125 | 40 | 5,800 |
| HB80-13 | 80 | 13 | 110 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,300 |
| HB80-16 | 80 | 16 | 110 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,400 |
| HB80-18 | 80 | 18 | 132 | K3V140D / Rexroth 260 | Φ125 | 40 | 6,500 |
Project Cases
Jamaica – Housing Project
A diesel concrete mixer pump was used for residential building construction, significantly improving pouring speed and reducing labor cost.
Kenya – Road & Infrastructure Projects
A trailer concrete pump was used for road and infrastructure construction in Kenya, delivering stable concrete pumping over long distances.
FAQ
Concrete pump prices depend on pumping capacity, power type, configuration and shipping destination. Contact us with your requirements to receive a detailed quotation.
Our concrete pump product range includes models with pumping capacities from approximately 30 to 90 m³/h. Actual capacity depends on the selected model and operating conditions.
Diesel concrete pumps use a diesel engine as their power source and are suitable for sites without convenient electricity access. Electric concrete pumps use an electric motor and are suitable for locations with a reliable power supply.
A trailer concrete pump is a stationary pumping unit mounted on a trailer chassis. It delivers concrete through pipelines and can be transported between construction sites.
The pumping distance depends on the pump model, concrete mix, pipeline diameter, pipeline layout and site conditions. Please provide your required horizontal or vertical delivery distance so we can recommend a suitable model.
Please contact our sales team for spare parts availability, technical documentation and after-sales support arrangements for your selected model.
