Overview
Reliable Concrete Mixing Solution for Construction Projects

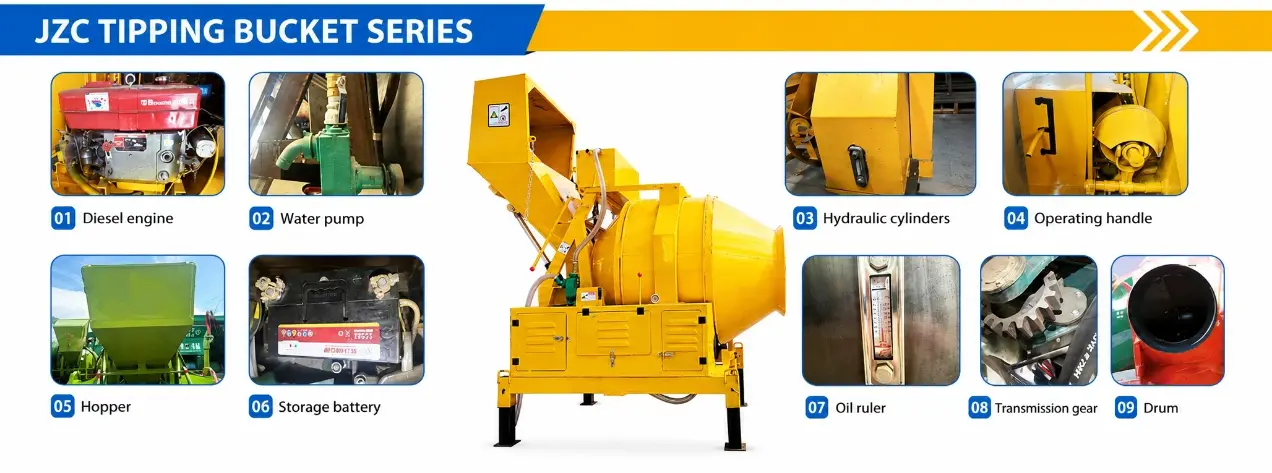

The JZC Tipping Bucket Concrete Mixer is a practical and efficient concrete mixing machine designed for construction projects that require reliable concrete production, flexible operation, and easy material loading.
Featuring a tipping bucket feeding system, the JZC series makes aggregate loading more convenient and helps improve the efficiency of concrete mixing operations. It is suitable for construction sites, roads, bridges, buildings, rural infrastructure, and other projects requiring on-site concrete production.
Why Choose Us
The tipping bucket system allows aggregates to be loaded efficiently into the mixing drum. Compared with manual feeding methods, it can reduce labor requirements and improve material handling efficiency.
The mixing drum is designed to provide thorough and consistent mixing of cement, aggregates, water, and other concrete materials, helping produce uniform concrete for different construction applications.
The JZC concrete mixer features a practical operating structure that is easy for operators to understand and use. Its straightforward design makes it suitable for construction contractors and small- to medium-scale concrete projects.
With its compact and practical design, the JZC mixer can be used directly at construction sites. Contractors can produce concrete according to project requirements without relying entirely on ready-mixed concrete suppliers.
Application
Suitable for Various Construction Projects
The JZC Tipping Bucket Concrete Mixer is suitable for projects where concrete needs to be produced close to the construction site.
Typical applications include:
Building Construction
Produce concrete for foundations, columns, floors, walls, and other structural work.
Road Construction
Suitable for concrete used in road paving, sidewalks, drainage systems, and other infrastructure projects.
Bridge & Infrastructure Projects
Provides flexible concrete mixing for construction and repair work.
Small and Medium-Sized Projects
A practical option for contractors who need an independent concrete mixing solution without installing a large batching plant.
Working Principle
The JZC Tipping Bucket Concrete Mixer uses a tipping bucket for aggregate loading. Aggregates are loaded into the bucket and lifted into the feeding position before entering the mixing drum.
After the required materials are added, the mixing drum rotates to thoroughly mix the aggregate, cement, and water. The finished concrete can then be discharged for use at the construction site.
This working process provides a practical solution for projects where on-site concrete mixing, flexible material feeding, and simple operation are important.
Parameter
| Model | JZC300 | JZC350 | JZC500 | JZC750 |
|---|---|---|---|---|
| Discharge Capacity (L) | 300 | 350 | 500 | 750 |
| Feed Capacity (L) | 480 | 560 | 800 | 1200 |
| Productivity (m³/h) | 9–11 | 10–14 | 15–20 | 20–25 |
| Diesel Engine Power (kW) | 8.4 | 11 | 13.2 | 14.5 |
| Water Pump Power (kW) | 0.55–0.75 | 0.55 | 0.55–0.75 | 0.55 |
| Water Supply Accuracy | Error ≤ 2% | Error ≤ 2% | Error ≤ 2% | Error ≤ 2% |
| Mixer Drum Speed (r/min) | 14 | 14 | 14 | 14 |
| Maximum Drag Speed (km/h) | 10–15 | 10–15 | 10–15 | 10–15 |
| Dimensions (m) | 2.3 × 1.95 × 2.22 | 2.4 × 2.05 × 2.35 | 2.5 × 2.05 × 2.35 | 2.9 × 2.05 × 2.35 |
| Machine Weight (kg) | 1,300 | 1,430 | 1,480 | 1,950 |
JZC Tipping Bucket Concrete Mixer vs. Ordinary Concrete Mixer
| Feature | JZC Tipping Bucket Concrete Mixer | Ordinary Manual Feeding Mixer |
|---|---|---|
| Aggregate Feeding | Tipping bucket | Mainly manual |
| Labor Requirement | Lower | Higher |
| Material Loading | More convenient | More labor-intensive |
| On-Site Production | Yes | Yes |
| Operation | Simple | Simple |
| Construction Flexibility | High | Moderate |
The tipping bucket design makes the JZC series particularly suitable for contractors looking for a more convenient aggregate feeding solution while maintaining a practical and cost-effective concrete mixing process.
Benefits for Contractors
Choosing a JZC Tipping Bucket Concrete Mixer can help contractors:
- Reduce manual aggregate handling
- Improve concrete mixing efficiency
- Produce concrete directly on site
- Reduce dependence on ready-mixed concrete suppliers
- Adapt to different construction environments
- Improve flexibility for small and medium projects
- Simplify concrete production operations
Project Cases
JZC Concrete Mixer in Ghana
A construction contractor in Ghana selected a JZC Tipping Bucket Concrete Mixer for local building and infrastructure projects. The tipping bucket feeding system improved aggregate loading efficiency and allowed the contractor to produce concrete conveniently at the construction site.
JZC Concrete Mixer in Nigeria
A construction contractor in Nigeria chose a JZC Tipping Bucket Concrete Mixer for on-site concrete production. With efficient tipping bucket feeding and reliable mixing performance, the mixer provides a practical solution for local building and infrastructure projects.
FAQ
The JZC series includes JZC300, JZC350, JZC500, and JZC750, with productivity ranging from approximately 9 to 25 m³/h.
Yes. The JZC mixer features a practical design and straightforward operation, making it suitable for contractors who need a reliable and easy-to-use concrete mixing solution.
The right model depends on your required concrete output, project size, working conditions, and transportation requirements. JZC300 and JZC350 are suitable for smaller projects, while JZC500 and JZC750 offer higher production capacity.
Yes. Contact us with your required capacity, project location, and quantity, and our team can recommend a suitable JZC model and provide a quotation.
