Overview
Compact Concrete Mixing Solution for Small Construction Projects

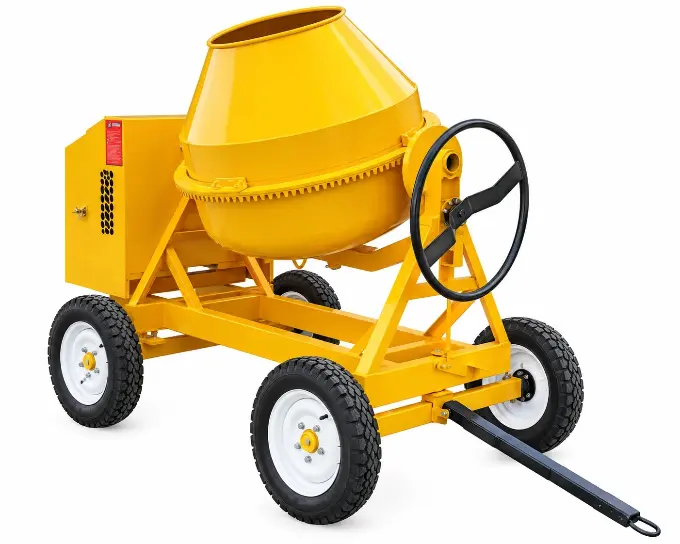

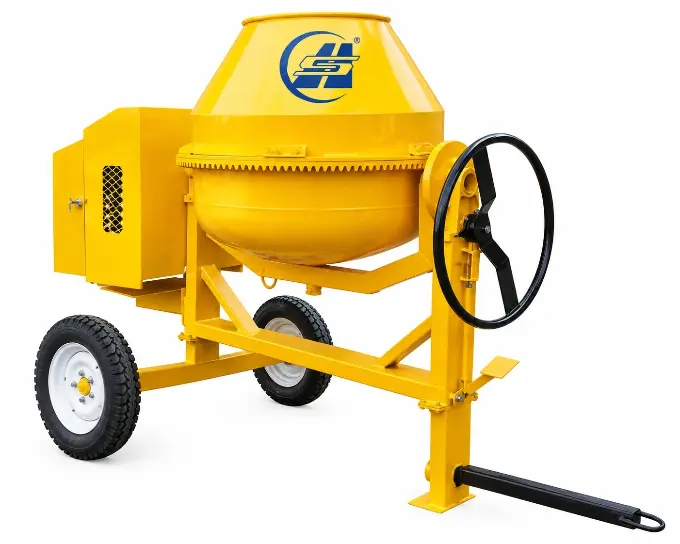

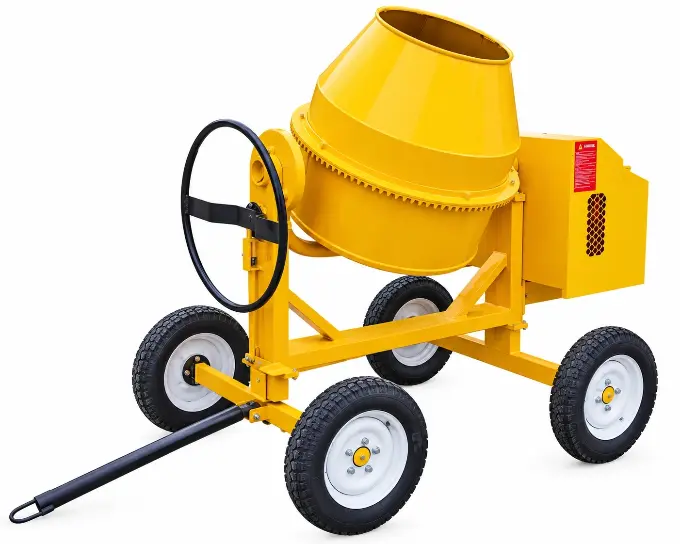

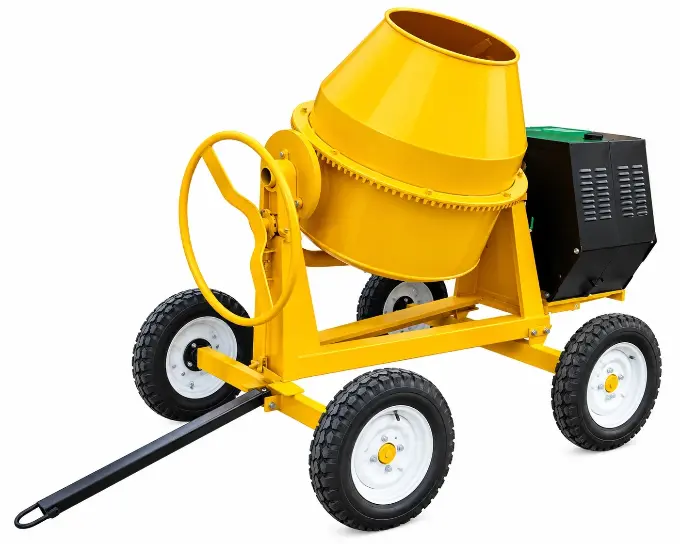

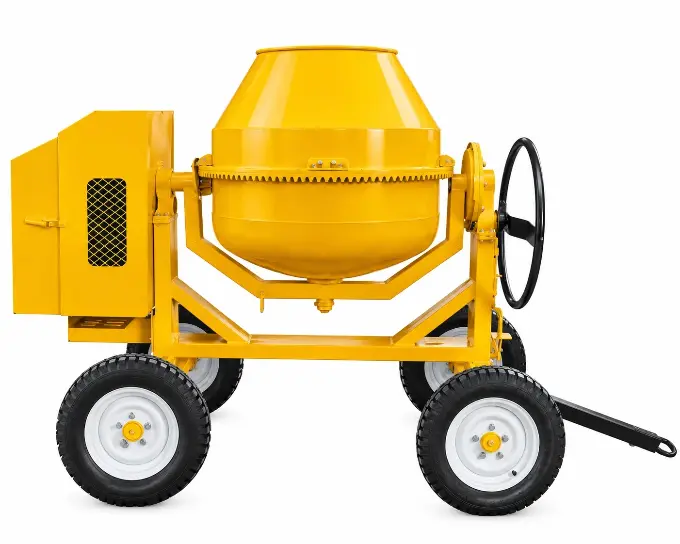

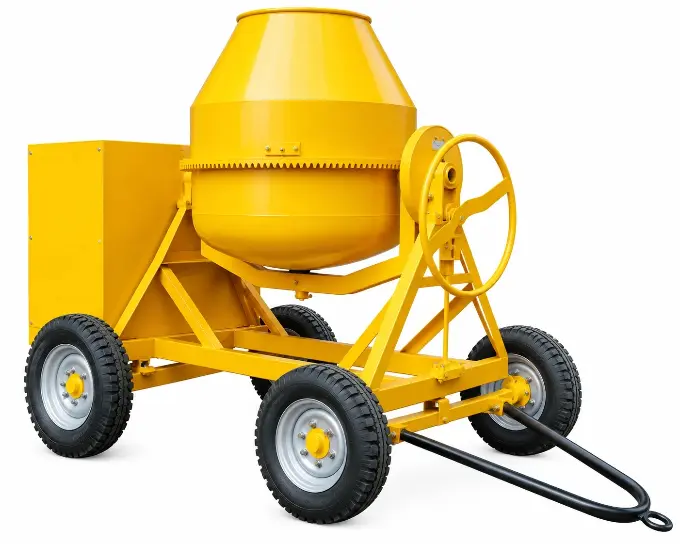

Mini Concrete Mixer is a compact and easy-to-operate concrete mixing machine designed for small construction projects, repair work, residential building, farm construction, and other applications where flexible concrete production is required.
With a compact structure, easy transportation, and simple operation, it is a practical choice for contractors looking for a small concrete mixer for sale.
Mini Concrete Mixer for Small Construction Projects
A mini concrete mixer is ideal when a full-size concrete batching plant is unnecessary.
It can be used for producing concrete directly at or near the construction site, reducing the need to transport ready-mixed concrete over short distances.
Why Choose Us
The compact design makes the mixer easier to move between different job sites. It is suitable for contractors working on multiple small projects.
The machine is designed with a straightforward operating system, allowing workers to start mixing concrete with minimal training.
The mixing system provides consistent mixing performance for common construction concrete applications.
Depending on the project and local power conditions, the mini concrete mixer can be configured with an electric motor or diesel engine.
Key Benefits
- Compact size for easy transportation
- Suitable for small construction projects
- Simple and easy operation
- Fast concrete mixing
- Low investment and operating cost
- Flexible for different job sites
- Available with electric motor or diesel engine options
- Easy maintenance and cleaning
Application
- Small commercial construction
- Residential construction
- House and building projects
- Road and pavement repair
- Farm and agricultural construction
- Small foundations
- Concrete floors
- Fence and post installation
- Renovation and repair projects
Residential Construction
Suitable for concrete mixing for houses, extensions, foundations, floors, and other residential projects.
Road & Repair Projects
A mini mixer can be transported to small road, sidewalk, drainage, and repair sites where concrete is needed in relatively small quantities.
Farm Construction
It can be used for agricultural buildings, livestock facilities, farm roads, foundations, and other rural construction projects.
Renovation Projects
For renovation and maintenance work, a compact concrete mixer provides flexible on-site concrete production without requiring a large mixing plant.

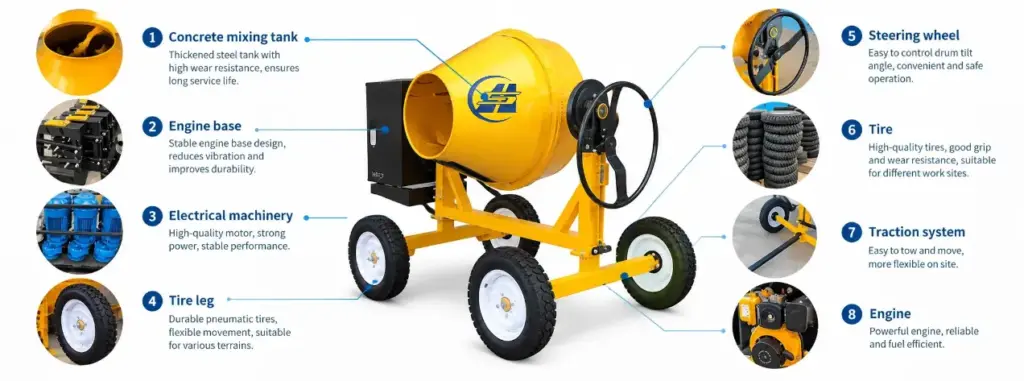

Working Principle
1. Material Loading
Add cement, sand, aggregates, and water into the mixing drum according to the required concrete mix.
2. Drum Rotation
The engine drives the drum to rotate, while the internal blades continuously mix and tumble the materials.
3. Uniform Mixing
Continuous rotation combines the materials to produce a consistent concrete mixture.
4. Concrete Discharge
After mixing, the finished concrete is discharged from the drum for immediate use.
Mini Concrete Mixer vs. Concrete Batching Plant
| Feature | Mini Concrete Mixer | Concrete Batching Plant |
|---|---|---|
| Project Size | Small projects | Medium & large projects |
| Investment | Lower | Higher |
| Installation | Simple | More complex |
| Mobility | Easy | Relatively fixed |
| Operation | Simple | More systems to operate |
| Concrete Production | Small quantity | Large quantity |
| Best For | Small & flexible jobs | Continuous large-scale production |
If your project requires a large and continuous supply of concrete, a concrete batching plant may be more suitable.
Parameter
| Model | SW350-2C/4C | SW400-2C/4C | SW500-2C/4C | SW700-4C | SW500-DHT | SW-A2-510 |
|---|---|---|---|---|---|---|
| Drum Capacity | 350 L | 400 L | 500 L | 700 L | 500 L | 510 L |
| Mixing Capacity | 280 L | 320 L | 400 L | 560 L | 400 L | 350 L |
| Productivity | 4 m³/h | 6 m³/h | 8 m³/h | 10 m³/h | 8–10 m³/h | 12 m³/h |
| Bags of Cement | 1 bag (50 kg/bag) | 1 bag (50 kg/bag) | 1.5 bags (50 kg/bag) | 2 bags (50 kg/bag) | 1.5 bags (50 kg/bag) | 1.5 bags (50 kg/bag) |
| Drum Size | 800 × 900 mm | 800 × 900 mm | 950 × 900 mm | 950 × 1050 mm | 950 × 900 mm | 950 × 900 mm |
| Tyre Size | 4.00-12 | 4.00-12 | 4.00-12 | 4.00-12 | 4.00-12 | 4.00-12 |
| Engine Power | 6 HP | 6 HP | 6 HP or 10 HP | 10 HP | 10 HP | 10 HP |
| Weight | 260/280 kg | 290/310 kg | 310/330 kg | 480 kg | 700 kg | 1700 kg |
Specifications can be customized according to project requirements. Contact us for the latest technical specifications.
How to Choose a Mini Concrete Mixer?
Before purchasing a mini concrete mixer, consider:
1. Required concrete output
Choose the mixer according to the amount of concrete required per batch and per day.
2. Power availability
Electric models are suitable where reliable electricity is available. Diesel models can provide greater flexibility for remote construction sites.
3. Job-site conditions
Consider transportation distance, site accessibility, and available working space.
4. Concrete application
Different construction projects may require different mixing capacities and configurations.
Our team can recommend a suitable configuration based on your project requirements.

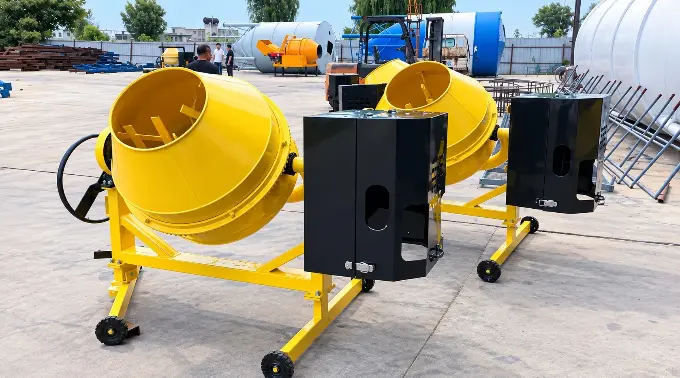

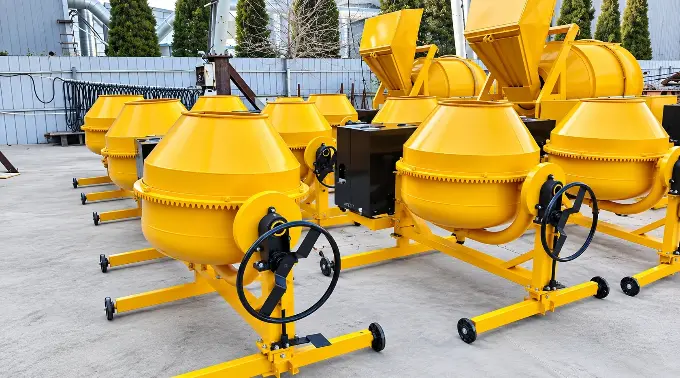

Project Cases
Mini Concrete Mixer in Nigeria
A Nigerian contractor purchased a Shanghe Mini Concrete Mixer for residential construction and small concrete projects. The compact design makes it easy to transport between job sites, while the simple operation allows the contractor to prepare concrete directly at the construction site.
Mini Concrete Mixer in Ghana
A contractor in Ghana selected a Shanghe Mini Concrete Mixer for small and medium construction projects. The machine provides a practical solution for contractors who need to produce concrete on site without investing in a complete batching plant.
FAQ
It can be used for houses, foundations, floors, road repairs, farm construction, renovation, and other small construction projects.
Depending on the model and working conditions, electric motor and diesel engine configurations can be available.
Yes. We supply concrete mixing equipment for overseas construction projects. Contact us with your destination country and project requirements for a suitable configuration.
Send us your required capacity, application, power type, and destination country. We will provide the appropriate model and quotation.
