Overview
Reliable Electric Concrete Mixer for Construction Projects

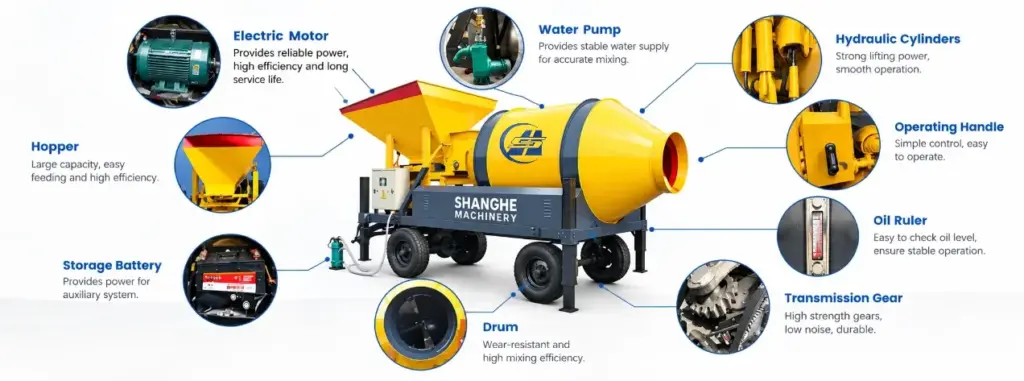

JZM Electric Concrete Mixer is a practical drum-type concrete mixer designed for small and medium construction projects. Powered by an electric motor, it provides efficient and stable concrete mixing with simple operation and easy maintenance.
Available in different models and mixing capacities, the JZM series is suitable for building construction, road projects, farm construction, house construction and other projects where a reliable on-site concrete mixer is required.
Why Choose Us
The JZM concrete mixer is powered by an electric motor, providing stable mixing performance and convenient operation where reliable electricity is available.
The rotating mixing drum helps combine cement, aggregates, sand and water into uniform concrete for different construction applications.
The tilting drum allows concrete to be discharged conveniently and helps improve loading and unloading efficiency on the construction site.
The machine uses a practical mechanical structure with accessible components, making routine inspection and maintenance easier.
The straightforward operating system makes the mixer easy to operate, even for small construction teams with limited equipment experience.
Different JZM models are available to meet the requirements of residential construction, commercial projects and general concrete production.
JZC Concrete Mixer Features
1. Stable Electric Power
The electric drive system provides consistent power for concrete mixing and is suitable for construction sites with access to electricity.
2. Compact Structure
The compact design makes the JZM mixer suitable for construction sites where installation space is limited.
3. Easy Transportation
Its practical structure makes the machine convenient to move between different working areas.
4. Lower Operating Complexity
Compared with more complicated concrete production equipment, the JZM mixer has a relatively simple operating structure.
5. Suitable for Small & Medium Projects
JZM mixers are particularly suitable when a project needs on-site concrete production without installing a complete batching plant.
Application
The JZM series can be used for a wide range of construction projects, including:
- General on-site concrete production
- Residential building construction
- House and villa construction
- Road and bridge projects
- Farm and agricultural construction
- Foundation construction
- Small commercial projects
- Concrete repair projects
Working Principle
The JZM concrete mixer is designed for straightforward on-site concrete production:
1. Loading
Add cement, sand, aggregates and water into the mixing drum according to the required concrete mix.
2. Mixing
The electric motor drives the drum to rotate and thoroughly mix the materials.
3. Concrete Production
Continuous drum rotation helps produce a consistent concrete mixture.
4. Discharging
Tilt the drum to discharge the finished concrete into a wheelbarrow, hopper or other receiving equipment.
JZM Concrete Mixer vs. Concrete Batching Plant
| Feature | JZM Concrete Mixer | Concrete Batching Plant |
|---|---|---|
| Application | Small & medium projects | Medium & large projects |
| Installation | Simple | More complex |
| Initial Investment | Lower | Higher |
| Mobility | Easier to relocate | Usually fixed or semi-fixed |
| Concrete Production | On-site mixing | Continuous or centralized production |
| Space Requirement | Relatively small | Larger |
Need help choosing the right concrete equipment? Contact our engineers for a suitable solution.
JZM Electric Concrete Mixer for Different Markets
Shanghe Machinery supplies concrete mixing equipment for construction projects in different regions, including Africa, Southeast Asia, the Middle East, Central Asia, Oceania and Latin America.
Depending on local electricity conditions, project size and required concrete output, our team can recommend a suitable JZM model and configuration.
Parameter
| Model Specification | JZM350 | JZM400 | JZM500 | JZM750 | JZM1000 |
|---|---|---|---|---|---|
| Discharge Capacity (L) | 350 | 400 | 500 | 750 | 1000 |
| Feed Capacity (L) | 560 | 640 | 800 | 1200 | 1600 |
| Productivity (m³/h) | 10–14 | 12–16 | 15–20 | 25–30 | 30–35 |
| Stirring Motor Power (kW) | 5.5 | 5.5–7.5 | 7.5–11 | 11–15 | 11–15 |
| Lifting Motor Power (kW) | 4.5 | 4.5 | 5.5 | 5.5 × 2 | 7.5 × 2 |
| Water Pump Power (kW) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 |
| Water Supply Accuracy | Error ≤ 2% | Error ≤ 2% | Error ≤ 2% | Error ≤ 2% | Error ≤ 2% |
| Maximum Aggregate Particle Size (mm) | 40–60 | 40–60 | 60/80 (Gravel/Pebble) | 60/80 (Gravel/Pebble) | 60/80 (Gravel/Pebble) |
| Maximum Towing Speed | 10–15 | 10–15 | 10–15 | 10–15 | 10–15 |
| Dimensions (m) | 2.76 × 2.17 × 3.00 | 2.94 × 2.24 × 2.88 | 3.32 × 2.46 × 3.60 | 3.80 × 2.10 × 3.70 | 3.80 × 2.10 × 3.70 |
| Machine Weight (kg) | 1,300 | 1,350 | 1,400 | 2,500 | 3,000 |
Specifications can be customized according to project requirements. Contact us for the latest technical specifications.
Project Cases
JZC Concrete Mixer in Ghana
A construction contractor in Ghana selected a JZC Tipping Bucket Concrete Mixer for local building and infrastructure projects. The tipping bucket feeding system improved aggregate loading efficiency and allowed the contractor to produce concrete conveniently at the construction site.
JZC Concrete Mixer in Nigeria
A construction contractor in Nigeria chose a JZC Tipping Bucket Concrete Mixer for on-site concrete production. With efficient tipping bucket feeding and reliable mixing performance, the mixer provides a practical solution for local building and infrastructure projects.
FAQ
Both are drum-type concrete mixers, but their drum and discharge designs differ. The appropriate model depends on the required capacity, project conditions and preferred discharge method.
The appropriate capacity depends on your required concrete output, project size and available power supply. Contact our engineers with your project details and we can recommend a suitable model.
Yes. JZM mixers can be used for house construction, foundations, roads, farms and other small and medium construction projects.
Yes. Spare parts and technical support can be provided according to the mixer model and configuration.
